Cavity protection, general - GF98.00-P-2045A
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL ALL
Corrosion influences act on the body cavities in the form of condensation and other forms of ingressed moisture.
The cavity preservation makes a significant contribution to the long-term corrosion protection of the vehicle body.
The use of strong penetrating (creep behavior), water-repelling and waterproof waxes ensures that the inside areas of the cavities as well as gaps, double plating, folds, flanges, edges and weld seams are uniformly coated.

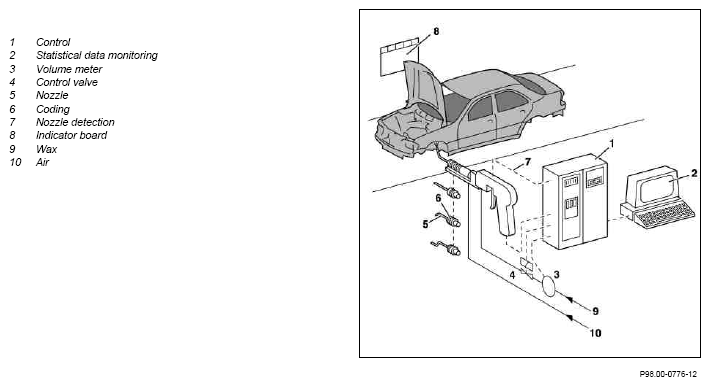

In series production the cavity preservation is conducted after the painting process in an automated spray procedure with corrosion protection wax products.
