Seam sealing following repair, front end damage - AR97.10-P-4000-01EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
- Seal spot welds and rivets in repaired area with seam sealant material.
Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard seals!

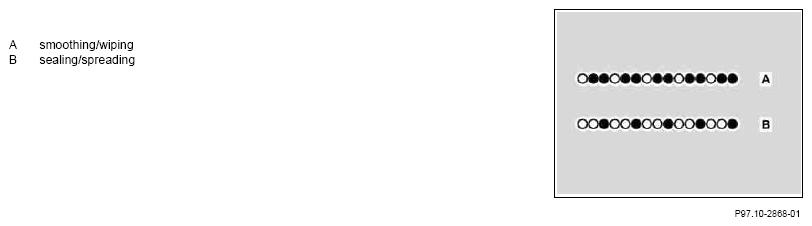

When sealing seams we differentiate between:

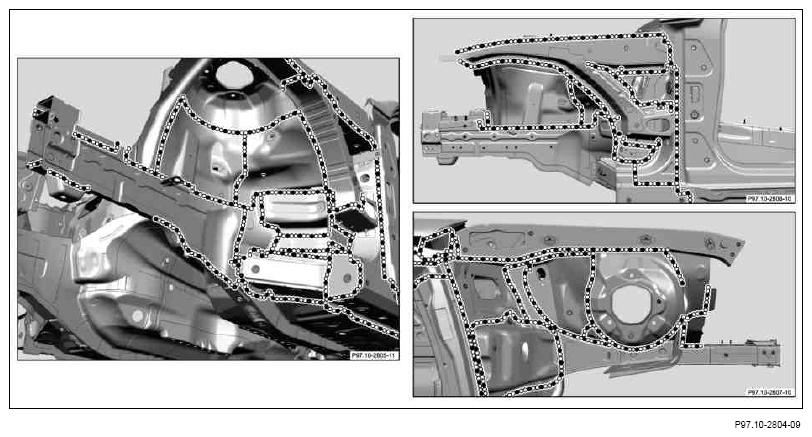

Area of left engine compartment, wheel well and longitudinal member
