Wiring diagram, front central operating unit - PE82.00-P-2060-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

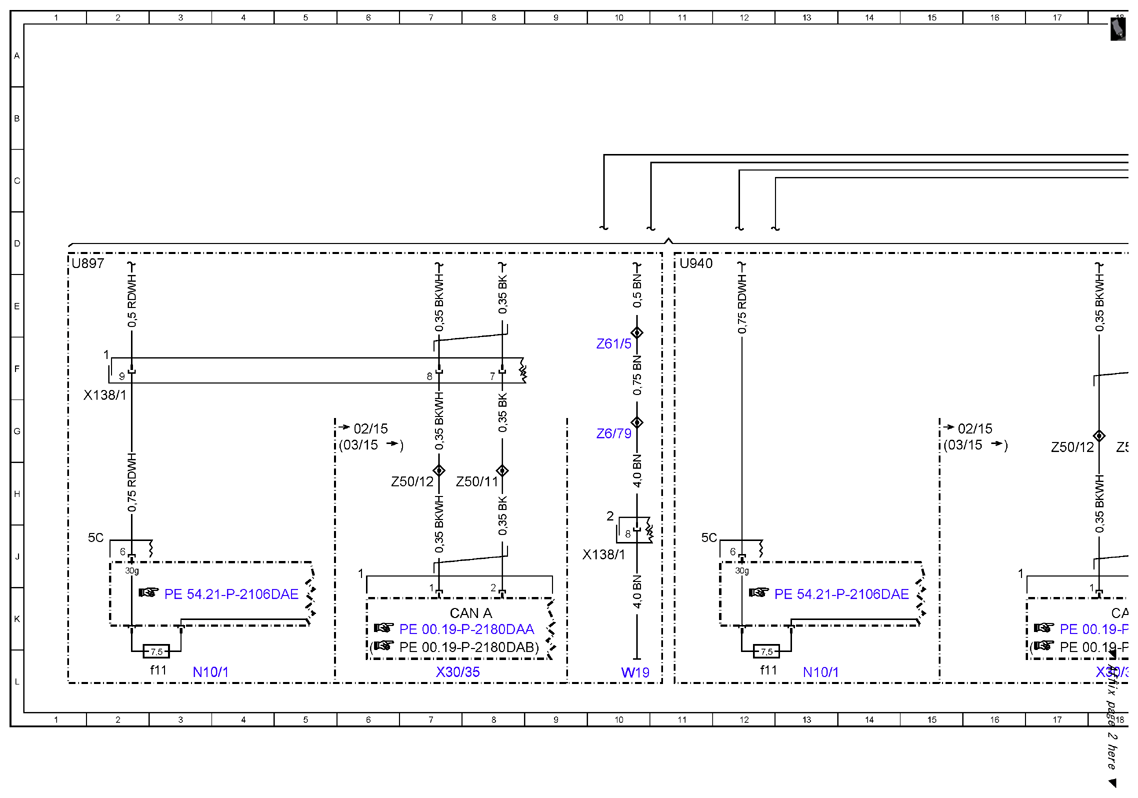

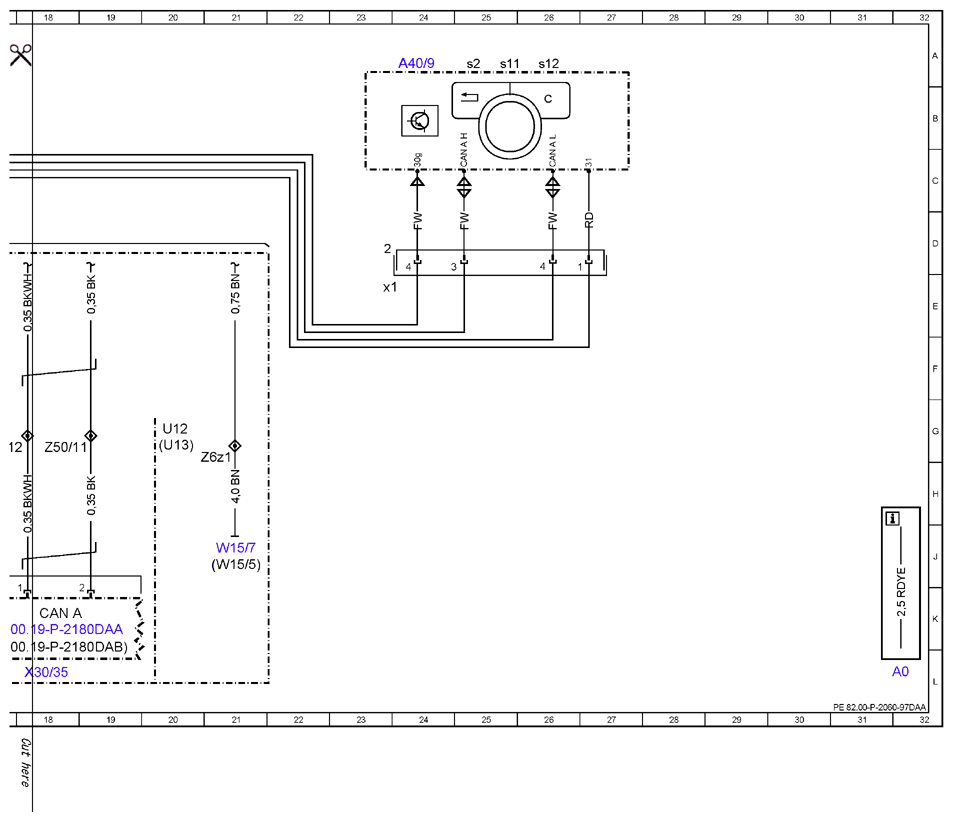

MODEL 212 Control unit A40/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A40/9 | Audio/COMAND control panel | 24A |
| A40/9s11 | Audio/COMAND controller | 25A |
| A40/9s12 | "Delete" button | 26A |
| A40/9s2 | "Back" button | 25A |
| A40/9x1 | Audio/COMAND control panel electrical connector | 23E |
| CAN A | Telematics CAN | 8K |
| CAN A | Telematics CAN | 18K |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1 | Front SAM control unit with fuse and relay module | 13L |
| N10/1f11 | Fuse 11 | 3L |
| N10/1f11 | Fuse 11 | 12L |
| U12 | Valid for left-hand drive vehicles | 20G |
| U13 | Valid for right-hand drive vehicles | 20G |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 1D |
| U940 | Valid without DIRECT SELECT | 11D |
| W15/5 | Left front footwell ground point | 21J |
| W15/7 | Right front footwell ground point | 21J |
| W19 | Right front seat crossmember ground point | 10L |
| X138/1 | Front center console electrical connector | 2F |
| X138/1 | Front center console electrical connector | 10J |
| X30/35 | Telematics CAN voltage distributor electrical connector | 7L |
| X30/35 | Telematics CAN voltage distributor electrical connector | 18L |
| Z50/11 | CAN bus low cockpit connector sleeve | 8H |
| Z50/11 | CAN bus low cockpit connector sleeve | 18G |
| Z50/12 | CAN bus high cockpit connector sleeve | 7H |
| Z50/12 | CAN bus high cockpit connector sleeve | 17G |
| Z6/79 | Front center console circuit 31 connector sleeve | 10G |
| Z61/5 | Center console wiring harness circuit 31 connector sleeve | 10F |
| Z6z1 | Circuit 31 connector sleeve | 21G |
