Wiring diagram of exterior lights - PE82.10-P-2000-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) as of model year 2014
with CODE 642 (Headlamps, LED, dynamic, right-side traffic) as of model year 2014 E2
| Code: | Designation: | Position: |
|---|---|---|

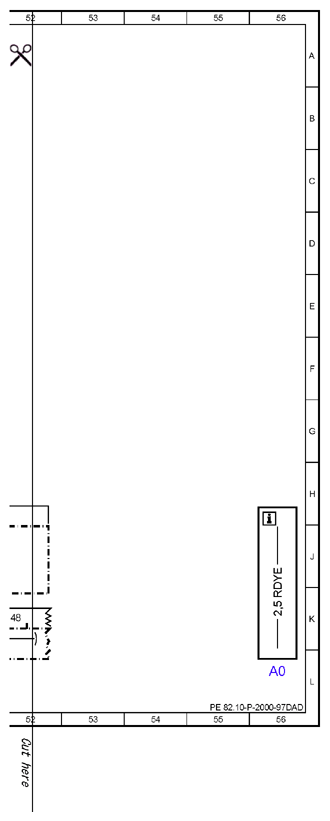

| A0 | Color code key | 56L |
| Code 494 | USA version | 35A |

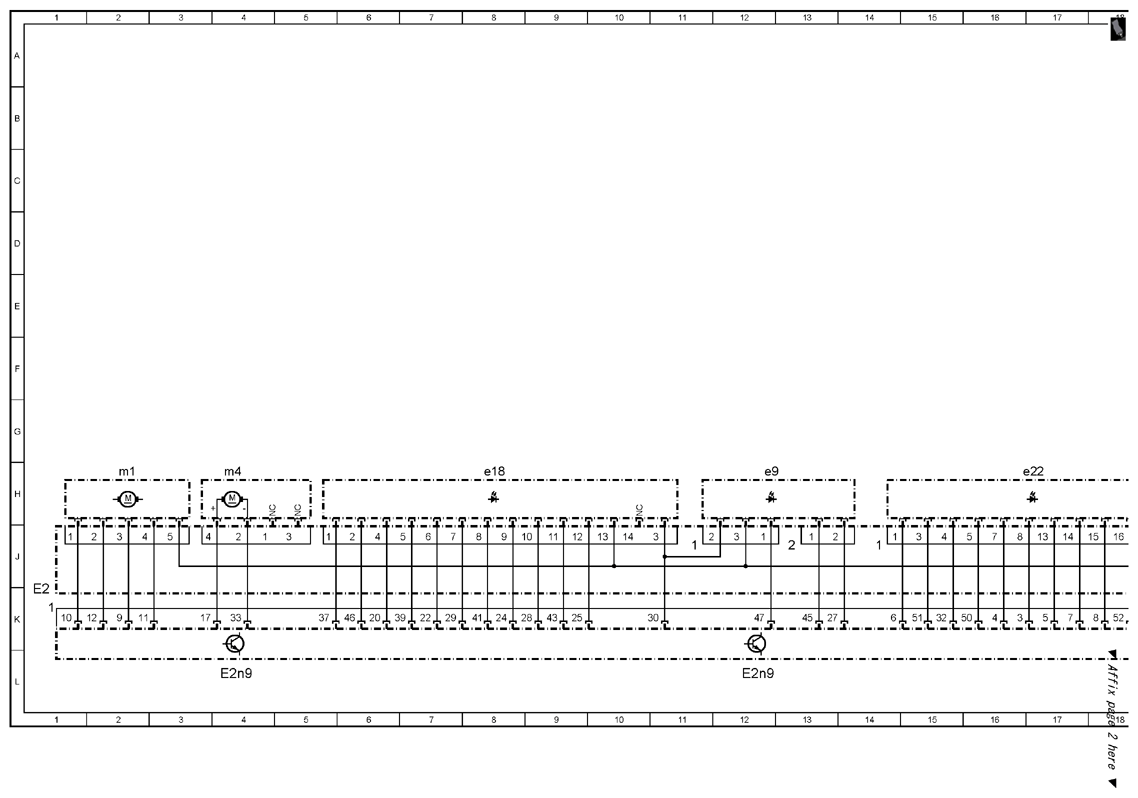

| E2 | Right front lamp unit | 1K |
| E2b1 | Position sensor 1 | 22H |
| E2b2 | Position sensor 2 | 23H |
| E2e18 | Right turn signal light, parking light, side marker light and daytime running light | 8H |
| E2e22 | Right front Vario-LED lamp unit | 17H |
| E2e22 | Right front Vario-LED lamp unit | 24H |
| E2e9 | Right cornering illumination | 12H |
| E2m1 | Right headlamp range adjustment actuator motor | 2H |
| E2m2 | Right active curve illumination actuator motor | 19H |
| E2m3 | Right light distribution actuator motor | 20H |
| E2m4 | Right LED signaling lights actuation module fan motor | 4H |
| E2m5 | Right LED driving lights actuation module fan motor | 28H |
| E2n7 | Actuation module for right front exterior lights LED | 23L |
| E2n7 | Actuation module for right front exterior lights LED | 34L |
| E2n7 | Actuation module for right front exterior lights LED | 43L |
| E2n9 | Right headlamp control unit | 4L |
| E2n9 | Right headlamp control unit | 12L |
| E2n9 | Right headlamp control unit | 45L |
| E2n9 | Right headlamp control unit | 49L |
| E2n9 | Right headlamp control unit | 20L |

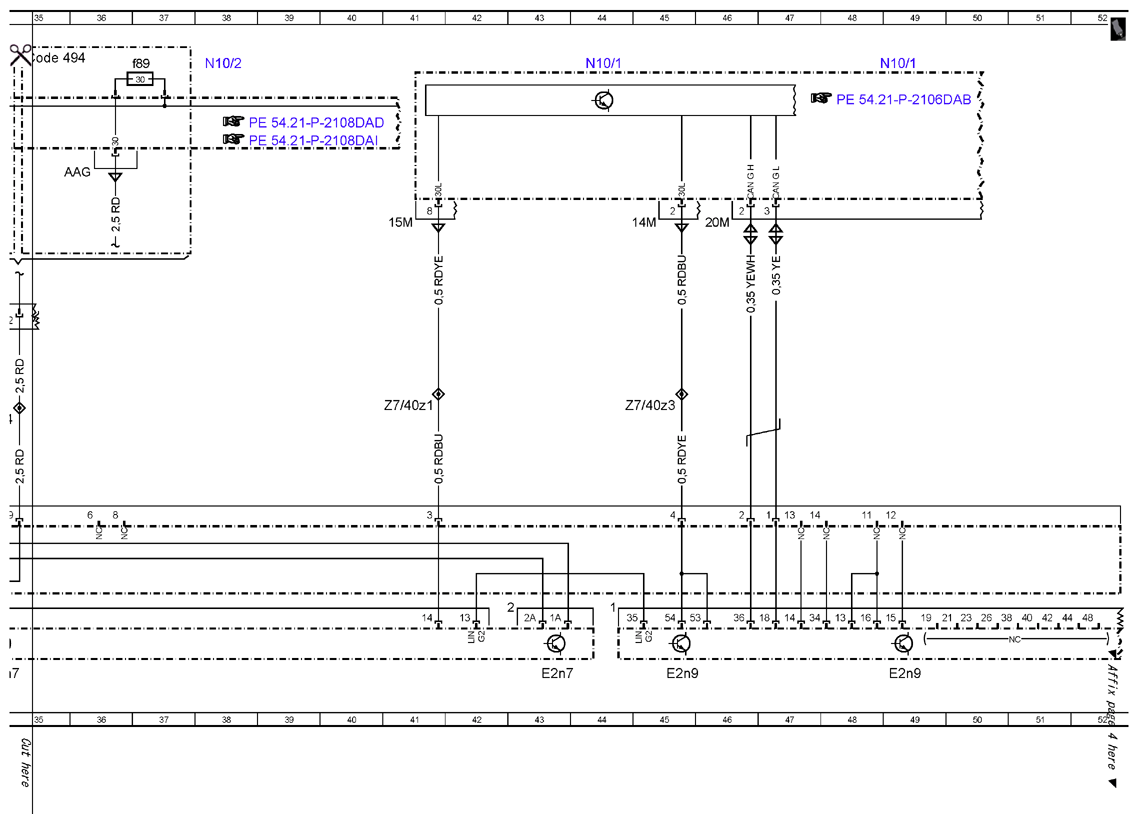

| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 49A |
| N10/2 | Rear SAM control unit with fuse and relay module | 38A |

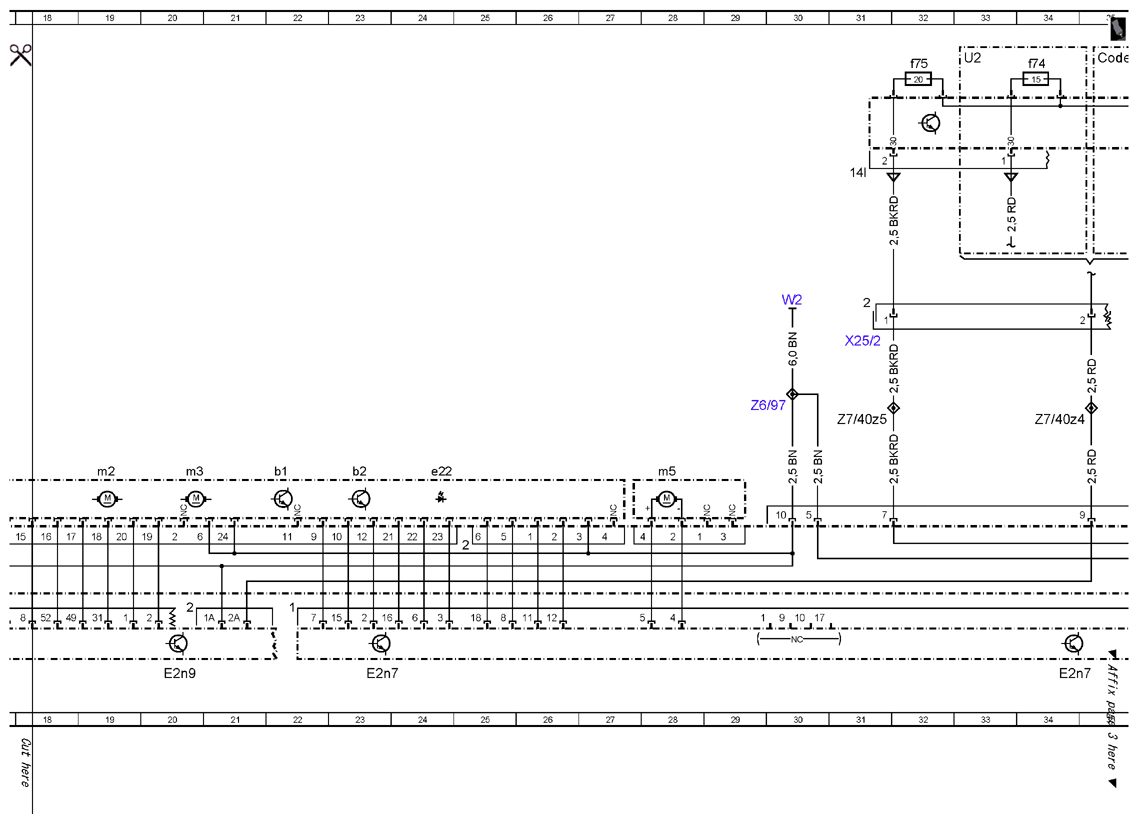

| N10/2f74 | Fuse 74 | 34A |
| N10/2f75 | Fuse 75 | 32A |
| N10/2f89 | Fuse 89 | 37A |
| U2 | Valid for all except USA | 33A |
| W2 | Right front ground point at lamp unit | 30E |
| X25/2 | Engine compartment/interior electrical connector | 31F |
| Z6/97 | Right lamp unit circuit 31 connector sleeve | 30G |
| Z7/40z1 | Tml. 30 connector sleeve | 41G |
| Z7/40z3 | Tml. 30 connector sleeve | 45G |
| Z7/40z4 | Tml. 30 connector sleeve | 34G |
| Z7/40z5 | Tml. 30 connector sleeve | 31G |
