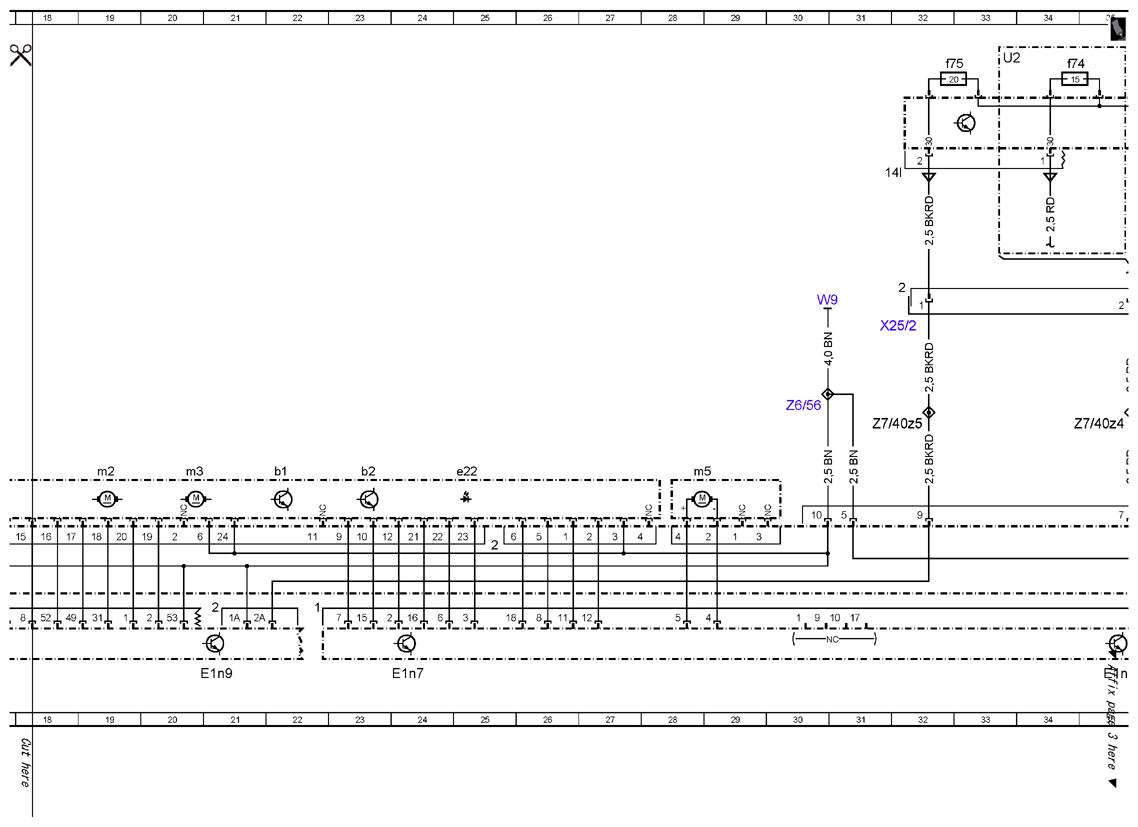

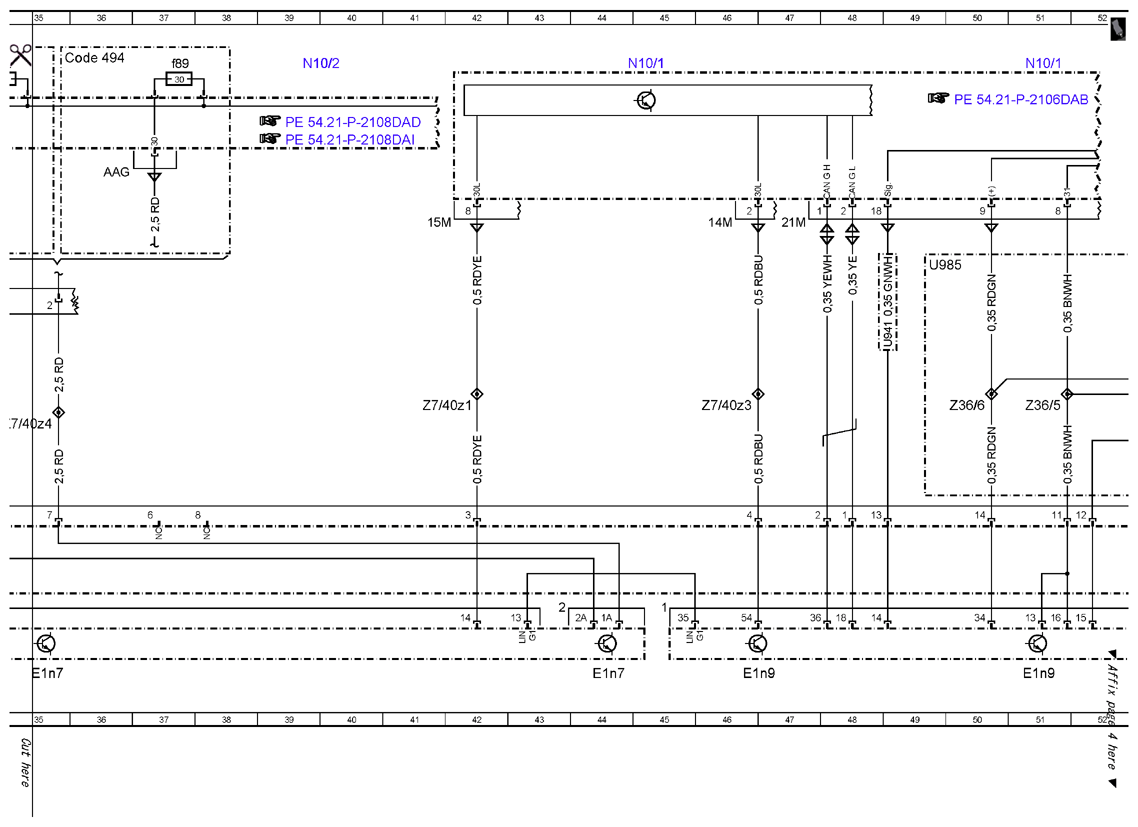

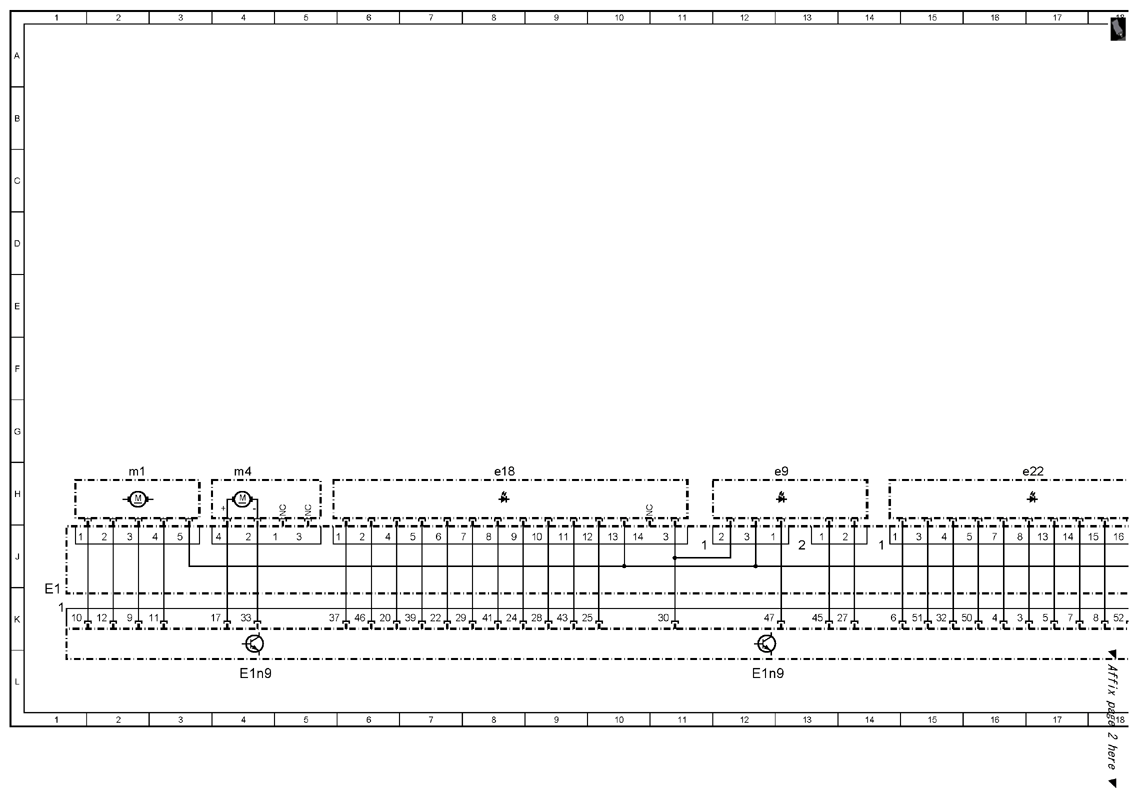

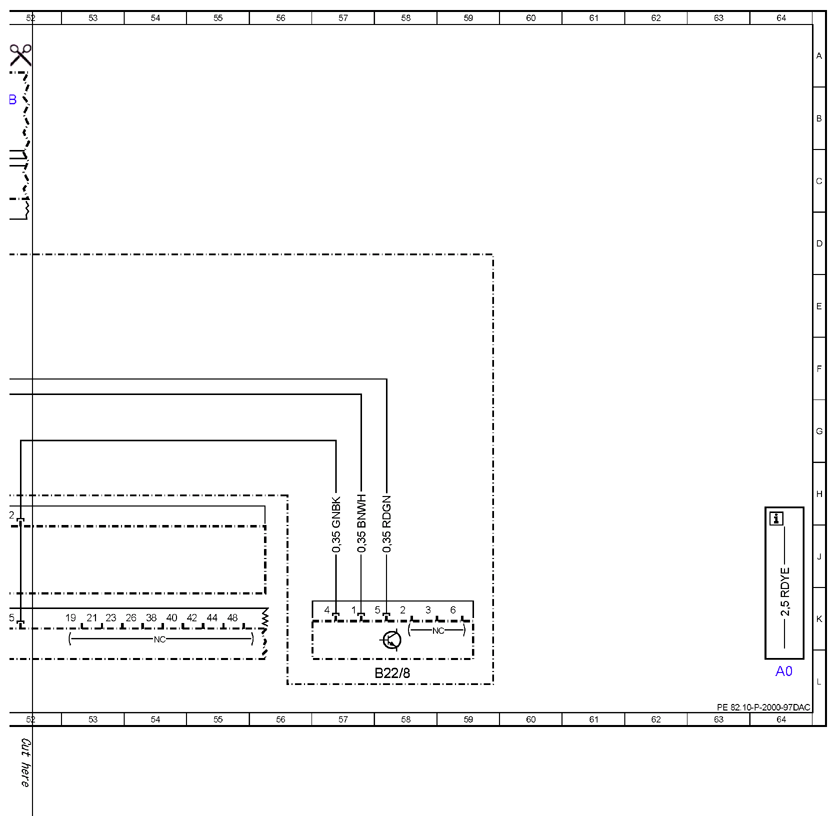

Wiring diagram of exterior lights - PE82.10-P-2000-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) as of model year 2014
with CODE 642 (Headlamps, LED, dynamic, right-side traffic) as of model year 2014 E1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| B22/8 | Left front level sensor | 58L |
| Code 494 | USA version | 35A |
| E1 | Left front lamp unit | 1K |
| E1b1 | Position sensor 1 | 22H |
| E1b2 | Position sensor 2 | 23H |
| E1e18 | Left turn signal light, parking light, side marker light and daytime running light | 8H |
| E1e22 | Left front Vario-LED lamp unit | 17H |
| E1e22 | Left front Vario-LED lamp unit | 25H |
| E1e9 | Left cornering illumination | 13H |
| E1m1 | Left headlamp range adjustment actuator motor | 2H |
| E1m2 | Left active curve illumination actuator motor | 19H |
| E1m3 | Left light distribution actuator motor | 20H |
| E1m4 | Left LED signaling lights actuation module fan motor | 4H |
| E1m5 | Left LED driving lights actuation module fan motor | 28H |
| E1n7 | Actuation module for left front exterior lights LED | 24L |
| E1n7 | Actuation module for left front exterior lights LED | 35L |
| E1n7 | Actuation module for left front exterior lights LED | 44L |
| E1n9 | Left headlamp control unit | 4L |
| E1n9 | Left headlamp control unit | 12L |
| E1n9 | Left headlamp control unit | 46L |
| E1n9 | Left headlamp control unit | 51L |
| E1n9 | Left headlamp control unit | 21L |
| N10/1 | Front SAM control unit with fuse and relay module | 45A |
| N10/1 | Front SAM control unit with fuse and relay module | 51A |
| N10/2 | Rear SAM control unit with fuse and relay module | 39A |
| N10/2f74 | Fuse 74 | 34A |
| N10/2f75 | Fuse 75 | 32A |
| N10/2f89 | Fuse 89 | 37A |
| U2 | Valid for all except USA | 33A |
| U941 | Valid without electronic level control | 49F |
| U985 | Not valid for AIRMATIC | 49D |
| W9 | Left front ground point (at lamp unit) | 30E |
| X25/2 | Engine compartment/interior electrical connector | 32E |
| Z36/5 | Headlamp range adjustment sensor ground connector sleeve | 51G |
| Z36/6 | Sensor voltage supply connector sleeve | 50G |
| Z6/56 | Circuit 31 connector sleeve | 30G |
| Z7/40z1 | Tml. 30 connector sleeve | 42G |
| Z7/40z3 | Tml. 30 connector sleeve | 46G |
| Z7/40z4 | Tml. 30 connector sleeve | 35G |
| Z7/40z5 | Tml. 30 connector sleeve | 32G |
