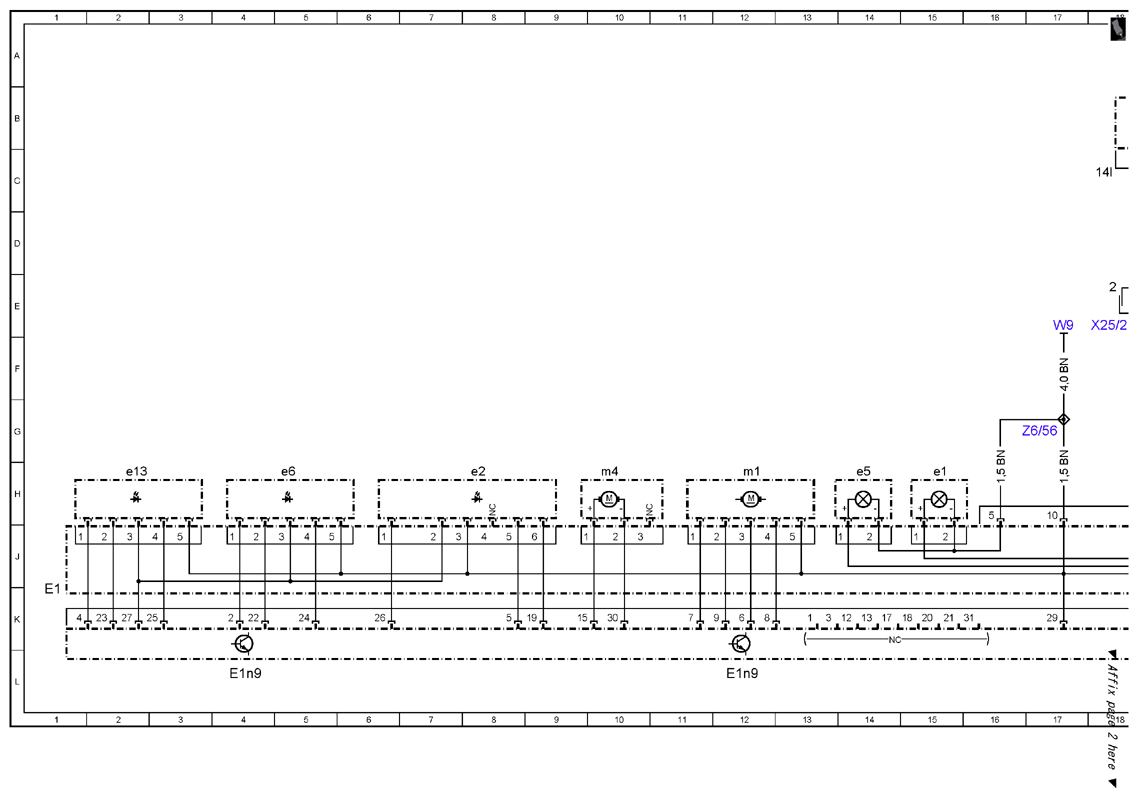

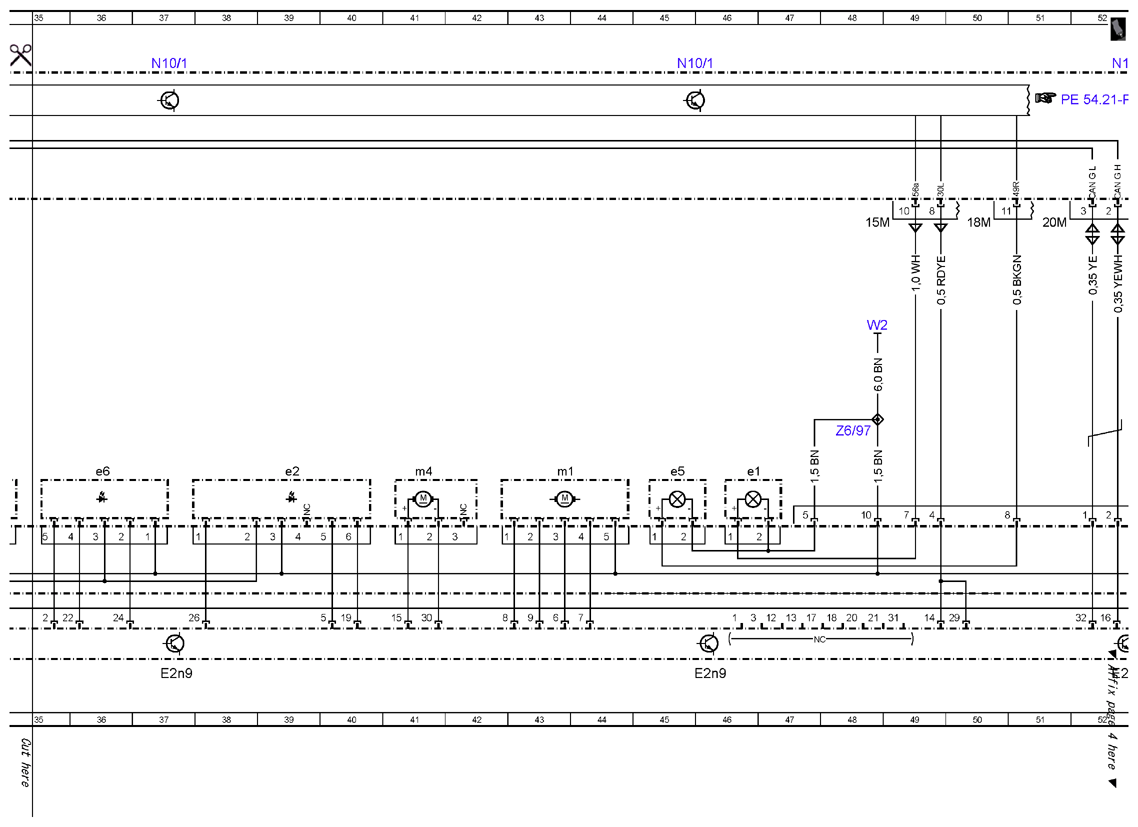

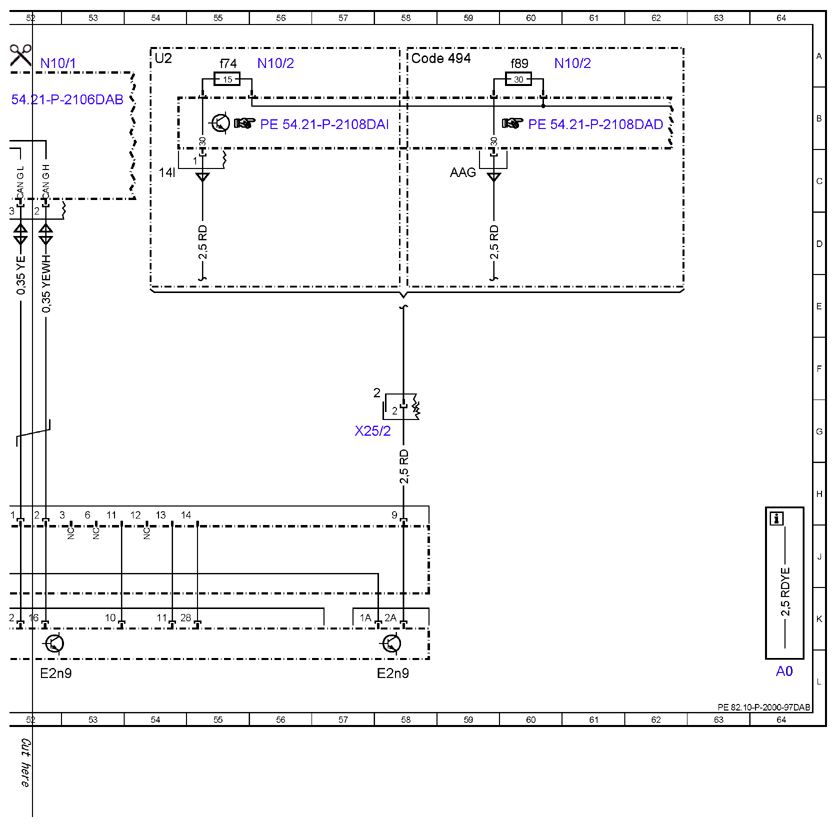

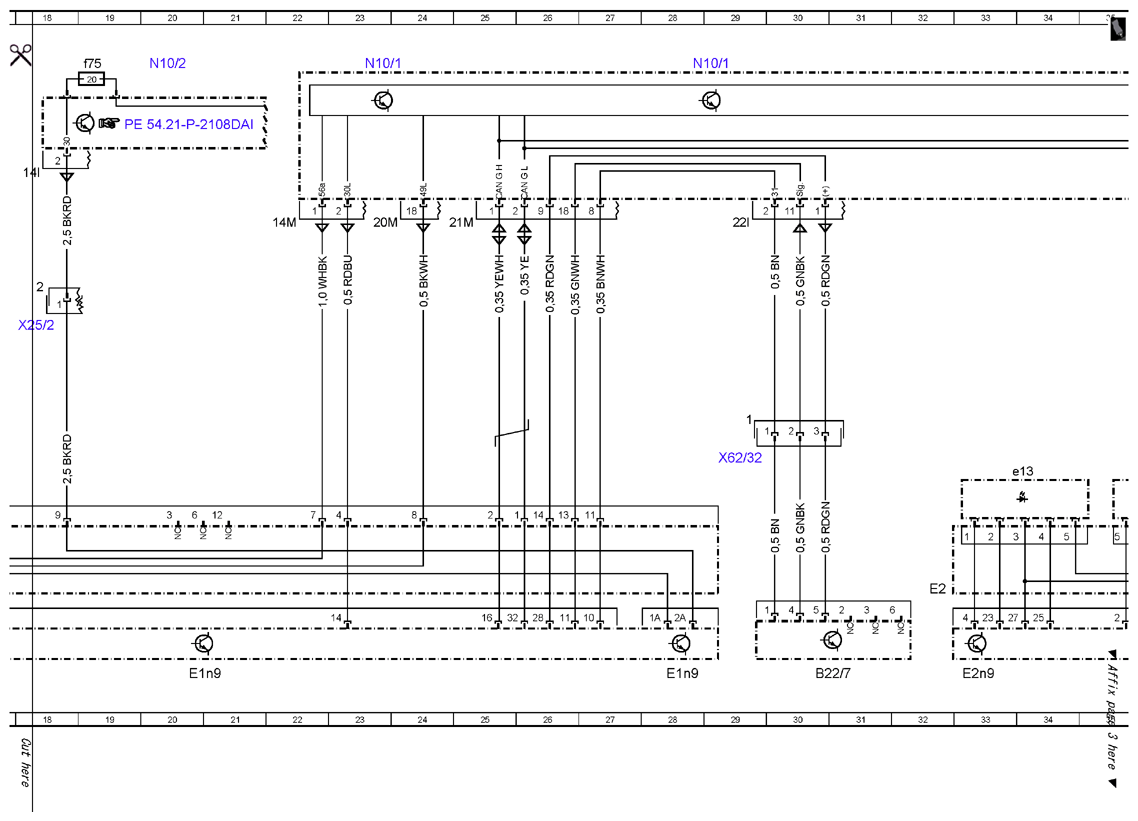

Wiring diagram of exterior lights - PE82.10-P-2000-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic) E1, E2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| B22/7 | Left rear level sensor | 30L |
| Code 494 | USA version | 58A |
| E1 | Left front lamp unit | 1K |
| E1e1 | Left high beam | 15H |
| E1e13 | Left parking light and daytime running light | 2H |
| E1e2 | Left low beam | 8H |
| E1e5 | Left front turn signal lamp | 14H |
| E1e6 | Left front side-marker lamp | 5H |
| E1m1 | Left headlamp range adjustment actuator motor | 12H |
| E1m4 | Left LED signaling lights actuation module fan motor | 10H |
| E1n9 | Left headlamp control unit | 4L |
| E1n9 | Left headlamp control unit | 12L |
| E1n9 | Left headlamp control unit | 20L |
| E1n9 | Left headlamp control unit | 28L |
| E2 | Right front lamp unit | 32K |
| E2e1 | Right high beam | 46H |
| E2e13 | Right parking light and daytime running light | 34H |
| E2e2 | Right low beam | 39H |
| E2e5 | Right front turn signal lamp | 45H |
| E2e6 | Right front side-marker lamp | 36H |
| E2m1 | Right headlamp range adjustment actuator motor | 43H |
| E2m4 | Right LED signaling lights actuation module fan motor | 41H |
| E2n9 | Right headlamp control unit | 33L |
| E2n9 | Right headlamp control unit | 37L |
| E2n9 | Right headlamp control unit | 46L |
| E2n9 | Right headlamp control unit | 52L |
| E2n9 | Right headlamp control unit | 58L |
| N10/1 | Front SAM control unit with fuse and relay module | 23A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 37A |
| N10/1 | Front SAM control unit with fuse and relay module | 45A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 56A |
| N10/2 | Rear SAM control unit with fuse and relay module | 61A |
| N10/2f74 | Fuse 74 | 55A |
| N10/2f75 | Fuse 75 | 19A |
| N10/2f89 | Fuse 89 | 60A |
| U2 | Valid for all except USA | 54A |
| W2 | Right front ground point at lamp unit | 48E |
| W9 | Left front ground point (at lamp unit) | 17E |
| X25/2 | Engine compartment/interior electrical connector | 18E |
| X25/2 | Engine compartment/interior electrical connector | 57G |
| X62/32 | Rear axle electrical connector, left distributor | 29H |
| Z6/56 | Circuit 31 connector sleeve | 17G |
| Z6/97 | Right lamp unit circuit 31 connector sleeve | 48G |
