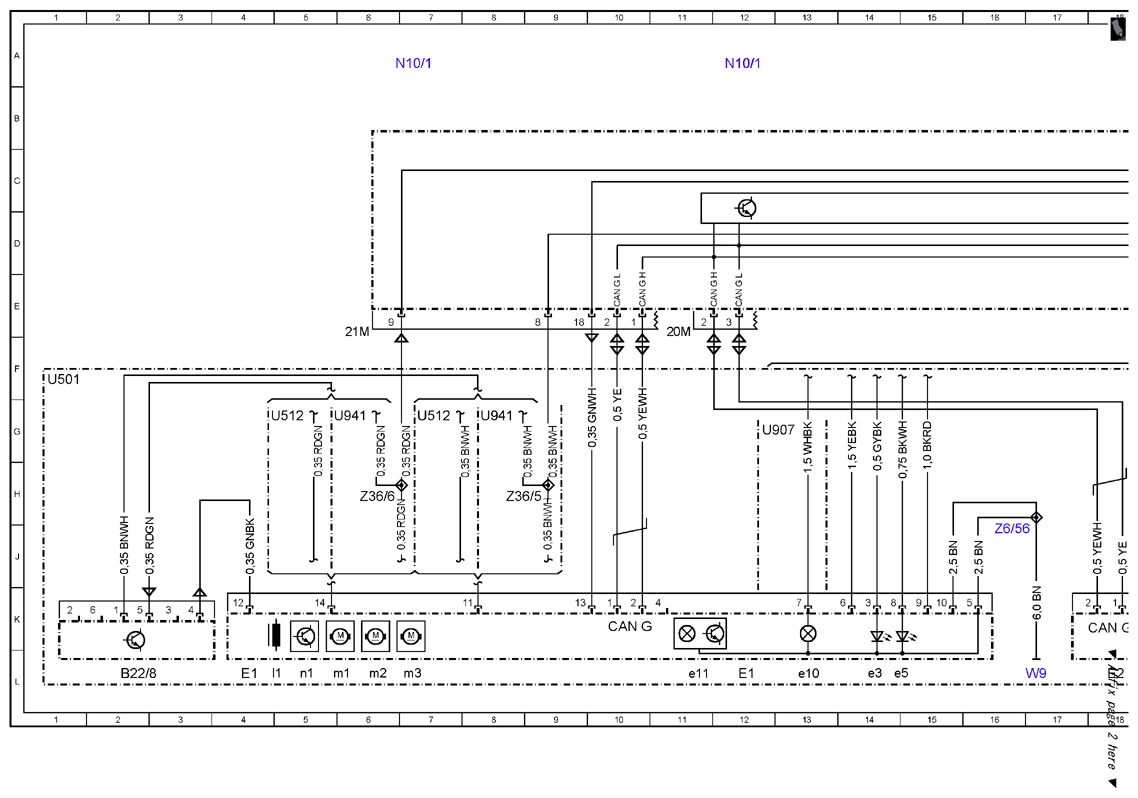

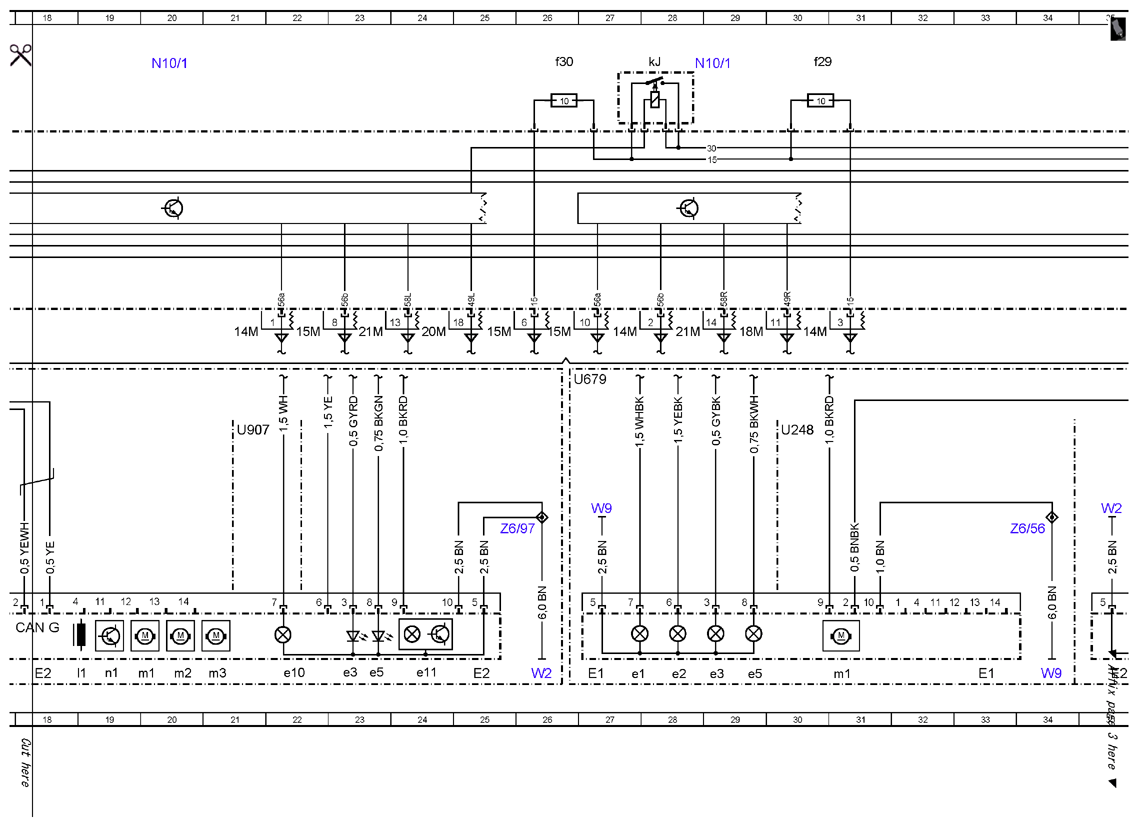

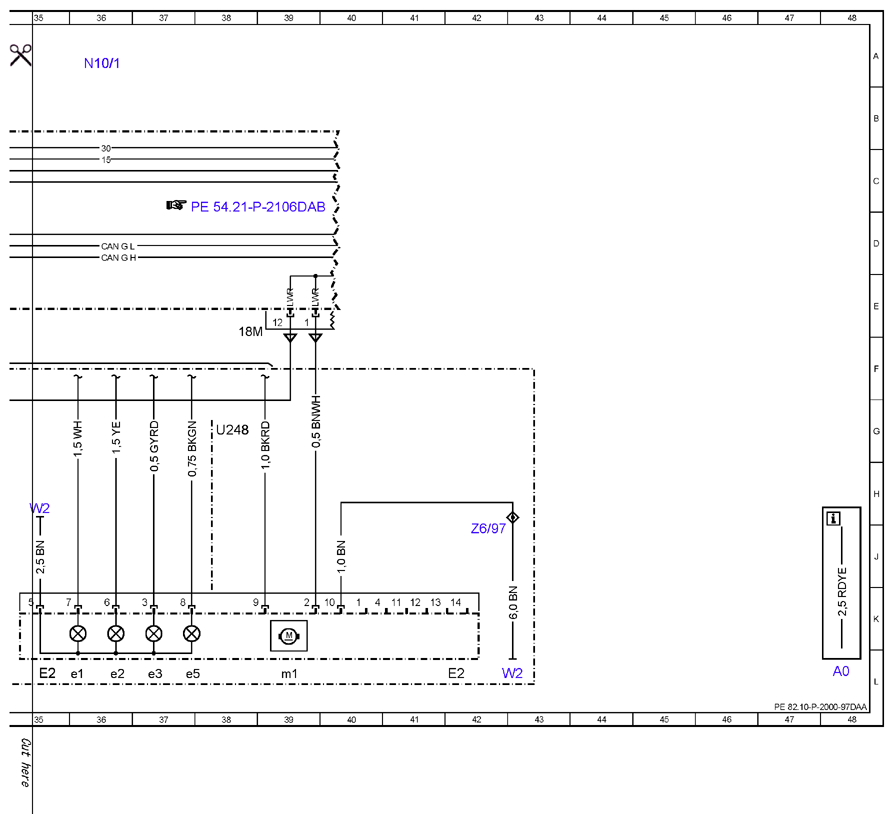

Wiring diagram of exterior lights - PE82.10-P-2000-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to model year 2013 E1, E2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| B22/8 | Left front level sensor | 2L |
| CAN G | Front end CAN | 10K |
| CAN G | Front end CAN | 18K |
| E1 | Left front lamp unit | 4L |
| E1 | Left front lamp unit | 12L |
| E1 | Left front lamp unit | 27L |
| E1 | Left front lamp unit | 33L |
| E1e1 | Left high beam | 27L |
| E1e10 | Left xenon bulb with integrated ignition module | 13L |
| E1e11 | Left infrared lamp | 11L |
| E1e2 | Left low beam | 28L |
| E1e3 | Left front standing and parking lamp | 14L |
| E1e3 | Left front standing and parking lamp | 29L |
| E1e5 | Left front turn signal lamp | 14L |
| E1e5 | Left front turn signal lamp | 29L |
| E1l1 | Left high beam solenoid | 4L |
| E1m1 | Left headlamp range adjustment actuator motor | 6L |
| E1m1 | Left headlamp range adjustment actuator motor | 31L |
| E1m2 | Left active curve illumination actuator motor | 6L |
| E1m3 | Left light distribution actuator motor | 7L |
| E1n1 | Left xenon lamp control unit | 5L |
| E2 | Right front lamp unit | 18L |
| E2 | Right front lamp unit | 25L |
| E2 | Right front lamp unit | 35L |
| E2 | Right front lamp unit | 42L |
| E2e1 | Right high beam | 36L |
| E2e10 | Right xenon bulb with integrated ignition module | 22L |
| E2e11 | Right infrared lamp | 24L |
| E2e2 | Right low beam | 36L |
| E2e3 | Right front standing and parking lamp | 23L |
| E2e3 | Right front standing and parking lamp | 37L |
| E2e5 | Right front turn signal lamp | 23L |
| E2e5 | Right front turn signal lamp | 37L |
| E2l1 | Right high beam solenoid | 18L |
| E2m1 | Right headlamp range adjustment actuator motor | 20L |
| E2m1 | Right headlamp range adjustment actuator motor | 39L |
| E2m2 | Right active curve illumination actuator motor | 20L |
| E2m3 | Right light distribution actuator motor | 21L |
| E2n1 | Right xenon light control unit | 19L |
| N10/1 | Front SAM control unit with fuse and relay module | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 36A |
| N10/1f29 | Fuse 29 | 30A |
| N10/1f30 | Fuse 30 | 26A |
| N10/1kJ | Circuit 15 relay | 28A |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 30G |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 38G |
| U501 | Valid for xenon headlamps | 1F |
| U512 | Valid for electronic level control | 4G |
| U512 | Valid for electronic level control | 7G |
| U679 | Valid for version without xenon headlamps | 26F |
| U907 | Valid for Night View Assist | 12G |
| U907 | Valid for Night View Assist | 21G |
| U941 | Valid without electronic level control | 5G |
| U941 | Valid without electronic level control | 8G |
| W2 | Right front ground point at lamp unit | 26L |
| W2 | Right front ground point at lamp unit | 35H |
| W2 | Right front ground point at lamp unit | 43L |
| W9 | Left front ground point (at lamp unit) | 17L |
| W9 | Left front ground point (at lamp unit) | 34L |
| W9 | Left front ground point (at lamp unit) | 27H |
| Z36/5 | Headlamp range adjustment sensor ground connector sleeve | 8H |
| Z36/6 | Sensor voltage supply connector sleeve | 6H |
| Z6/56 | Circuit 31 connector sleeve | 16J |
| Z6/56 | Circuit 31 connector sleeve | 34J |
| Z6/97 | Right lamp unit circuit 31 connector sleeve | 26J |
| Z6/97 | Right lamp unit circuit 31 connector sleeve | 42J |
