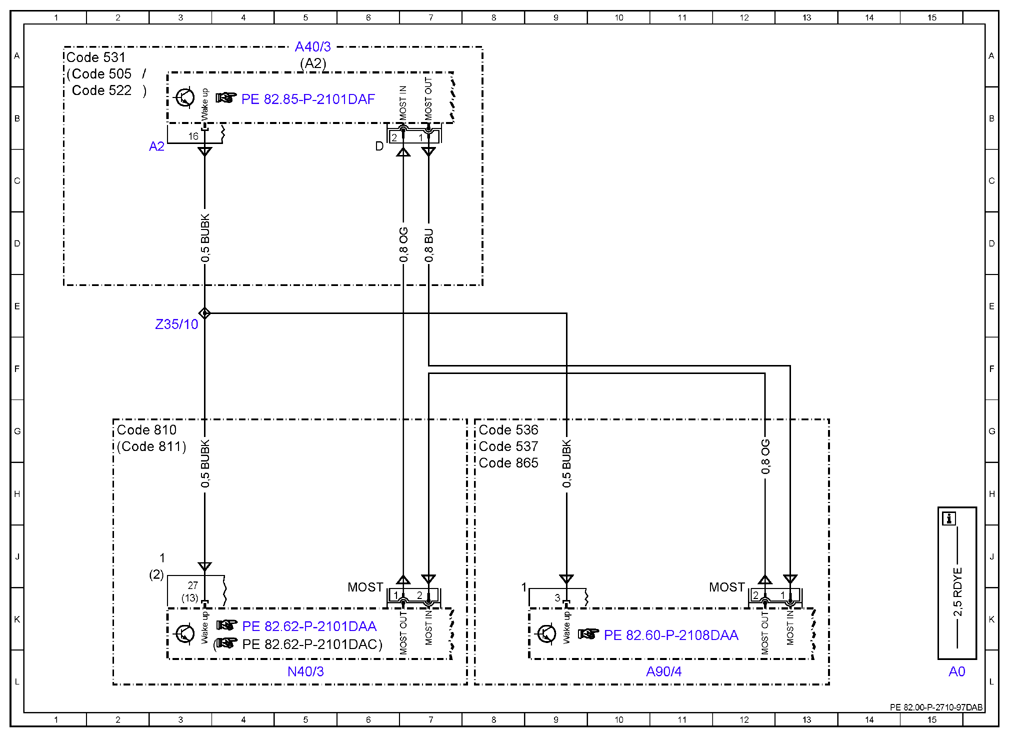

Wiring diagram of MOST bus - PE82.00-P-2710-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of 3/2/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2 | Radio | 5A |
| A40/3 | COMAND control unit | 5A |
| A90/4 | Tuner unit | 11L |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 1A |
| Code 522 | Audio 20 radio | 1B |
| Code 531 | COMAND APS | 1A |
| Code 536 | SIRIUS satellite radio | 8G |
| Code 537 | Digital radio | 8G |
| Code 810 | Sound system | 2G |
| Code 811 | Extended sound system | 2G |
| Code 865 | TV tuner (digital) | 8H |
| N40/3 | Sound system amplifier control unit | 5L |
| Z35/10 | MOST wake-up signal connector sleeve | 3E |
