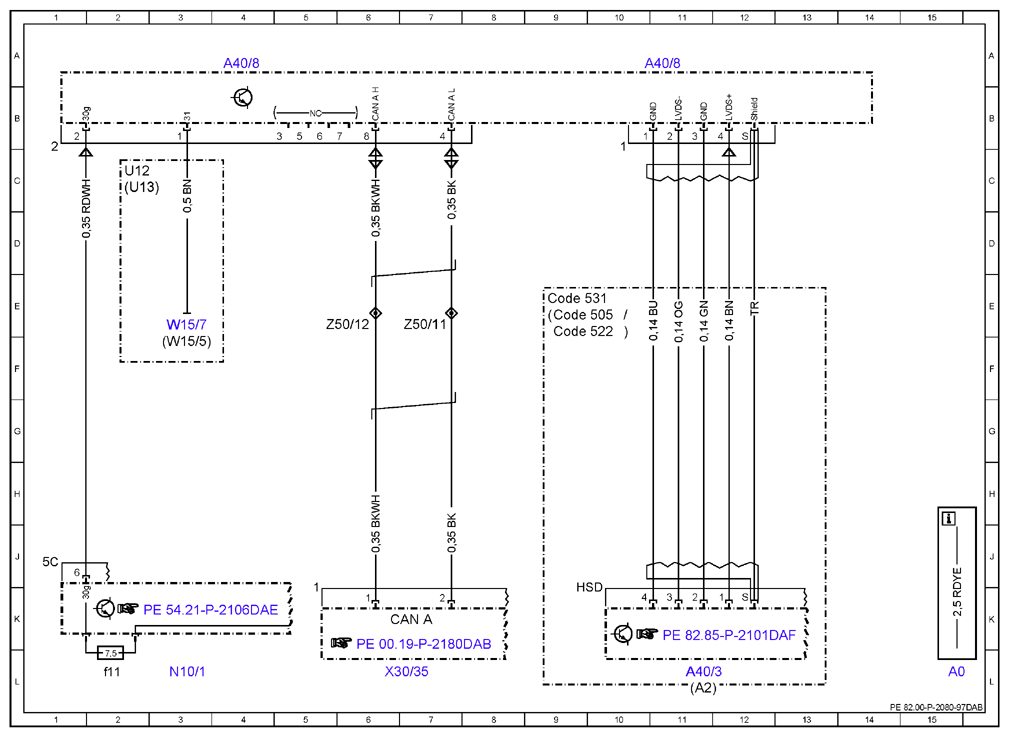

Wiring diagram for Audio/COMAND display - PE82.00-P-2080-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of 3/2/15 Control unit A40/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2 | Radio | 11L |
| A40/3 | COMAND control unit | 11L |
| A40/8 | Audio/COMAND display | 4A |
| A40/8 | Audio/COMAND display | 11A |
| CAN A | Telematics CAN | 7K |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 9E |
| Code 522 | Audio 20 radio | 9E |
| Code 531 | COMAND APS | 9E |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f11 | Fuse 11 | 2L |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 2C |
| W15/5 | Left front footwell ground point | 3F |
| W15/7 | Right front footwell ground point | 3E |
| X30/35 | Telematics CAN voltage distributor electrical connector | 6L |
| Z50/11 | CAN bus low cockpit connector sleeve | 7E |
| Z50/12 | CAN bus high cockpit connector sleeve | 6E |
