Wiring diagram for Audio/COMAND display - PE82.00-P-2080-97DAA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 up to 3/1/15 Control unit A40/8

Code: Designation: Position:
A0 Color code key 32L
A2 Radio 12L
A2 Radio 27L
A2/56 Radio with auto pilot system 12L
A40/3 COMAND control unit 20L
A40/3 COMAND control unit 27L
A40/8 Audio/COMAND display 11A
A40/8 Audio/COMAND display 4A
A40/8 Audio/COMAND display 20A
A40/8 Audio/COMAND display 28A
CAN A Telematics CAN 6K
N10/1 Front SAM control unit with fuse and relay module 3L
N10/1f11 Fuse 11 2L
U12 Valid for left-hand drive vehicles 3F
U13 Valid for right-hand drive vehicles 2F
U52 Valid for Japan 16G
U54 Valid for all except Japan 16F
U631 Valid for COMAND 16F
U631 Valid for COMAND 24A
U865 Valid for Audio 20 8F
U865 Valid for Audio 20 24A
U866 Valid for Audio 50 8F
W18 Left front seat crossmember ground point 3H
W19 Right front seat crossmember ground point 3H
X18 Vehicle interior and harness for taillamp electrical connector 3E
X30/35 Telematics CAN voltage distributor electrical connector 6L
Z20/62z1 Screening end connector sleeve 17C
Z20/62z2 Screening end connector sleeve 15J
Z20/62z2 Screening end connector sleeve 23J
Z50/11 CAN bus low cockpit connector sleeve 7E
Z50/12 CAN bus high cockpit connector sleeve 6E

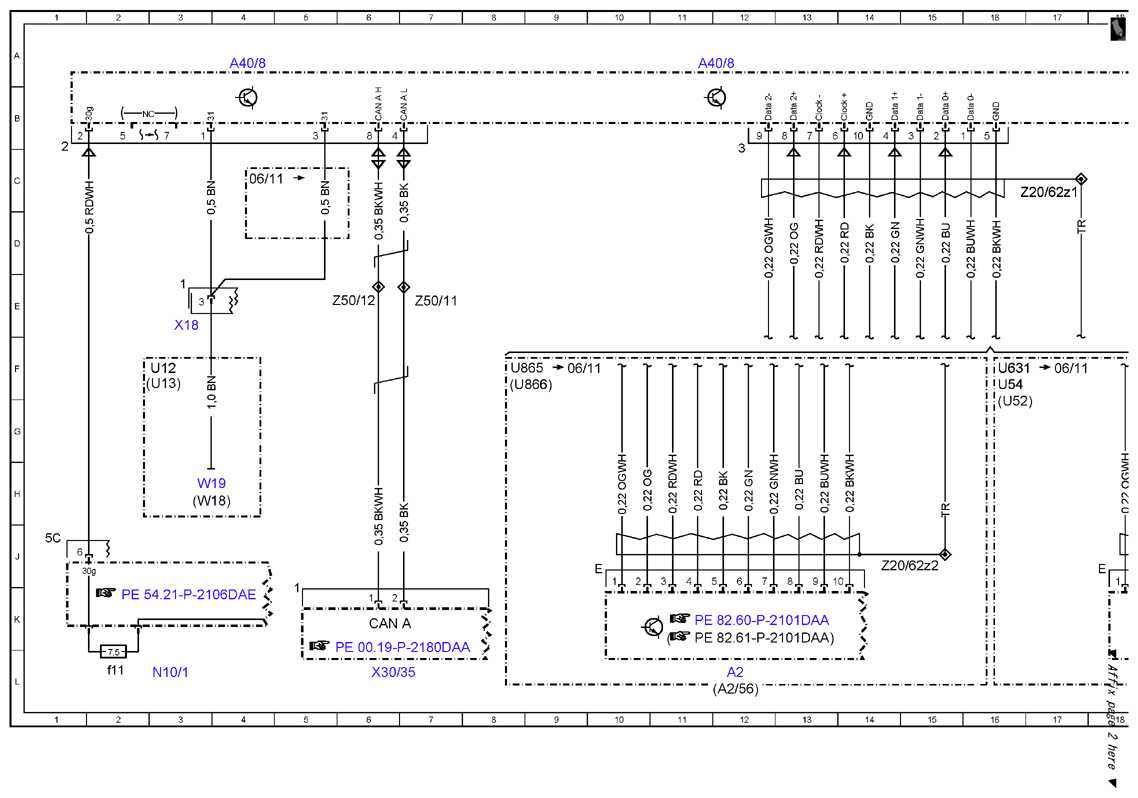

Fig 1: Audio/COMAND Display Wiring Diagram (1 Of 2)
G10055048Courtesy of MERCEDES-BENZ USA

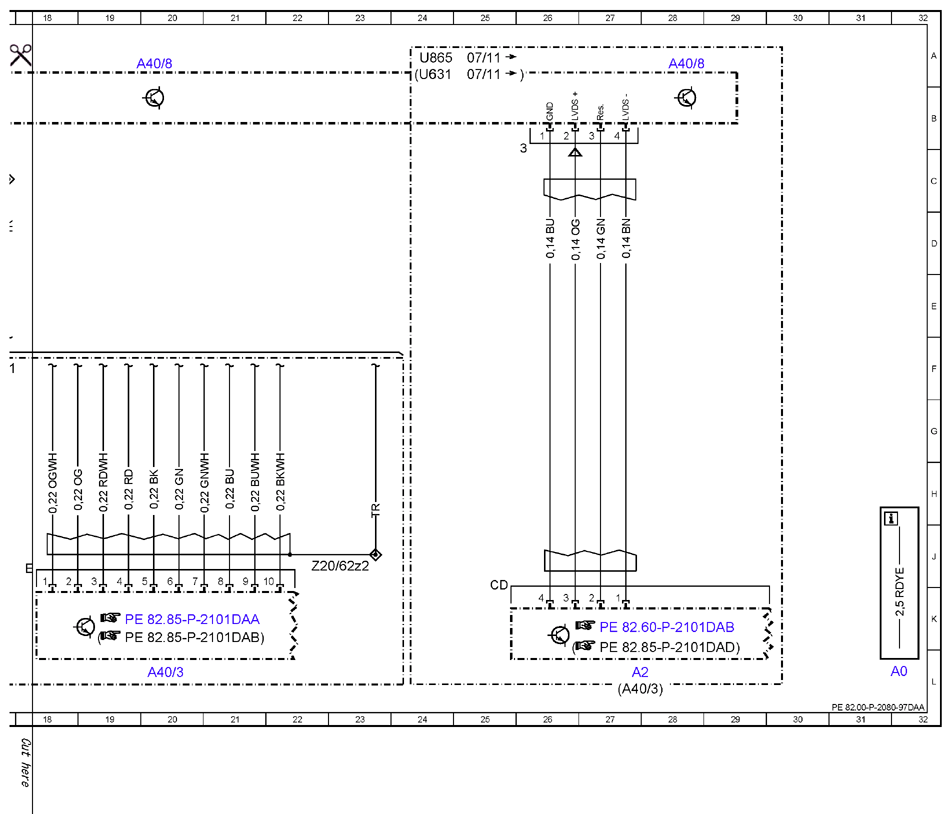

Fig 2: Audio/COMAND Display Wiring Diagram (2 Of 2)
G10055049Courtesy of MERCEDES-BENZ USA
