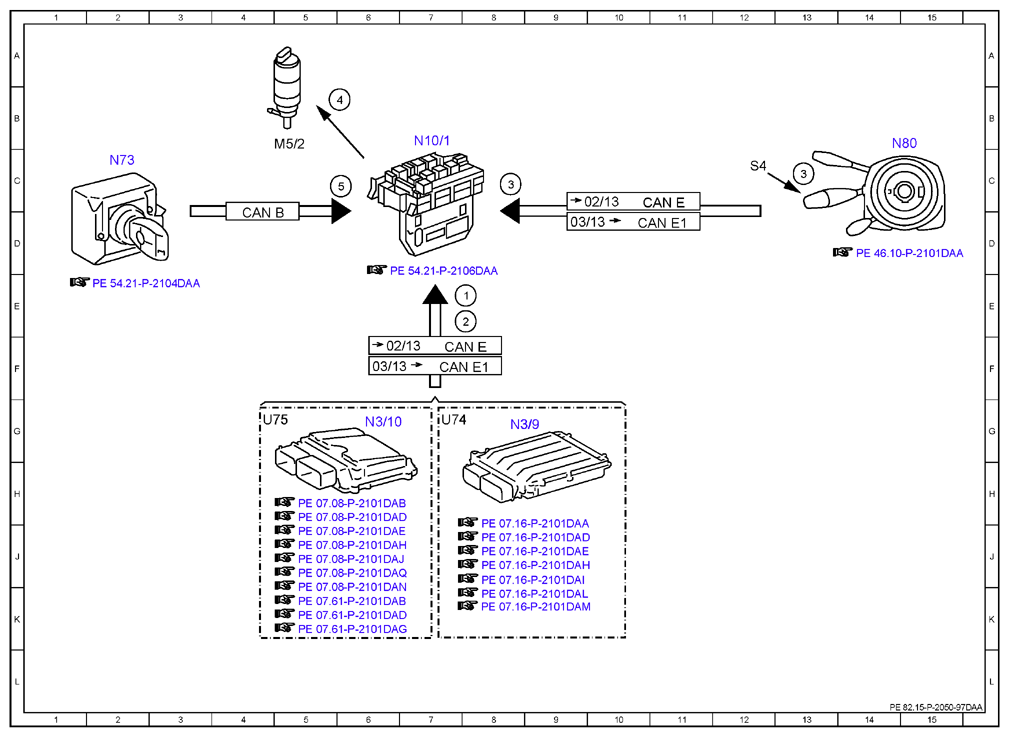

Electrical system function schematic for headlamp cleaning system (HCS) - PE82.15-P-2050-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 600 (Headlamp cleaning system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 8E |
| 2 | Drivetrain operational, signal | 8E |
| 3 | Combination switch, status | 8C |
| 3 | Combination switch, status | 13C |
| 4 | Headlamp cleaning system pump, actuation | 6B |
| 5 | Circuit 15, status | 6C |
| CAN B | Interior CAN | 4D |
| CAN E | Chassis CAN | 7F |
| CAN E | Chassis CAN | 11C |
| CAN E1 | Chassis CAN 1 | 7F |
| CAN E1 | Chassis CAN 1 | 11D |
| M5/2 | Headlamp cleaning system pump | 5B |
| N10/1 | Front SAM control unit with fuse and relay module | 7B |
| N3/10 | ME-SFI [ME] control unit | 6G |
| N3/9 | CDI control unit | 8G |
| N73 | Electronic ignition switch control unit | 2C |
| N80 | Steering column module control unit | 14B |
| S4 | Combination switch | 12C |
| U74 | Valid for diesel engines | 7G |
| U75 | Valid for gasoline engines | 4G |
