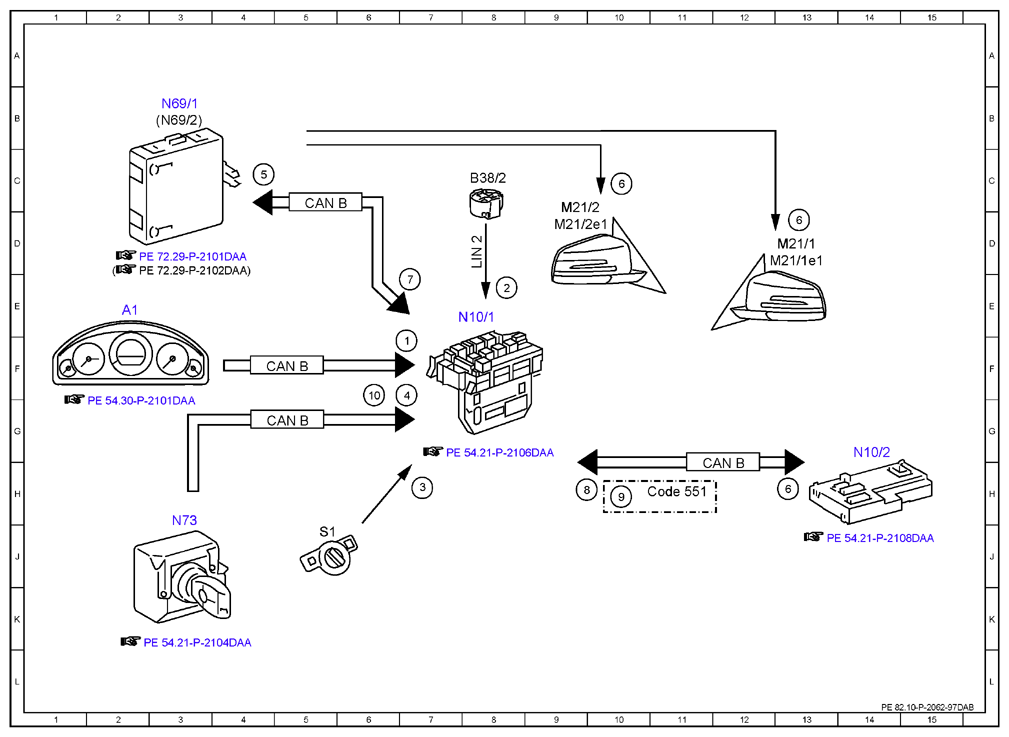

Electrical function schematic, headlamp switch-off delay (SWA) - PE82.10-P-2062-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Headlamp switch-off delay, request | 7F |
| 10 | Central locking (CL[ZV]), status | 6F |
| 2 | Rain/light sensor, status | 8E |
| 3 | Exterior lights switch, status | 7H |
| 4 | Circuit 15, status | 7F |
| 5 | Ambient lamp, request | 4C |
| 6 | Standing and parking lights, request | 13H |
| 7 | Door rotary tumbler switch, status | 7E |
| 8 | Rotary tumbler switch, status | 9H |
| 9 | ATA [EDW] alarm, signal | 10H |
| A1 | Instrument cluster | 2E |
| B38/2 | Rain/light sensor | 8C |
| CAN B | Interior CAN | 12H |
| CAN B | Interior CAN | 5C |
| CAN B | Interior CAN | 5G |
| CAN B | Interior CAN | 5F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 10H |
| LIN 2 | Wiper/inside rearview mirror LIN | 8D |
| M21/1 | Left outside mirror | 13D |
| M21/1e1 | Left outside mirror ambient lamp | 13D |
| M21/2 | Right outside mirror | 9D |
| M21/2e1 | Right outside mirror ambient lamp | 9D |
| N10/1 | Front SAM control unit with fuse and relay module | 8E |
| N10/2 | Rear SAM control unit with fuse and relay module | 14G |
| N69/1 | Left front door control unit | 3B |
| N69/2 | Right front door control unit | 3B |
| N73 | Electronic ignition switch control unit | 3J |
| S1 | Exterior lights switch | 5J |
