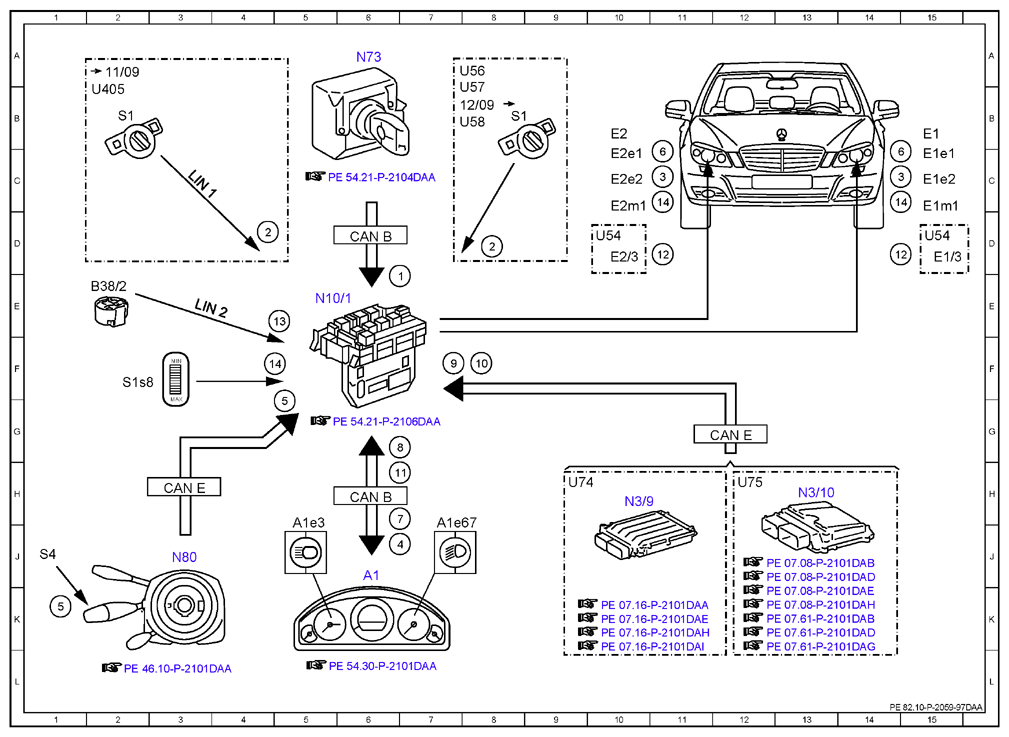

Electrical function schematic for driving lights actuation - PE82.10-P-2059-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /2 up to 28.2.13
except CODE (615) Bi-xenon headlamp unit with integrated curve illumination
except CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination
except CODE (621) Intelligent Light System (left-hand traffic)
except CODE (622) Intelligent Light System (right-hand traffic)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 10 | Drivetrain operational, signal | 8F |
| 11 | Vehicle speed, signal | 6H |
| 12 | Daytime running lights, actuation | 14D |
| 12 | Daytime running lights, actuation | 11D |
| 13 | Rain/light sensor, status | 5E |
| 14 | Headlamp range adjustment actuator motor, actuation | 4F |
| 14 | Headlamp range adjustment actuator motor, actuation | 14C |
| 14 | Headlamp range adjustment actuator motor, actuation | 11C |
| 2 | Exterior lights switch, status | 4D |
| 2 | Exterior lights switch, status | 8D |
| 3 | Low beams, actuation | 14C |
| 3 | Low beams, actuation | 11C |
| 4 | Low beams indicator lamp, actuation | 6J |
| 5 | Combination switch, status | 1K |
| 5 | Combination switch, status | 5G |
| 6 | High beams, actuation | 14C |
| 6 | High beams, actuation | 11C |
| 7 | High beam indicator lamp, actuation | 6H |
| 8 | Daytime running lights, request | 6G |
| 9 | Engine running, signal | 7F |
| A1 | Instrument cluster | 6J |
| A1e3 | High beam indicator lamp | 5J |
| A1e67 | Low beam indicator lamp | 7J |
| B38/2 | Rain/light sensor | 2E |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 6D |
| CAN E | Chassis CAN | 3H |
| CAN E | Chassis CAN | 12G |
| E1 | Left front lamp unit | 15B |
| E1/3 | Left daytime running lamps headlamp | 15D |
| E1e1 | Left high beam | 15C |
| E1e2 | Left low beam | 15C |
| E1m1 | Left headlamp range adjustment actuator motor | 15C |
| E2 | Right front lamp unit | 10B |
| E2/3 | Right daytime running lamps headlamp | 10D |
| E2e1 | Right high beam | 10C |
| E2e2 | Right low beam | 10C |
| E2m1 | Right headlamp range adjustment actuator motor | 10C |
| LIN 1 | Instrument panel LIN | 3C |
| LIN 2 | Wiper/inside rearview mirror LIN | 3E |
| N10/1 | Front SAM control unit with fuse and relay module | 5E |
| N3/10 | ME-SFI [ME] control unit | 13H |
| N3/9 | CDI control unit | 10H |
| N73 | Electronic ignition switch control unit | 6A |
| N80 | Steering column module control unit | 3J |
| S1 | Exterior lights switch | 2B |
| S1 | Exterior lights switch | 8B |
| S1s8 | Headlamp range controller | 2F |
| S4 | Combination switch | 1J |
| U405 | Valid for model 212.0 except 212.077 | 2B |
| U54 | Valid for all except Japan | 10D |
| U54 | Valid for all except Japan | 15D |
| U56 | Valid for model 212.077 | 7A |
| U57 | Valid for model 212.2 | 7B |
| U58 | Valid for model 212.0/1 | 7B |
| U74 | Valid for diesel engines | 9H |
| U75 | Valid for gasoline engines | 12H |
