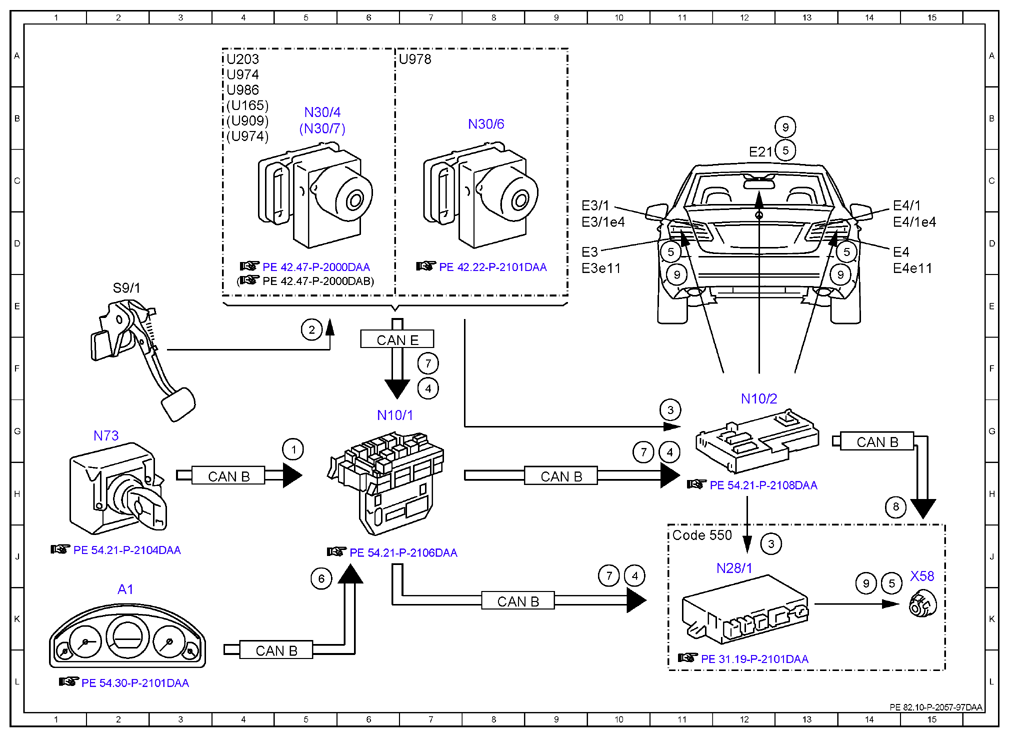

Electrical function schematic for brake light actuation - PE82.10-P-2057-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /2 up to 28.2.13
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5G |
| 2 | Brake light switch, status | 5E |
| 3 | Circuit 54, status | 12J |
| 3 | Circuit 54, status | 11G |
| 4 | Brake lights, request | 7F |
| 4 | Brake lights, request | 11G |
| 4 | Brake lights, request | 10J |
| 5 | Brake lights, actuation | 14J |
| 5 | Brake lights, actuation | 13C |
| 5 | Brake lights, actuation | 11D |
| 5 | Brake lights, actuation | 14D |
| 6 | Vehicle speed, signal | 5J |
| 7 | Emergency stop, signal | 10J |
| 7 | Emergency stop, signal | 7F |
| 7 | Emergency stop, signal | 10G |
| 8 | Brake light dark phase, signal | 14H |
| 9 | Flashing brake lights, actuation | 11E |
| 9 | Flashing brake lights, actuation | 13B |
| 9 | Flashing brake lights, actuation | 14J |
| 9 | Flashing brake lights, actuation | 14E |
| A1 | Instrument cluster | 2K |
| CAN B | Interior CAN | 4H |
| CAN B | Interior CAN | 8K |
| CAN B | Interior CAN | 9H |
| CAN B | Interior CAN | 4L |
| CAN B | Interior CAN | 14G |
| CAN E | Chassis CAN | 6F |
| Code 550 | Trailer hitch | 11J |
| E21 | Center stop lamp | 12C |
| E3 | Left rear lamp unit | 9D |
| E3/1 | Inner left rear lamp unit | 9C |
| E3/1e4 | Inner left stop lamp and taillamp | 9D |
| E3e11 | Outer left brake light and taillight | 9D |
| E4 | Right rear lamp unit | 14D |
| E4/1 | Inner right rear lamp unit | 14C |
| E4/1e4 | Inner right brake light and taillight | 14D |
| E4e11 | Outer right brake light and taillight | 14D |
| N10/1 | Front SAM control unit with fuse and relay module | 6G |
| N10/2 | Rear SAM control unit with fuse and relay module | 12G |
| N28/1 | Trailer recognition control unit | 12J |
| N30/4 | Electronic Stability Program control unit | 5B |
| N30/6 | Regenerative braking system control unit | 8B |
| N30/7 | Premium Electronic Stability Program control unit | 5B |
| N73 | Electronic ignition switch control unit | 2G |
| S9/1 | Stop lamp switch | 2E |
| U165 | Valid for AMG | 4B |
| U203 | Valid without DISTRONIC PLUS | 4A |
| U909 | Valid for DISTRONIC PLUS | 4B |
| U974 | Not valid for full hybrid drive | 4A |
| U974 | Not valid for full hybrid drive | 4B |
| U978 | Valid for full hybrid drive | 6A |
| U986 | Not valid for AMG | 4B |
| X58 | Trailer socket | 15J |
