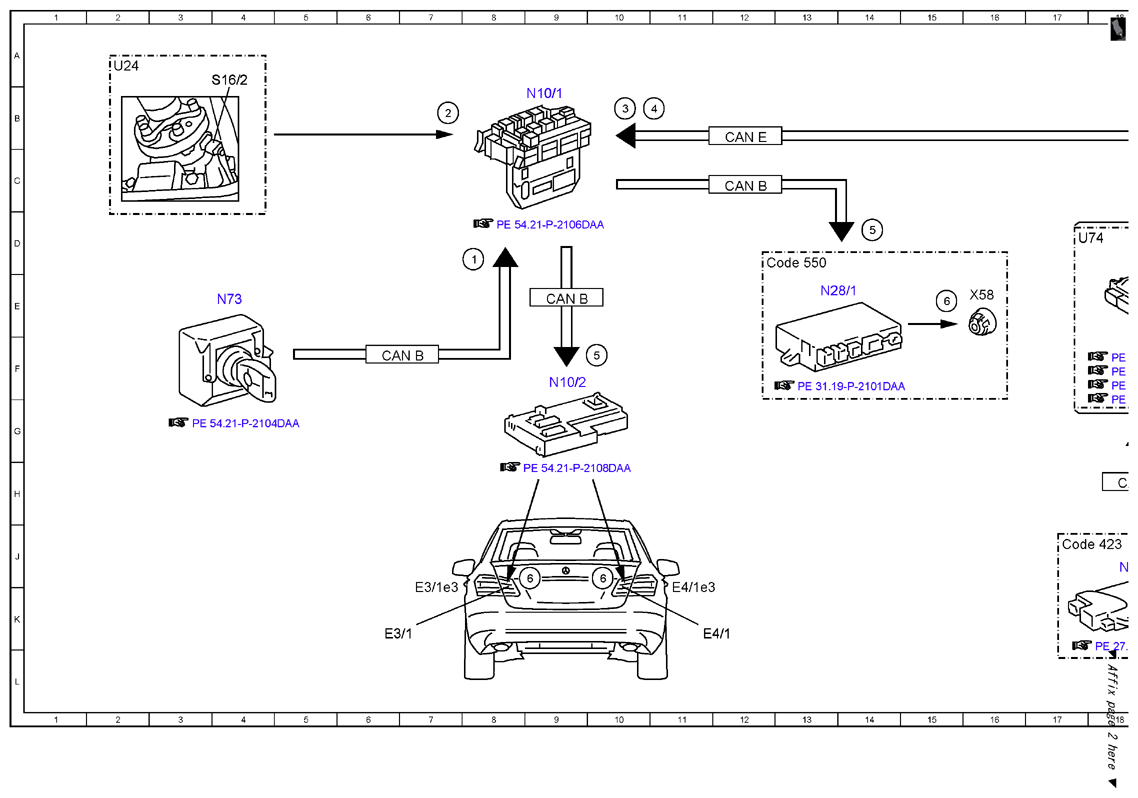

Electrical function schematic for backup light actuation - PE82.10-P-2058-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /2 up to 28.2.13
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8D |
| 2 | Backup lamp switch, status | 7B |
| 3 | Selector lever position, status | 10B |
| 3 | Selector lever position, status | 19G |
| 4 | Gear range, status | 11B |
| 4 | Gear range, status | 22G |
| 5 | Reverse gear, status | 10F |
| 5 | Reverse gear, status | 14D |
| 6 | Backup lamp, actuation | 9J |
| 6 | Backup lamp, actuation | 15E |
| 6 | Backup lamp, actuation | 10J |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 6F |
| CAN C | Drive train CAN | 21H |
| CAN C | Drive train CAN | 18H |
| CAN E | Chassis CAN | 12B |
| CAN E | Chassis CAN | 19B |
| Code 423 | 5-speed automatic transmission | 17J |
| Code 427 | 7-speed automatic transmission | 20J |
| Code 550 | Trailer hitch | 12D |
| E3/1 | Inner left rear lamp unit | 6K |
| E3/1e3 | Left backup lamp | 7K |
| E4/1 | Inner right rear lamp unit | 11K |
| E4/1e3 | Right backup lamp | 11K |
| N10/1 | Front SAM control unit with fuse and relay module | 9B |
| N10/2 | Rear SAM control unit with fuse and relay module | 9F |
| N15/5 | Electronic selector lever module control unit | 18J |
| N28/1 | Trailer recognition control unit | 13E |
| N3/10 | ME-SFI [ME] control unit | 21D |
| N3/9 | CDI control unit | 18D |
| N73 | Electronic ignition switch control unit | 4E |
| S16/2 | Backup lamp switch | 4A |
| U24 | Valid for manual transmission | 2A |
| U74 | Valid for diesel engines | 17D |
| U75 | Valid for gasoline engines | 20D |
| X58 | Trailer socket | 16E |
| Y3/8n4 | Fully integrated transmission control unit | 21J |
