Retrofit wiring harness for Tablet PC mount - AZ82.80-P-0003-02EWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0## /2## 1# with CODE (275) Electrically adjustable front seats memory package

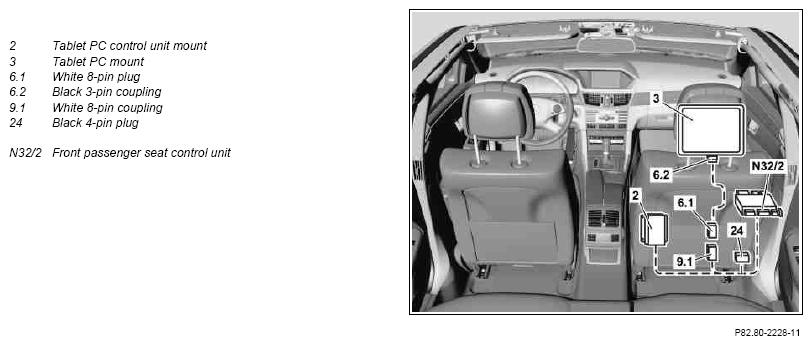

Connection scheme
Routing diagram
The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle.

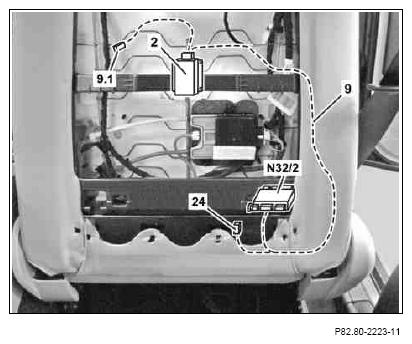

- Connect wiring harness (9) to Tablet PC control unit mount (2) and route to front passenger seat control unit (N32/2).
- Fasten wiring harness (9) to seat frame using cable ties and strap down any excess line length.
The white 8-pin coupling (9.1) and the black 4-pin plug (24) will be connected at a later stage.
Fasten wiring harness (9) to seat such that unrestricted adjustment of the seat is possible. Otherwise the wiring harness (9) may be sheared off or crushed.

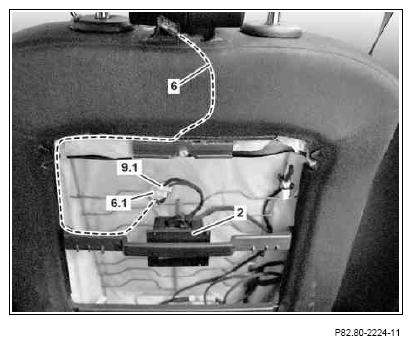

- Route wiring harness (6) from previously created opening in backrest to Tablet PC control unit mount (2).
- Connect white 8-pin coupling (9.1) to white 8-pin plug (6.1).
- Fasten the wiring harness (6), the white 8-pin plug (6.1) and the white 8-pin coupling (9.1) using cable ties to the seat frame and strap down any excess line length.

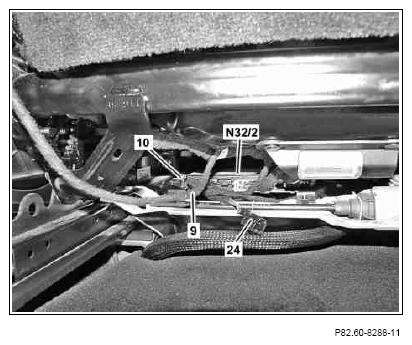

- Detach black 4-pin coupling (10) of vehicle wiring harness from front passenger seat control unit (N32/2) and connect to black 4-pin plug (24) of wiring harness (9).
- Plug black 4-pin coupling of wiring harness (9) instead of the black 4-pin coupling (10) to the front passenger seat control unit (N32/2) on the outer left slot.
- Fasten wiring harness (9) to seat frame using cable ties and strap down any excess line length.
