Retrofit tablet PC mount holder - AZ82.80-P-0003-04EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0##/2## 1#, 218.3##/9## 1#

TABLET PC MOUNT

Number	Designation		MODEL 164, 204, 211, 212, 218, 219, 221, 251
BA82.80-P-1001-01A	Screw/bolt, tablet PC mount bracket to seat	Nm	19

The following work procedure is shown on the right side of the vehicle. Installation on the left side of the vehicle is performed correspondingly.

Insert silver bracket (15) into opening at backrest.
Insert black bracket (16) into opening at backrest.
Screw black bracket (16) to silver bracket (15) using screw/bolt (17).
The threaded connection enables the black bracket (16) and the silver bracket (15) to be connected to the seat's previously exposed cross strut. Observe tightening torque.

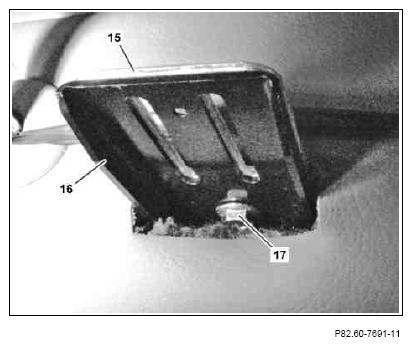

Fig 1: Screwing Black Bracket To Silver Bracket Using Screw/Bolt
Courtesy of MERCEDES-BENZ USA
Make a cutout for screw/bolt (18) at plastic reinforcement (20) using side cutting pliers.
Tighten black bracket using screw/bolt (18) to seat crossmember.
Use suitable washer and nut from delivery contents. Expose seat cover.

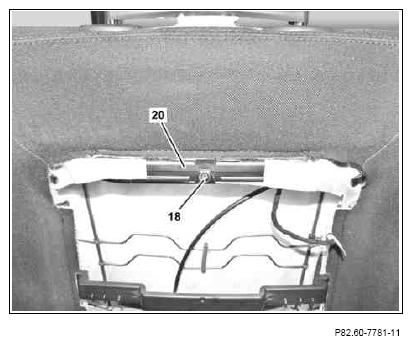

Fig 2: Plastic Reinforcement And Screw/Bolt
