Retrofit tablet PC mount control unit - AZ82.80-P-0003-01EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0##/2## 1#, 218.3##/9## 1# with CODE 275 (Electrically adjustable front seats memory package)
The following work procedure is shown on the right side of the vehicle. Installation on the left side of the vehicle is performed correspondingly.

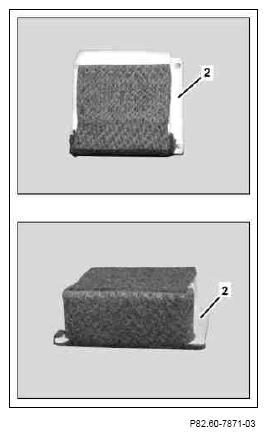

- Bond felt tape onto Tablet PC mount control unit (2).
Do not bond the bottom of the Tablet PC mount control unit (2).
- Fasten Tablet PC mount control unit (2) to upper cross strut (22) using velcro strip (21).
The bonding areas must be free of dust and grease. Otherwise adhesion problems may occur.
