Retrofit mount for tablet PC - AZ82.80-P-0003-03CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 164.1##/8## 1#, 204.9, 212.0##/2## 1#, 221.0##/1## 1#, 251.0##/1## 1# without CODE 866 (Preinstallation for rear entertainment system)
MODEL 204.0/2, 218.3##/9## 1#
The following work procedure is shown on the right side of the vehicle. Installation on the left side of the vehicle is performed correspondingly.

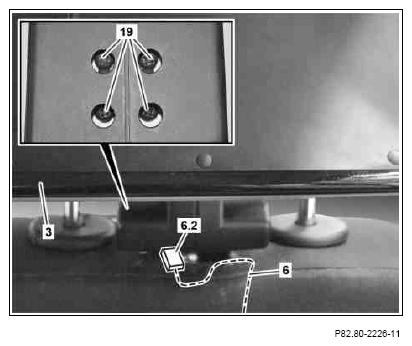

- Slide Tablet PC mount (3) onto previously installed bracket.
- Connect black 3-pin coupling (6.2) of wiring harness (6) to Tablet PC mount (3).
- Route wiring harness (6) into opening in the backrest.
- Slide Tablet PC mount (3) further onto bracket until the lower edge of the Tablet PC mount (3) rests on the backrest.
- Tighten Tablet PC mount (3) using the screws/bolts (19) included in the installation kit from the front onto the bracket.
