Retrofit Bluetooth module bracket - AZ82.70-P-0014-02EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0##/2## 1# with code 279 (Electronic gear selector) with code 386 (Comfort telephony)
MODEL 218.3## (except 218.374) 1#, 218.9## (except 218.974) 1# with code 386 (Comfort telephony)

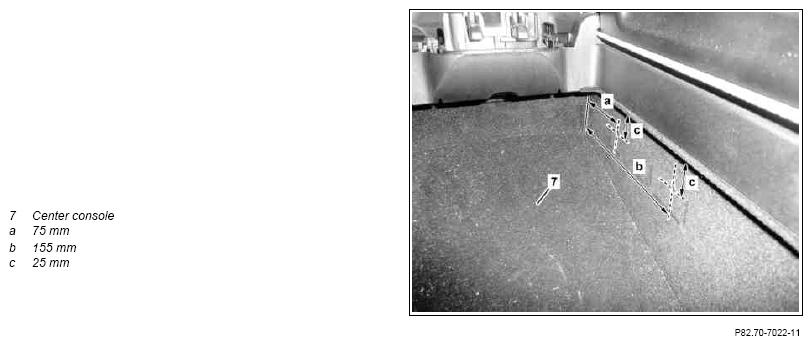

- Mark holes for Bluetooth module bracket on center console (7).
- Drill Ø 4 mm holes.
The drill depth must not exceed 8 mm. Otherwise the center console (7) or the front passenger seat may be damaged.

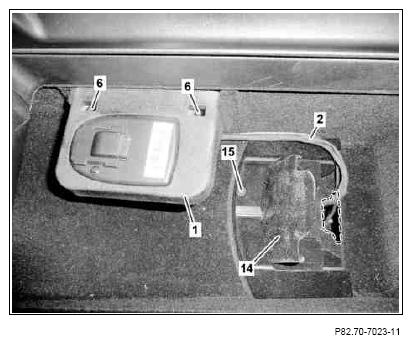

Shown on model 212
- Screw Bluetooth module bracket (1) securely to center console using screws/bolts (6) included in bolt-on kit.
Ensure that Bluetooth module bracket (1) is seated correctly.
- Cover Bluetooth module wiring harness bracket (2) and opening in center console (broken line) with felt tape.
- Install bracket (14) and tighten with screw/bolt (15).
