Make cutout for tablet PC mount holder - AZ82.80-P-0003-07EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0##/2## 1#, 218.3##/9## 1#

The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle.

Cut out cutting template (11) along broken line.
The cutting template (11) is included in the installation kit.

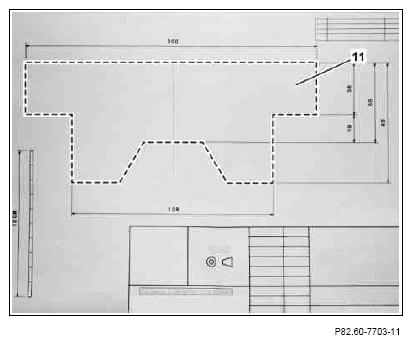

Fig 1: Tablet PC Mount Holder Template Cutting Line
Courtesy of MERCEDES-BENZ USA
Apply cutting template (11) to head restraint and mark separating point (broken line).
Remove cutting template (11).

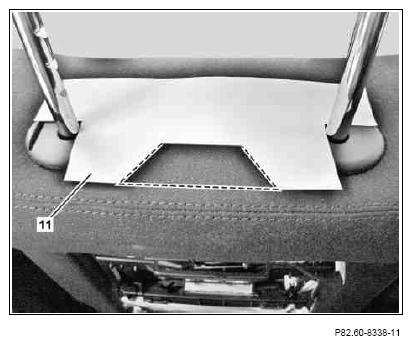

Fig 2: Applying Cutting Template To Head Restraint
Courtesy of MERCEDES-BENZ USA
Cut seat cover using a knife and fix shackle (12) in place using adhesive tape (13).
Work out opening in seat cover and remove remaining foam.
Work out seat core until cross strut (14) of seat is accessible.
Fold shackle (12) into opening.

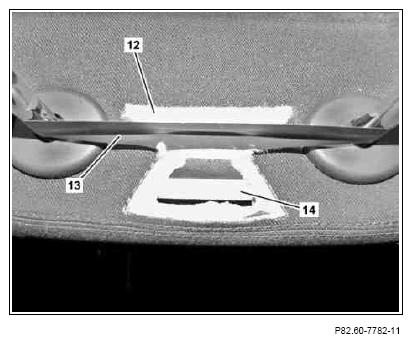

Fig 3: Shackle, Adhesive Tape And Cross Strut
Courtesy of MERCEDES-BENZ USA
