Remove/install fuel metering pump - AR83.70-P-5652EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3 with CODE (228) Stationary heater
MODEL 212.0/2 with CODE (228) Stationary heater
MODEL 218 with CODE (228) Stationary heater

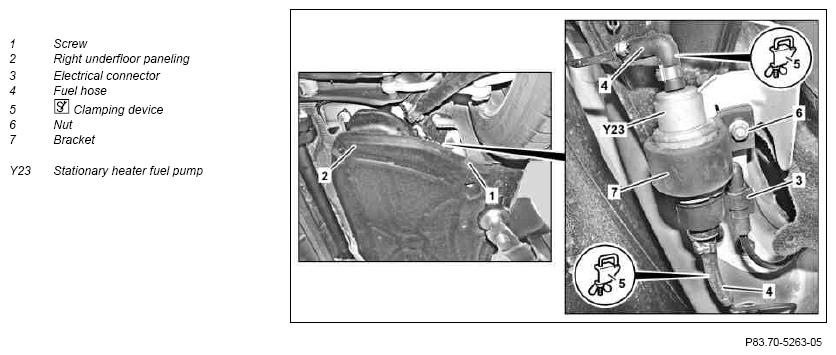

Shown on model 212.0/2
| Remove/install | |||
| Risk of explosion caused by fuel igniting, Risk of poisoning caused by inhaling and swallowing fuel and Risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Remove bolt (1) | ||
| 3 | Lift right underfloor paneling (2) to side until stationary heater fuel pump (Y23) is accessible | ||
| 4 | Disconnect electrical connector (3) | ||
| 5 | Pinch off fuel hoses (4) with clamping devices (5) | Fig 2 | |
| 6 | Remove fuel hoses (4) from stationary heater fuel pump (Y23) | ||
| 7 | Unscrew nut (6) and remove bracket (7) with stationary heater fuel pump (Y23) | ||
| 8 | Remove bracket (7) from stationary heater fuel pump (Y23) | ||
| 9 | Install in the reverse order | ||
| Risk of explosion caused by fuel vapors igniting, Risk of poisoning caused by inhaling combustible gases and risk of injury caused by burns during and after operation of heater unit | Do not operate stationary heater, auxiliary heater or engine with heater booster in closed areas or when refueling. Allow heater unit to cool down after operation and wear protective gloves. | AS83.70-Z-0002-01A | |
| 10 | Carry out initial startup of stationary heater using STAR DIAGNOSIS | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
