Remove/install emissions sensor - AR83.40-P-6710CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218 with CODE (581) Comfort automatic air conditioning
Shown on model 204.0
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go. | |

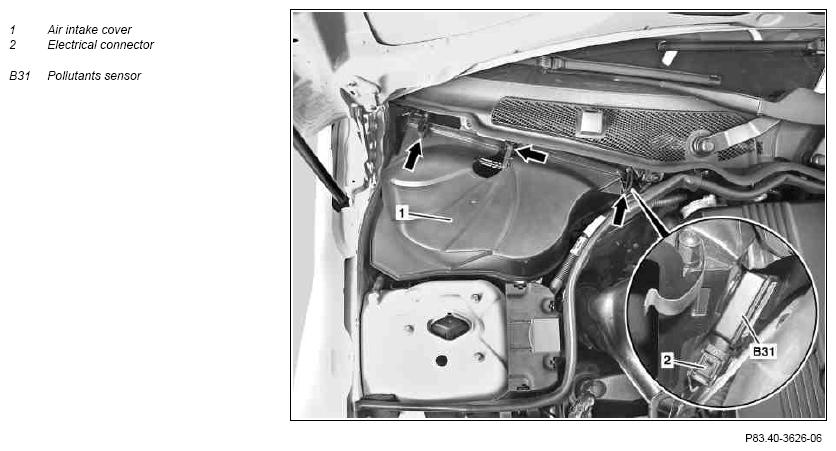

| 2 | Unclip air intake cover (1) (arrows) and remove | ||
| 3 | Rotate pollutant sensor (B31) approx. 30° clockwise, remove and disconnect electrical connector (2) | ||
| 4 | Install in the reverse order |
