Remove/install air distribution actuator motor - AR83.10-P-2027EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218 except CODE (581) Comfort automatic air conditioning
| Remove/install | |||

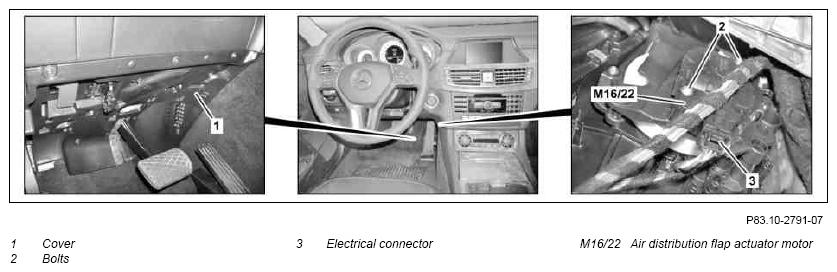

| 1 | Remove cover (1) below dashboard on left | ||
| 2 | Detach electrical connector (3) from air distribution flap actuator motor (M16/22) | ||
| 3 | Remove screws/bolts (2) and remove air distribution flap actuator motor (M16/22) from air conditioner housing | ||
| 4 | Install in the reverse order | ||
| 5 | Teach in and normalize air distribution flap actuator motor (M16/22) using STAR DIAGNOSIS | AD00.00-P-2000-04A |
