Remove/install actuator motor for left footwell flap - AR83.10-P-2006CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218 with CODE (581) Comfort automatic air conditioning

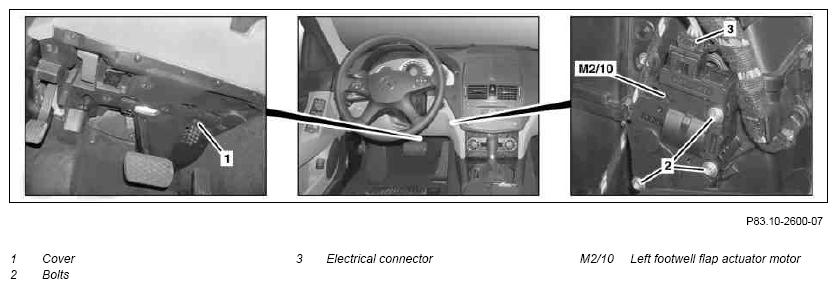

Shown on model 204.0 up to 28.2.2011
| Remove/install | |||
| 1 | Remove cover (1) below dashboard on left | ||
| 2 | Remove bolts (2) and remove left footwell flap actuator motor (M2/10) far enough from the air conditioner housing (A32) until the electrical connector (3) is accessible | ||
| 3 | Detach electrical connector (3) and remove left footwell flap actuator motor (M2/10) | ||
| 4 | Install in the reverse order | ||
| 5 | Teach in and normalize left footwell flap actuator motor (M2/10) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
