Remove and install electronic blower control unit - AR83.25-P-1220EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 212 up to 31.5.10
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove cover below right dashboard | AR68.10-P-1520CW | |

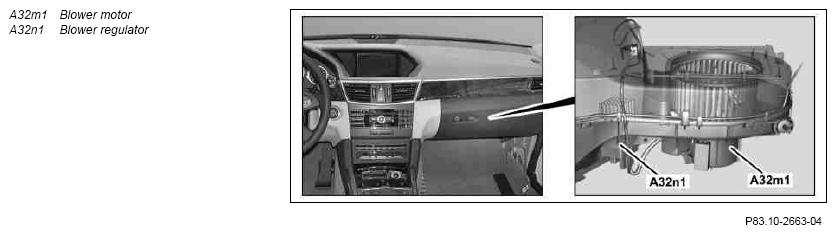

| 2 | Disconnect electrical connector of blower motor (A32m1) at blower regulator (A32n1) | ||
| 3 | Turn blower regulator (A32n1) counterclockwise and remove | ||
| 4 | Install in the reverse order | ||
| 5 | Perform function test |
