Common rail diesel injection (CDI), location of components on vehicle - GF07.16-P-0001-15OMA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651.9 in MODEL 207, 212 (except 212.098/298) as of model year 2014

ENGINE 651.9 in MODEL 218 as of model year 2014

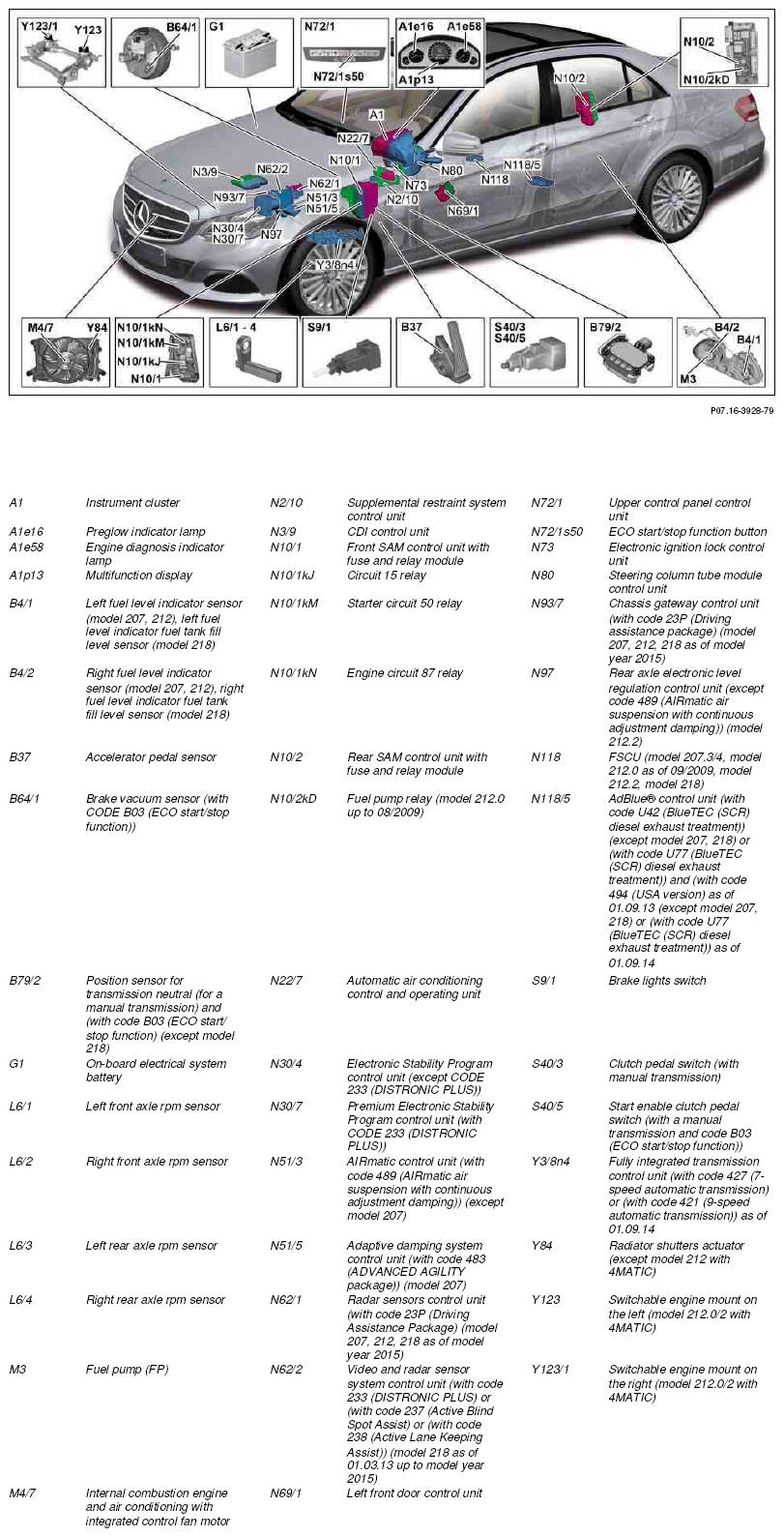

Vehicle view from the front left on model 212.0

Fig 1: Common Rail Diesel Injection Components - Front Left View

Courtesy of MERCEDES-BENZ USA

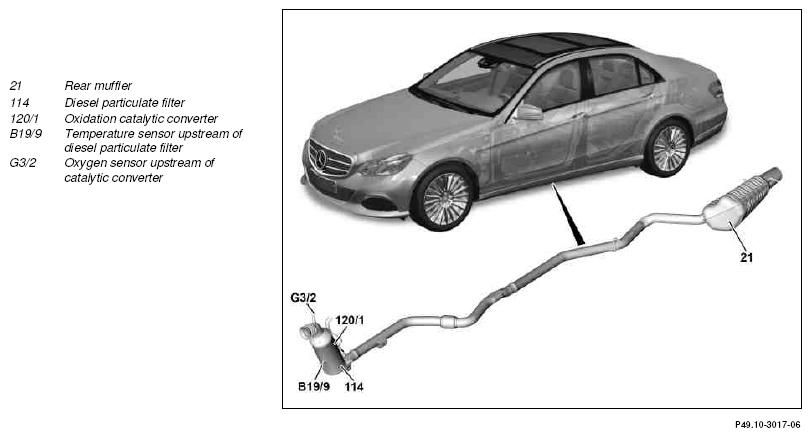

View of exhaust system on model 212.0 (with code (474) Particulate filter)

Fig 2: Exhaust System Components - Shown On Model 212.0 With Code 474 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 3: Exhaust System Components - Shown On Model 212.0 With Code 474 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

View of AdBlue® container (with code U42 (BlueTEC (SCR) diesel exhaust treatment (except model 207, 218)

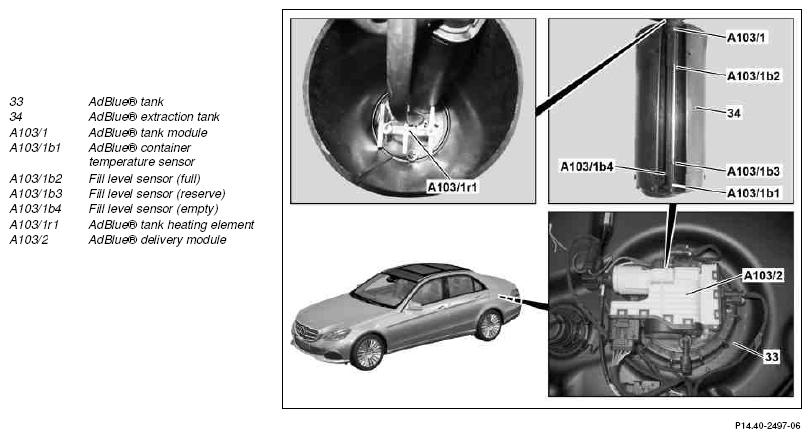

Fig 4: View Of AdBlue® Container

Courtesy of MERCEDES-BENZ USA

Vehicle view from the front left on model 212.0 (with code U42 (BlueTEC (SCR) diesel exhaust treatment)) (except model 207, 218)

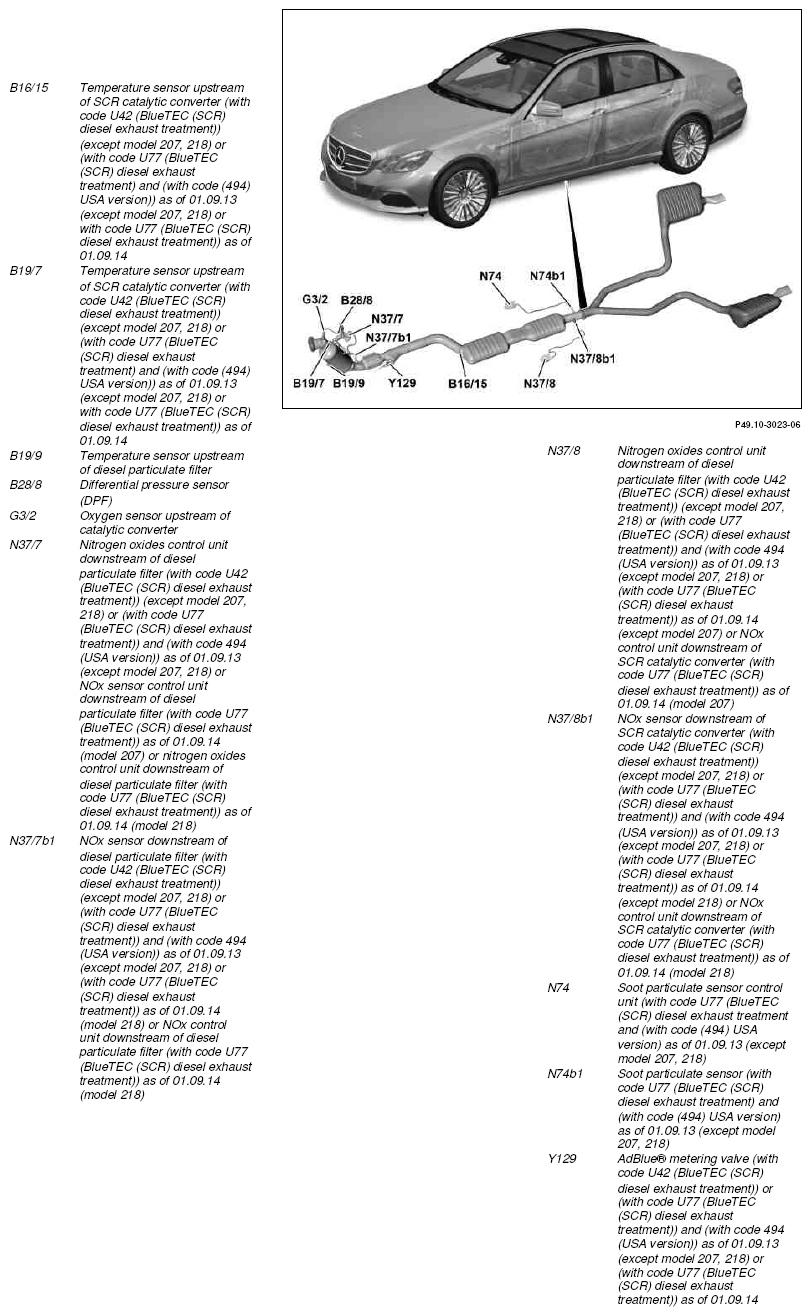

Fig 5: BlueTEC (SCR) Diesel Exhaust Treatment Components - Front Left On Model 212.0 With Code U42 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

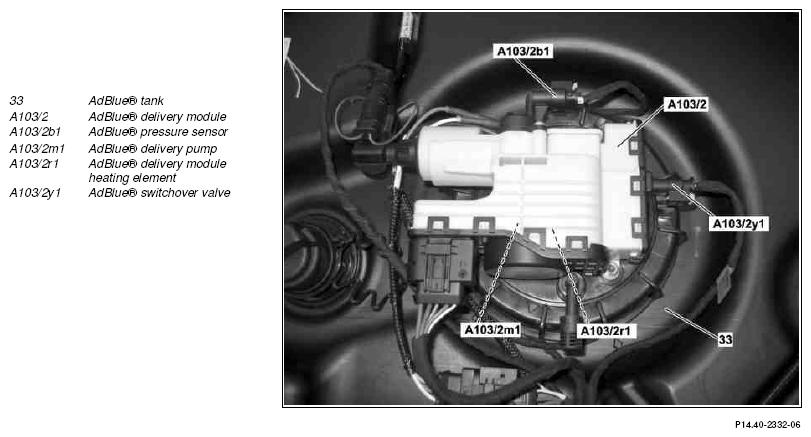

Fig 6: BlueTEC (SCR) Diesel Exhaust Treatment Components - Front Left On Model 212.0 With Code U42 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

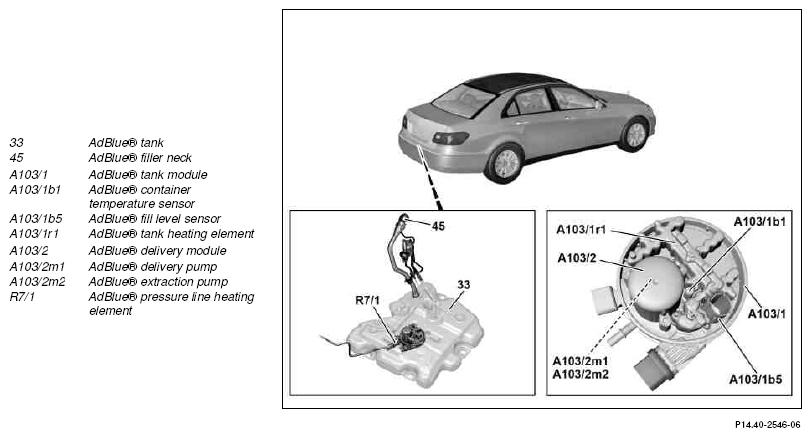

Vehicle view from the rear left on model 212.0 (with code U77 (BlueTEC (SCR) diesel exhaust treatment) and (with code (494) USA version) as of 01.09.13 (except model 207, 218) or (with code U77 (BlueTEC (SCR) diesel exhaust treatment)) as of 01.09.14

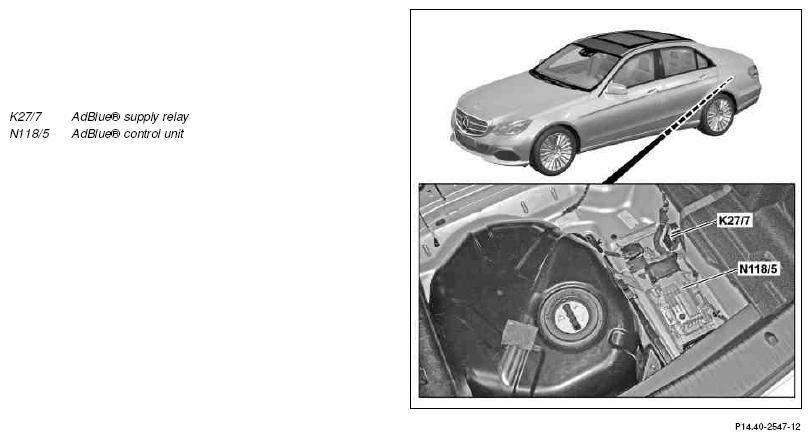

Fig 7: BlueTEC (SCR) Diesel Exhaust Treatment Components - Rear Left On Model 212.0 With Code U77

Courtesy of MERCEDES-BENZ USA

Vehicle view from the front left on model 212.0 (with code U77 (BlueTEC (SCR) diesel exhaust treatment) and (with code (494) USA version) as of 01.09.13 (except model 207, 218) or (with code U77 (BlueTEC (SCR) diesel exhaust treatment)) as of 01.09.14

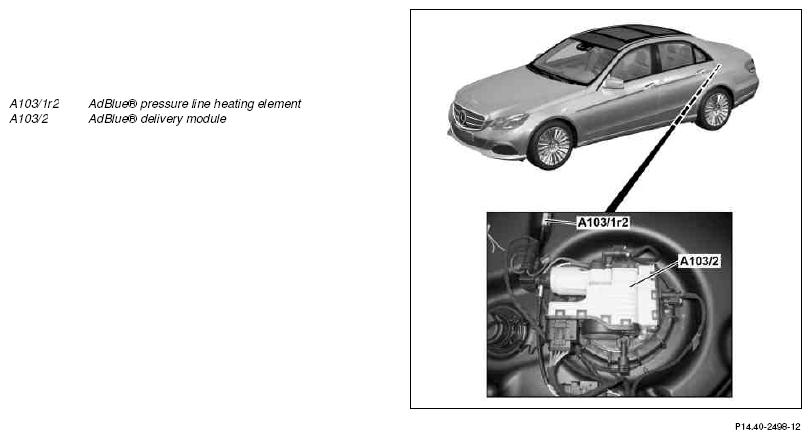

Fig 8: BlueTEC (SCR) Diesel Exhaust Treatment Components - Front Left On Model 212.0 With Code U77

Courtesy of MERCEDES-BENZ USA
