Common rail diesel injection (CDI), location of components on vehicle - GF07.16-P-0001-15OM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651.9 in MODEL 207.3/4, 212.0 (except 212.098), 212.2 (except 212.298), 218 up to model year 2014

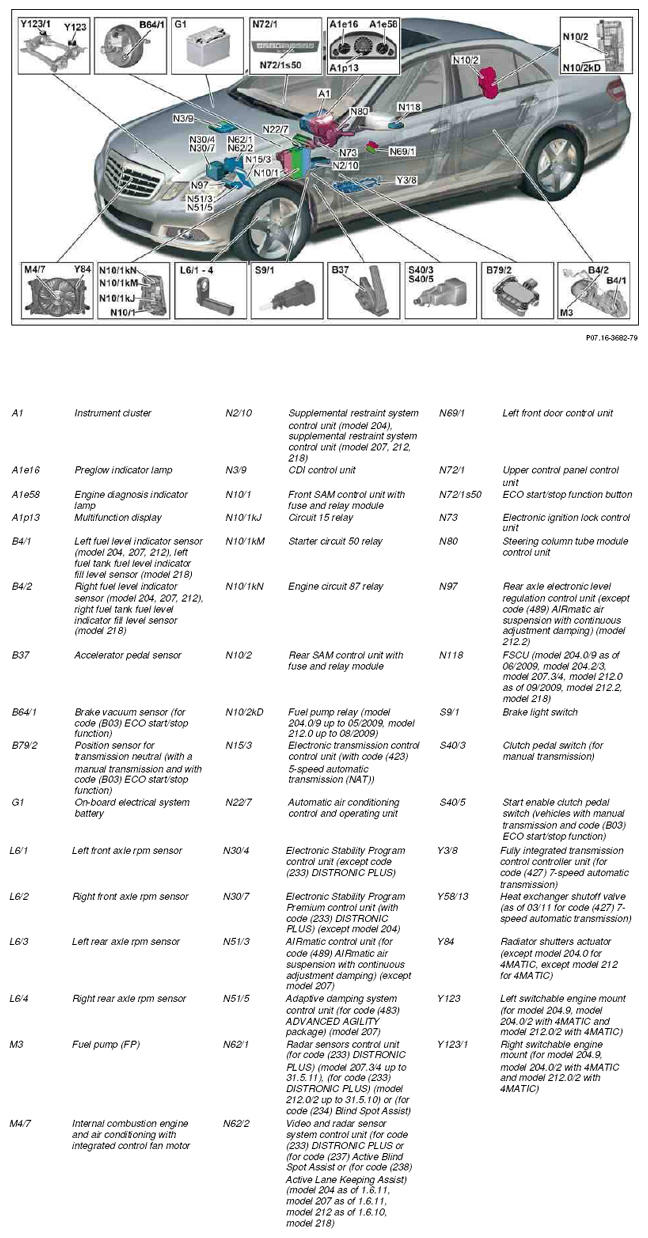

Vehicle view from the front left on model 212.0

Fig 1: Common Rail Diesel Injection Components

Courtesy of MERCEDES-BENZ USA

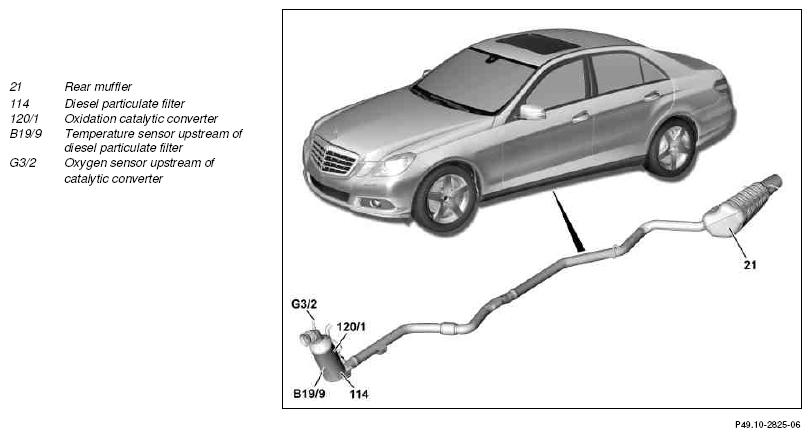

View of exhaust system on model 212.0 (for code (474) Particulate filter)

Fig 2: Exhaust System Components - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

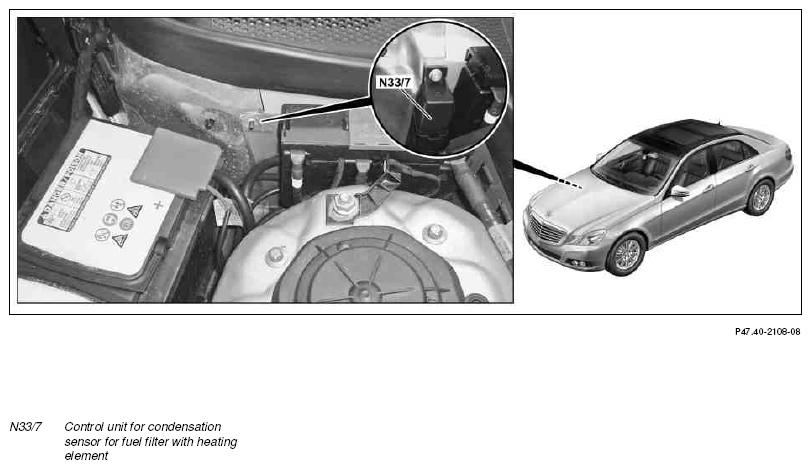

Only for model 212.0/2.with code (71o) Retrofitted heated fuel filter shown on model 212.0

Fig 3: Condensation Sensor Control Unit - Shown On Model 212.0 With Code 71o

Courtesy of MERCEDES-BENZ USA
