Common rail diesel injection (CDI), location of components on vehicle - GF07.16-P-0001-15OGA

ENGINE 642.8 in MODEL 207 as of 6/1/13

ENGINE 642.8 in MODEL 212, 218 as of model year 2014

Vehicle view of model 212.0

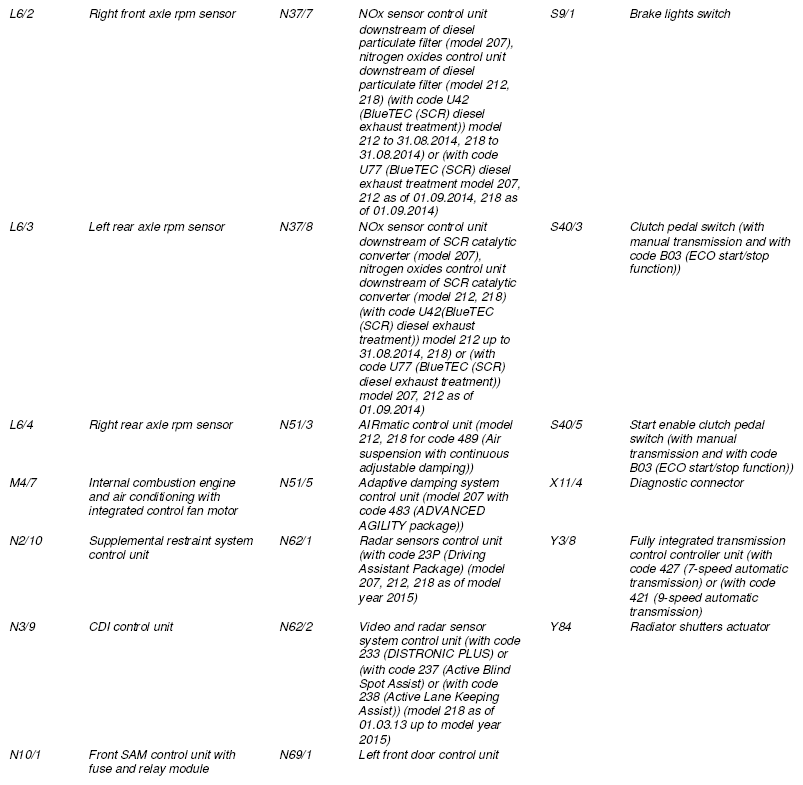

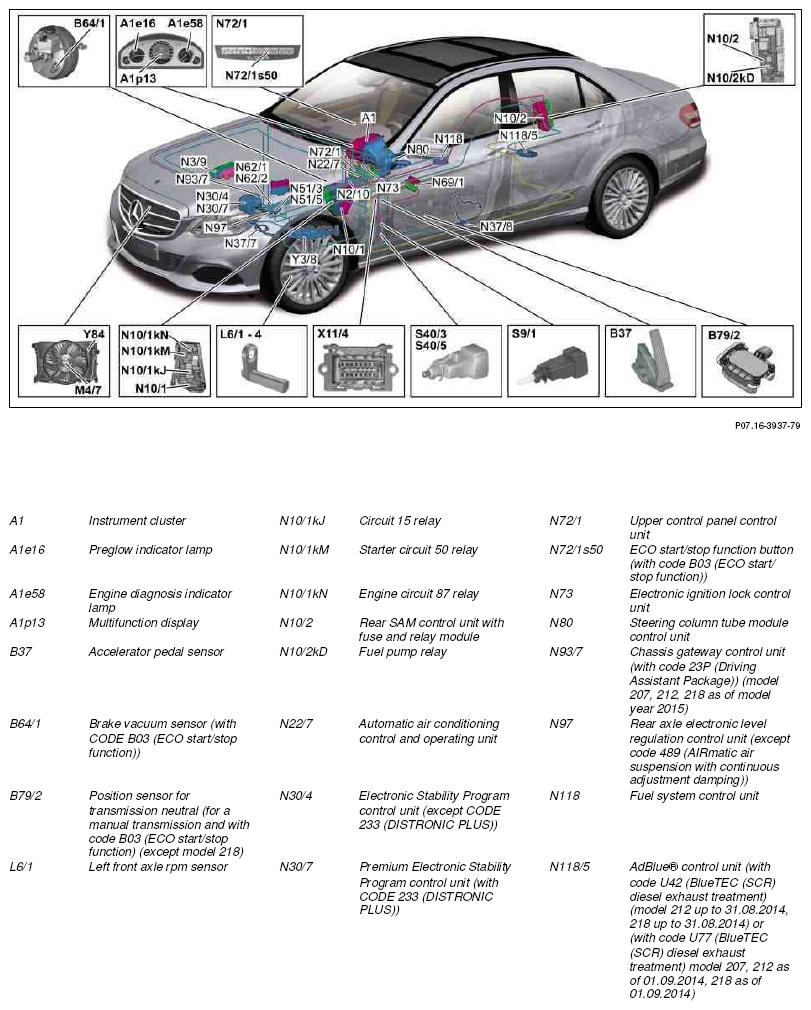

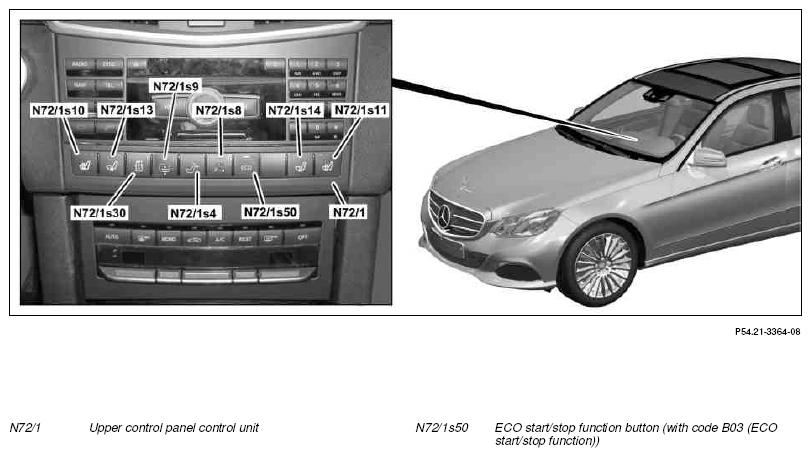

Fig 1: Common Rail Diesel Injection Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Common Rail Diesel Injection Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

View of AdBlue® in model 212.0 (with code U42 (BlueTEC (SCR) diesel exhaust treatment))

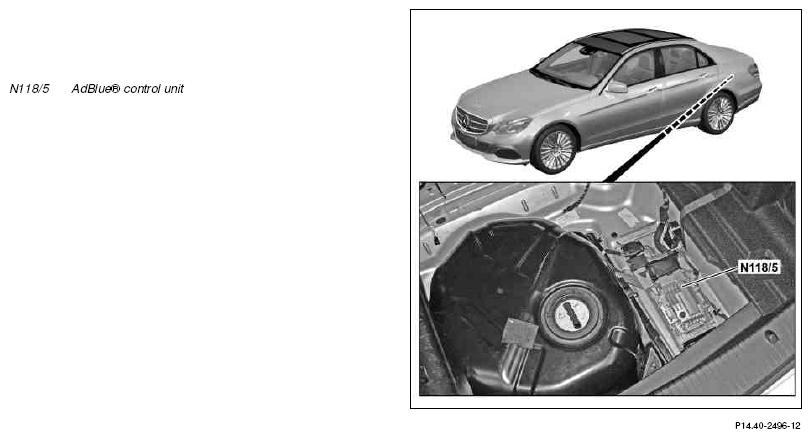

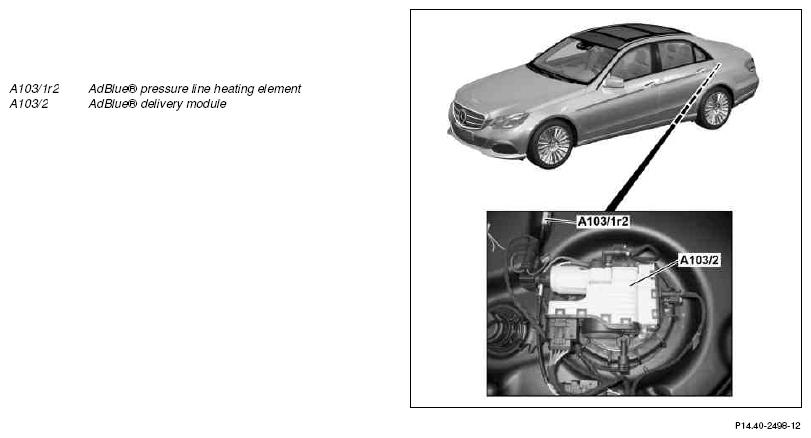

Fig 3: Adblue® Components - Shown On Model 212.0 (1 Of 3)

Courtesy of MERCEDES-BENZ USA

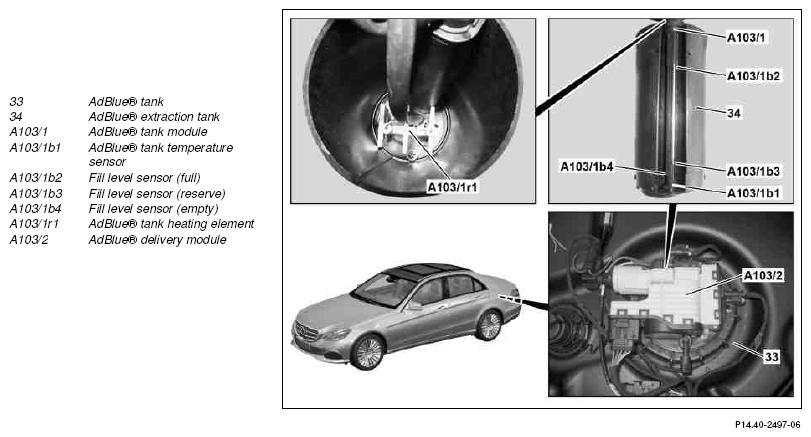

Fig 4: Adblue® Components - Shown On Model 212.0 (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 5: Adblue® Components - Shown On Model 212.0 (3 Of 3)

Courtesy of MERCEDES-BENZ USA

Vehicle view from the rear in model 207 (with code U77 (BlueTec (SCR) diesel exhaust treatment))

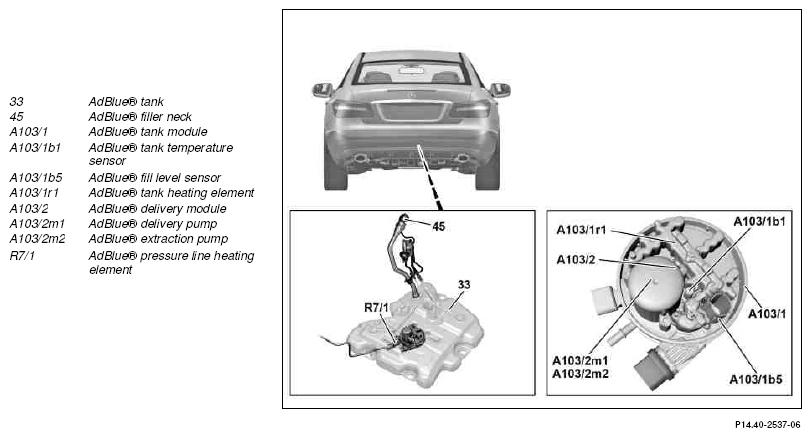

Fig 6: Adblue® Components - Rear View Model 207

Courtesy of MERCEDES-BENZ USA

View of exhaust system model 212 (with code U42 (BlueTEC (SCR) diesel exhaust treatment))

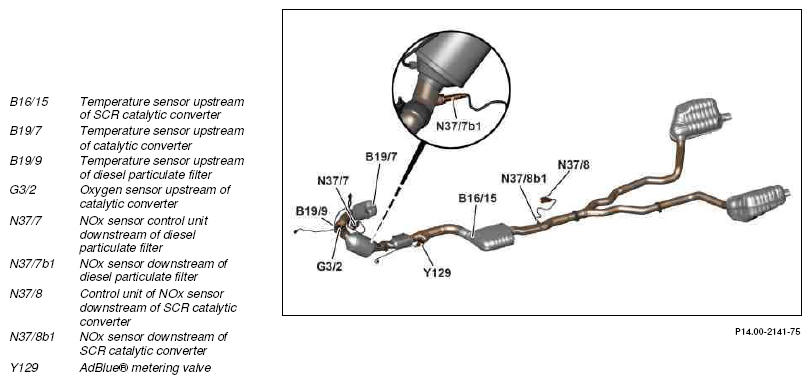

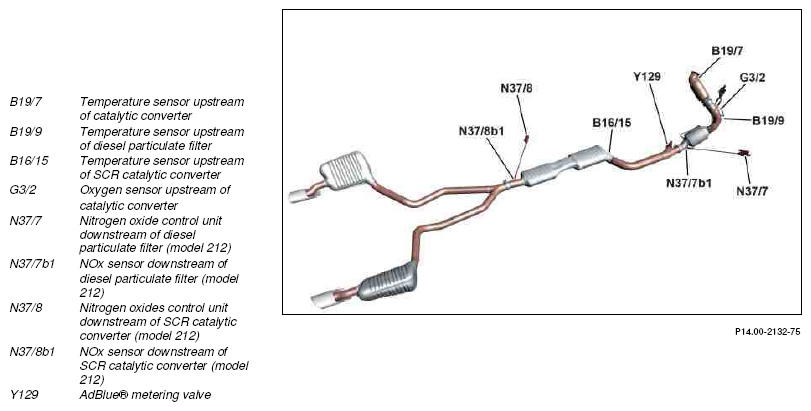

Fig 7: Exhaust System Components - Model 212 With Code U42

Courtesy of MERCEDES-BENZ USA

View of exhaust system model 207 (with code U77 (BlueTEC (SCR) diesel exhaust treatment))

Fig 8: Exhaust System Components - Model 207 With Code U77

Courtesy of MERCEDES-BENZ USA

View of the fuel tank on model 212.0

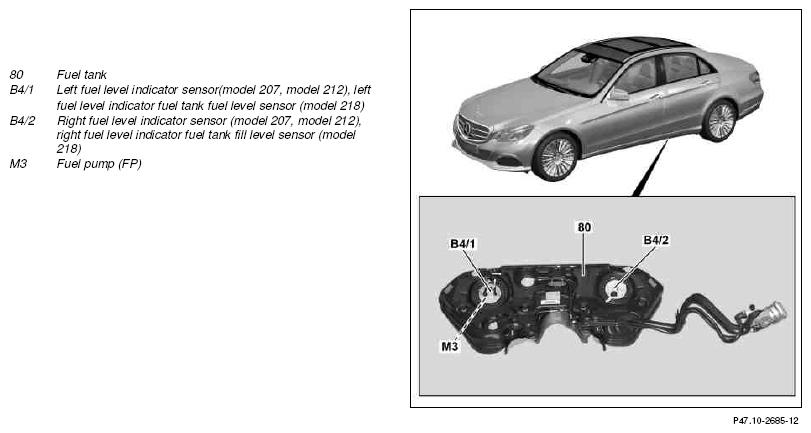

Fig 9: Fuel Tank Components - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

View of model 212.0 from the front left

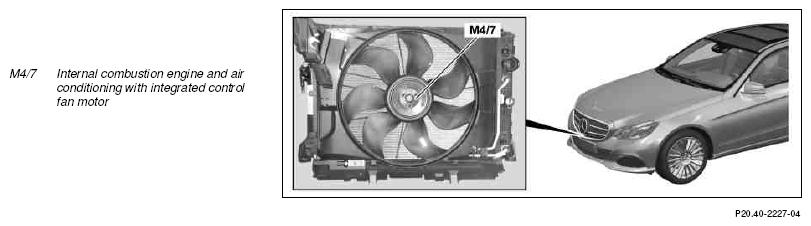

Fig 10: Internal Combustion Engine And Air Conditioning With Integrated Control Fan Motor - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

View of model 212.0 from the front left

Fig 11: View Of Engine - Front Left

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0

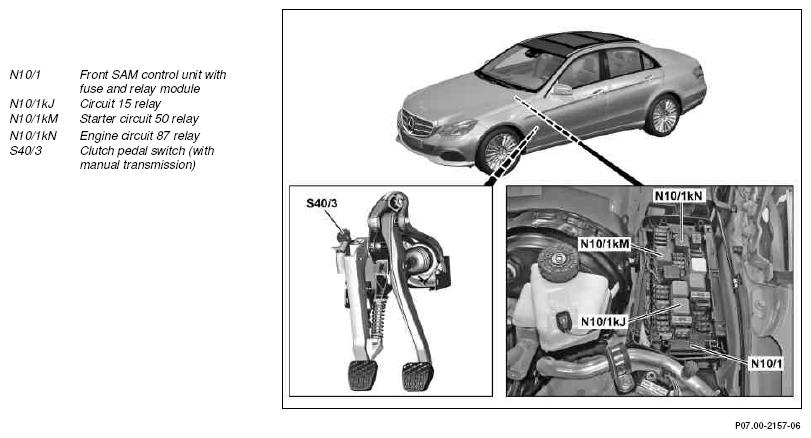

Fig 12: Front SAM Control Unit With Fuse And Relay Module - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA
