Common rail diesel injection (CDI), location of components on vehicle - GF07.16-P-0001-15OG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642.8 in MODEL 204, 212, 218 up to model year 2014

ENGINE 642.8 in MODEL 207 up to 5/31/13

Shown on model 212.2 from the front left

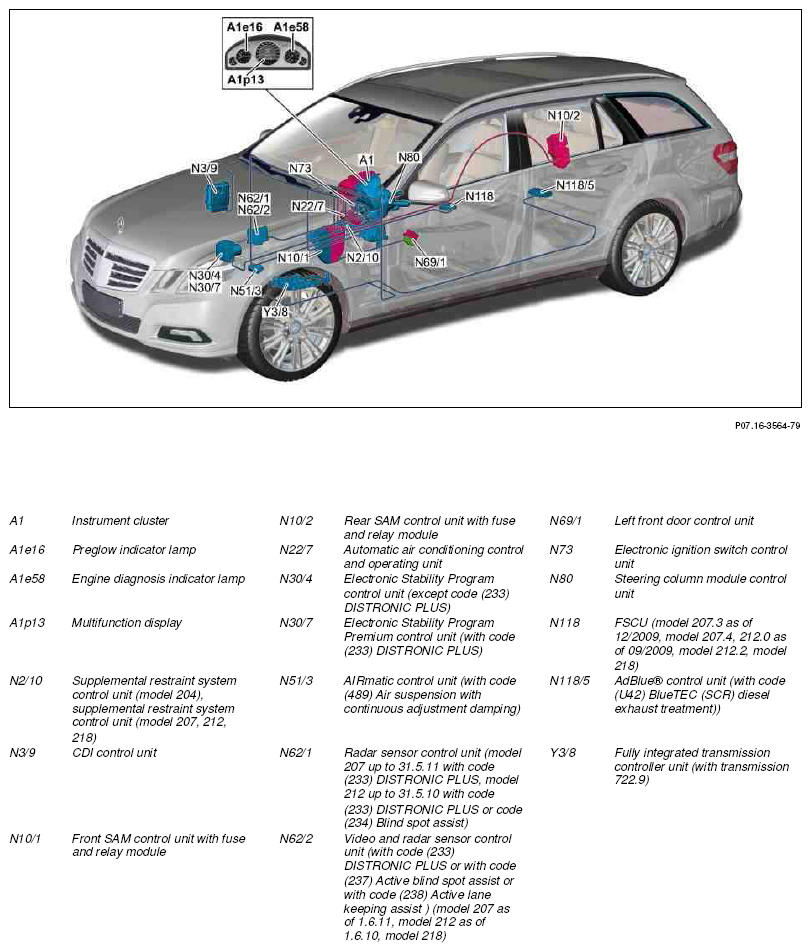

Fig 1: Common Rail Diesel Injection Components - Shown On Model 212.2

Courtesy of MERCEDES-BENZ USA

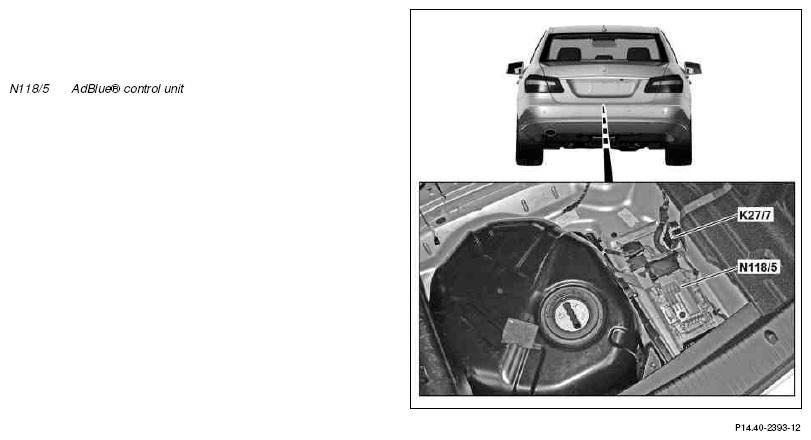

Shown on model 212.0 from the rear (with code (U42) BlueTEC (SCR) diesel exhaust treatment)

Fig 2: Diesel Exhaust Treatment Components - Shown On Model 212.0 From The Rear (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 3: Diesel Exhaust Treatment Components - Shown On Model 212.0 From The Rear (2 Of 2)

Courtesy of MERCEDES-BENZ USA

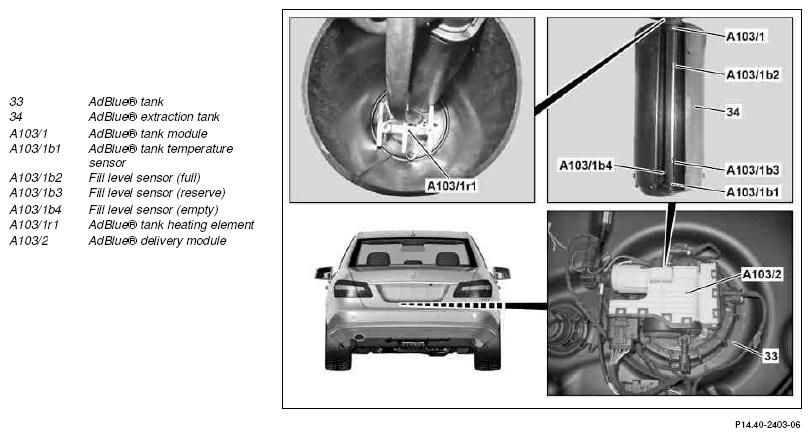

Shown on model 212.0 from the right rear (with code (U42) BlueTEC (SCR) diesel exhaust treatment

Fig 4: Diesel Exhaust Treatment Components - Shown On Model 212.0 From The Right Rear (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 5: Diesel Exhaust Treatment Components - Shown On Model 212.0 From The Right Rear (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on the exhaust system on model 212.0 (with code (474) Particulate filter)

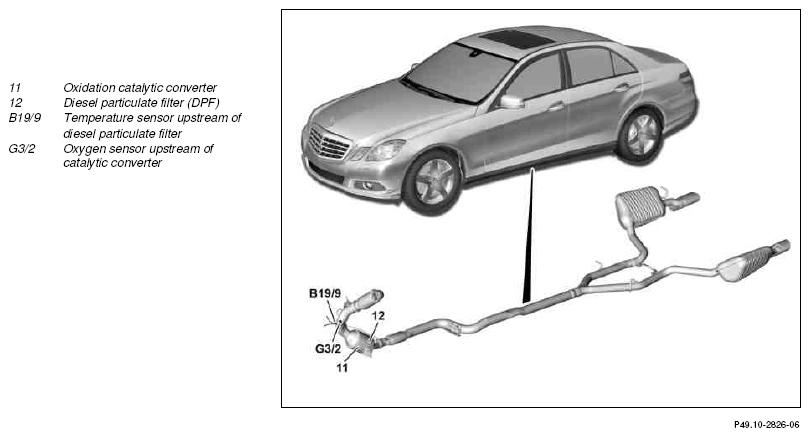

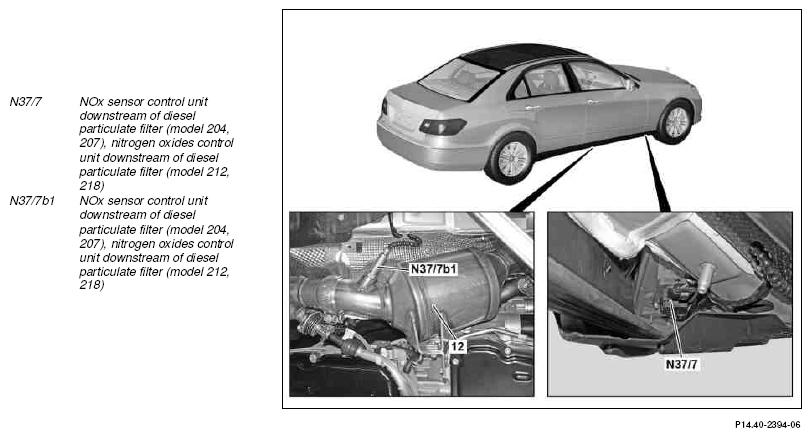

Fig 6: Exhaust System Components - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

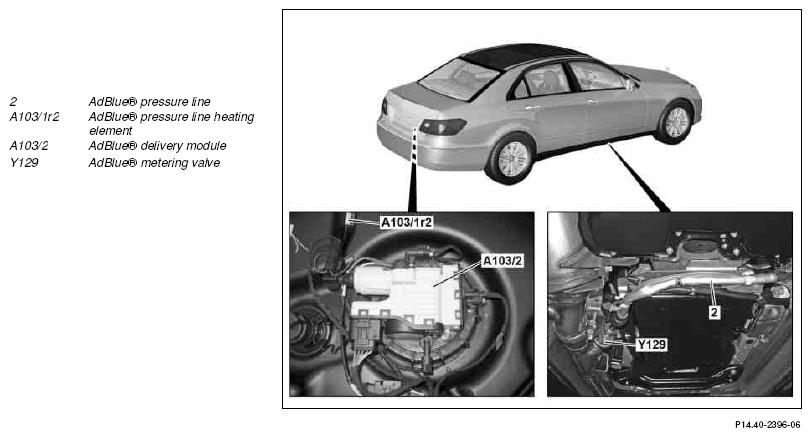

Shown on model 212 from the right rear (with code (U42) BlueTEC (SCR) diesel exhaust treatment

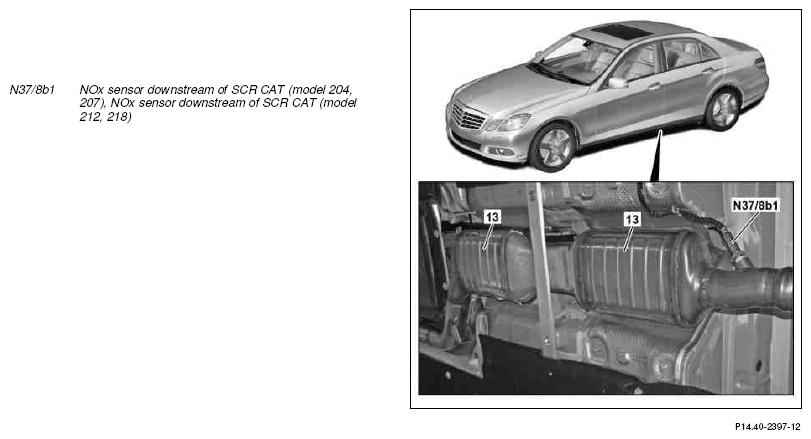

Fig 7: Diesel Exhaust Treatment Components - Shown On Model 212 From The Right Rear With Code U42

Courtesy of MERCEDES-BENZ USA

The nitrogen oxides control unit downstream of SCR CAT (N37/8) (model 212, 218), NOx sensor control unit downstream of SCR CAT (model 204, 207) is inseparably connected with the NOx sensor downstream of SCR CAT and located on the underfloor.

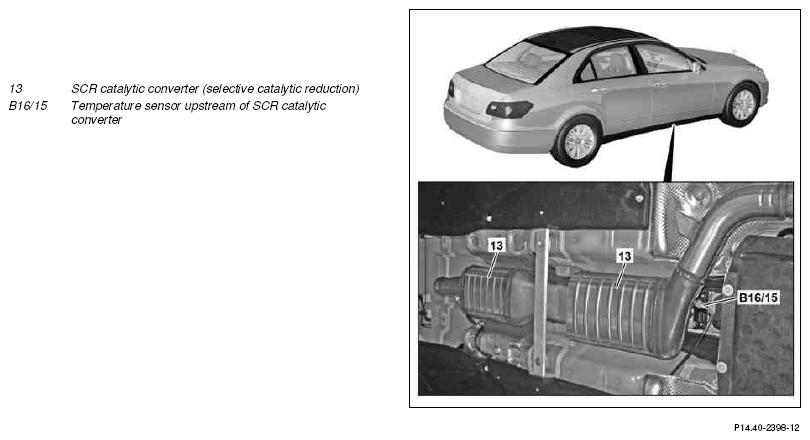

Shown on model 212 from the front left (with code (U42) BlueTEC (SCR) diesel exhaust treatment)

Fig 8: Diesel Exhaust Treatment Components - Shown On Model 212 From The Front Left

Courtesy of MERCEDES-BENZ USA

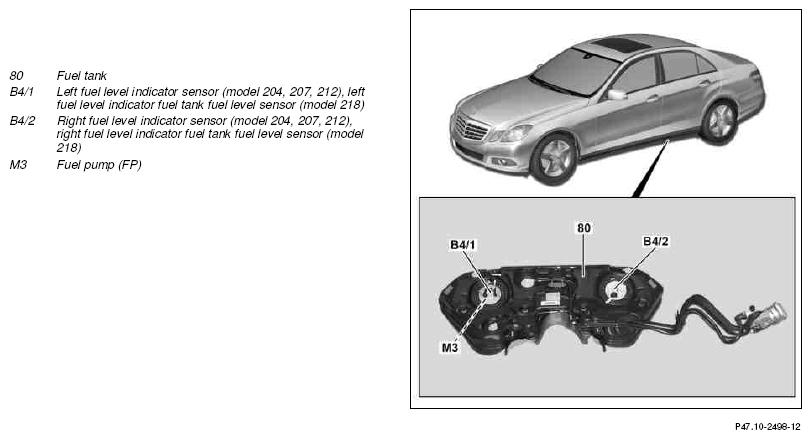

Shown on the fuel tank on model 212.0

Fig 9: Fuel Tank Components - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

Shown: driver footwell on model 212

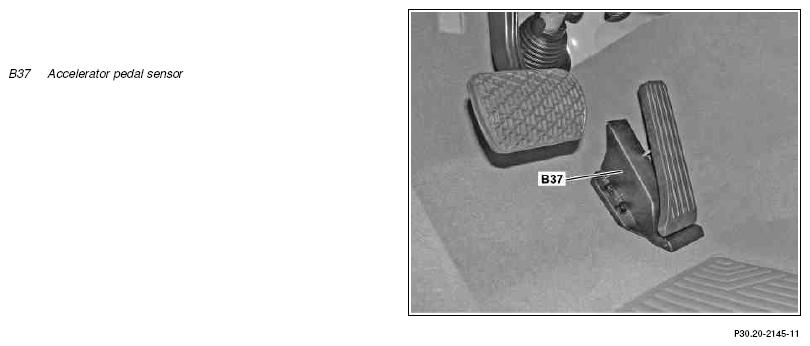

Fig 10: Accelerator Pedal Sensor - Shown On Model 212

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0 from the front left

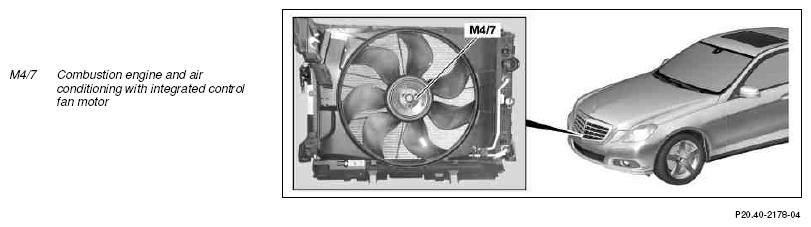

Fig 11: Combustion Engine And Air Conditioning With Integrated Control Fan Motor

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0 from the front left

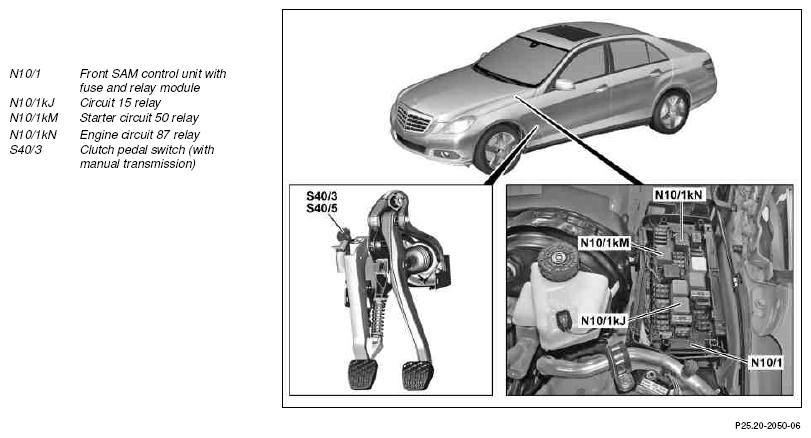

Fig 12: Front SAM Control Unit With Fuse And Relay Module - Shown On Model 212.0

Courtesy of MERCEDES-BENZ USA

Shown on trunk on model 212.0 from the rear

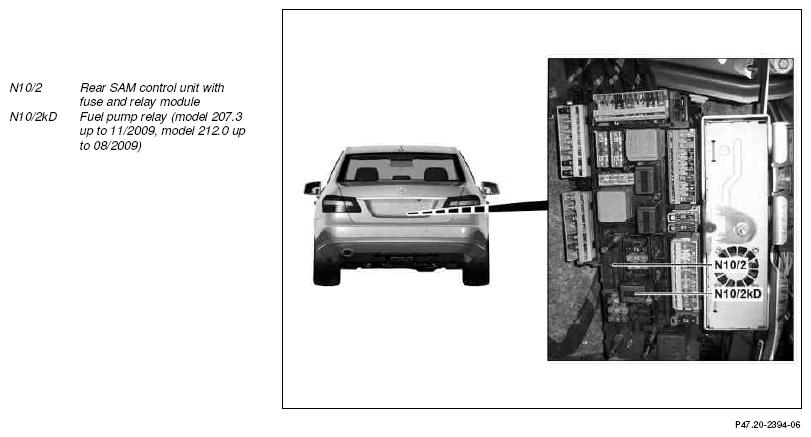

Fig 13: Rear SAM Control Unit With Fuse And Relay Module - Shown In Trunk On Model 212.0

Courtesy of MERCEDES-BENZ USA

Shown: driver footwell on model 212

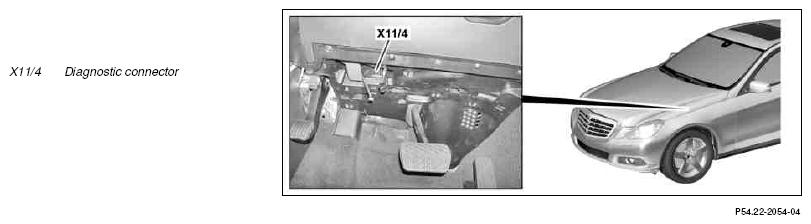

Fig 14: Diagnostic Connector - Model 212 Driver Footwell

Courtesy of MERCEDES-BENZ USA

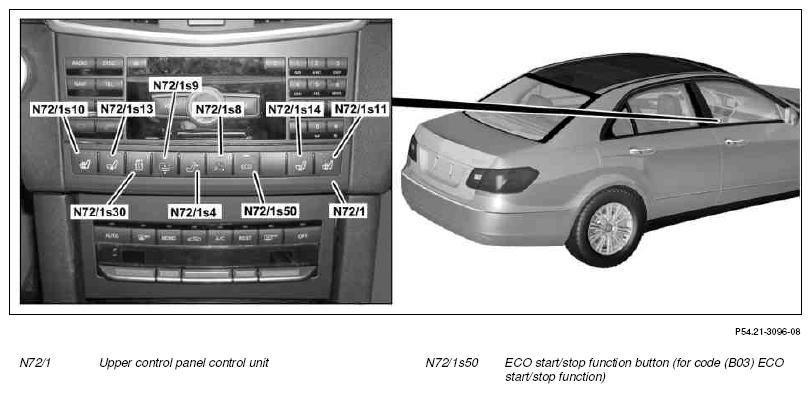

Shown on model 212

Fig 15: Upper Control Panel Control Unit - Shown On Model 212

Courtesy of MERCEDES-BENZ USA
