Common rail diesel injection (CDI), location of components on engine - GF07.16-P-0001-14OM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651.9 in MODEL 204, 207, 212.0 (except 212.098), 212.2 (except 212.298), 218

View of engine from rear left

Fig 1: Common Rail Diesel Injection Components - Rear Left Engine View
G10242160Courtesy of MERCEDES-BENZ USA

View of engine from left

Fig 2: Common Rail Diesel Injection Components - Left Engine View
G10242161Courtesy of MERCEDES-BENZ USA

View of engine from front top

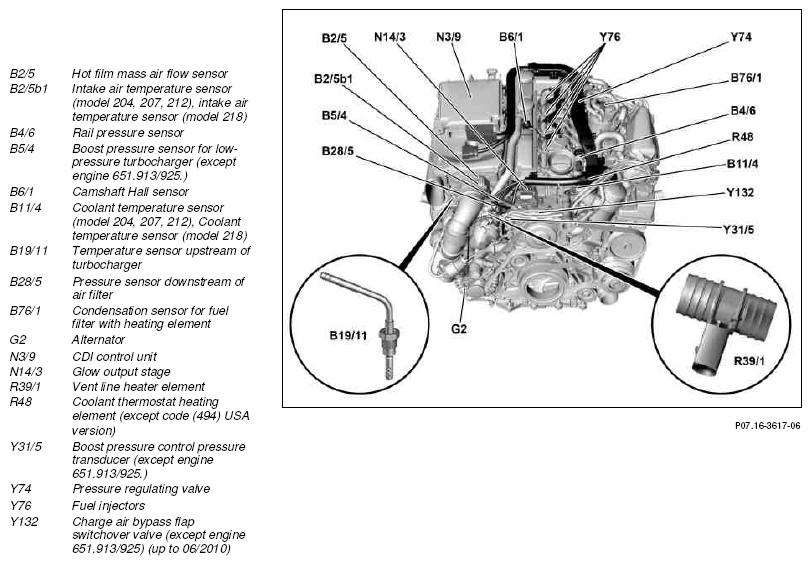

Fig 3: Common Rail Diesel Injection Components - Front Top Engine View
G10242162Courtesy of MERCEDES-BENZ USA

View of engine from rear left

Fig 4: Common Rail Diesel Injection Components - Rear Left Engine View
G10242163Courtesy of MERCEDES-BENZ USA

View of the engine from the rear

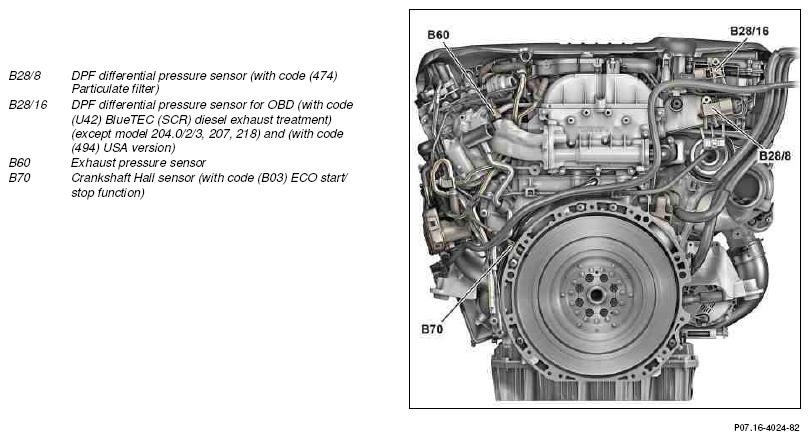

Fig 5: Common Rail Diesel Injection Components - Rear Engine View
G10242164Courtesy of MERCEDES-BENZ USA

View of engine from above (except code (494) USA version)

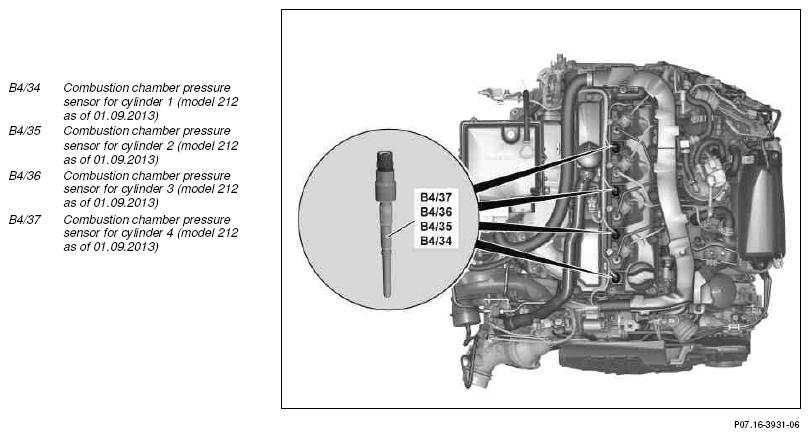

Fig 6: Common Rail Diesel Injection Components - Above Engine View (Except Code 494 USA Version)
G10242165Courtesy of MERCEDES-BENZ USA

View of engine from rear left

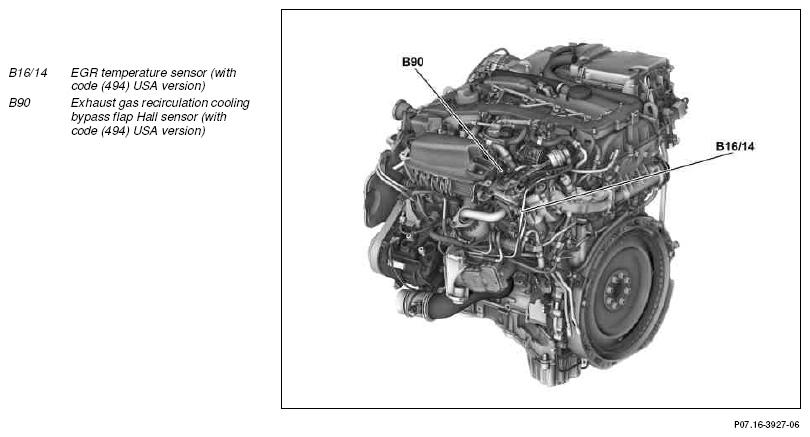

Fig 7: Common Rail Diesel Injection Components - Rear Left Engine View
G10242166Courtesy of MERCEDES-BENZ USA

View of engine from right

Fig 8: Common Rail Diesel Injection Components - Right Engine View
G10242167Courtesy of MERCEDES-BENZ USA

Shown: engine from the left

Fig 9: Common Rail Diesel Injection Components - Left Engine View
G10242168Courtesy of MERCEDES-BENZ USA

Shown: engine from the upper rear

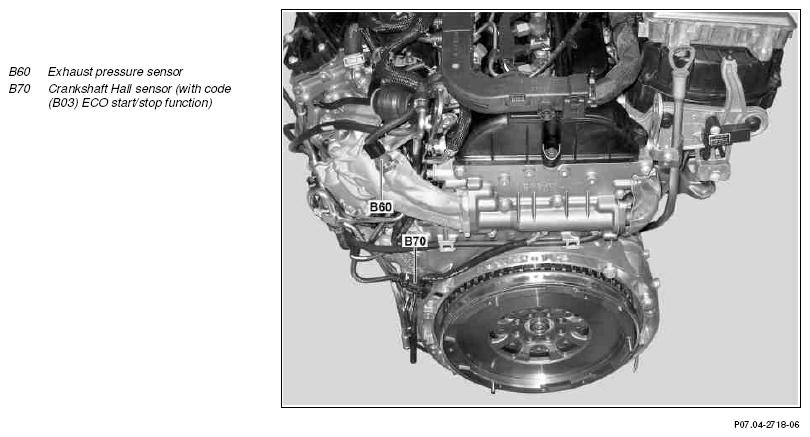

Fig 10: Common Rail Diesel Injection Components - Upper Rear Engine View
G10242169Courtesy of MERCEDES-BENZ USA

View of engine from rear left

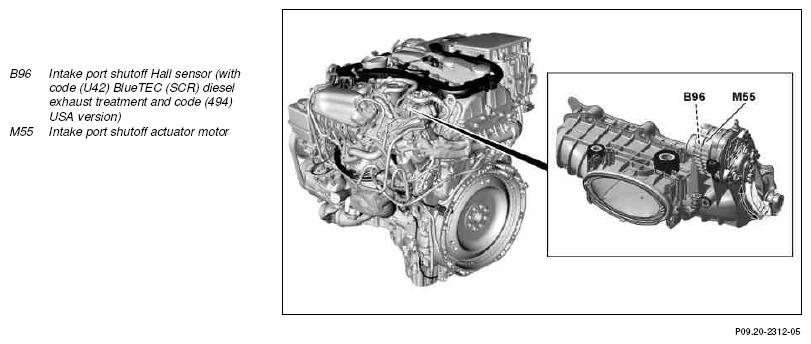

Fig 11: Common Rail Diesel Injection Components - Rear Left Engine View
G10242170Courtesy of MERCEDES-BENZ USA
