Common rail diesel injection (CDI), location of components on engine - GF07.16-P-0001-14OGA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642.8 in MODEL 207 as of 6/1/13

ENGINE 642.8 in MODEL 212, 218 as of model year 2014

View of the engine from the rear

Fig 1: Common Rail Diesel Injection Components - Rear Engine View
G10242148Courtesy of MERCEDES-BENZ USA

View of engine from front top

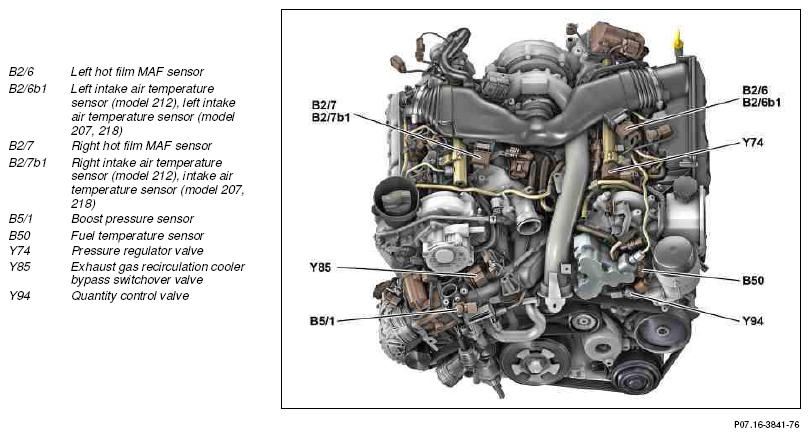

Fig 2: Common Rail Diesel Injection Components - Front Top Engine View (1 Of 2)
G10242149Courtesy of MERCEDES-BENZ USA
Fig 3: Common Rail Diesel Injection Components - Front Top Engine View (2 Of 2)
G10242150Courtesy of MERCEDES-BENZ USA

View of the engine from the rear

Fig 4: Common Rail Diesel Injection Components - Rear Engine View
G10242151Courtesy of MERCEDES-BENZ USA

Engine view from below

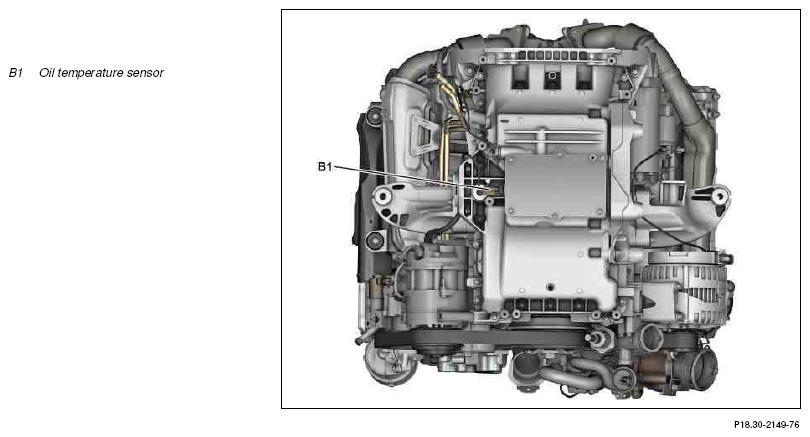

Fig 5: Common Rail Diesel Injection Components - Below Engine View
G10242152Courtesy of MERCEDES-BENZ USA

View of engine from right

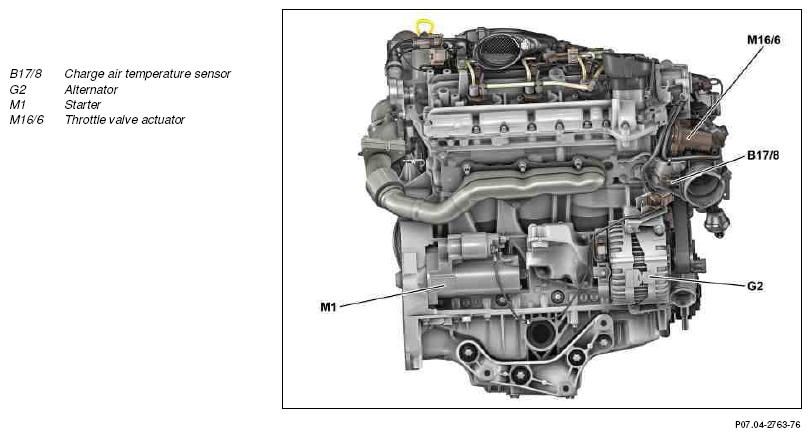

Fig 6: Common Rail Diesel Injection Components - Right Engine View
G10242153Courtesy of MERCEDES-BENZ USA

View of the engine from above

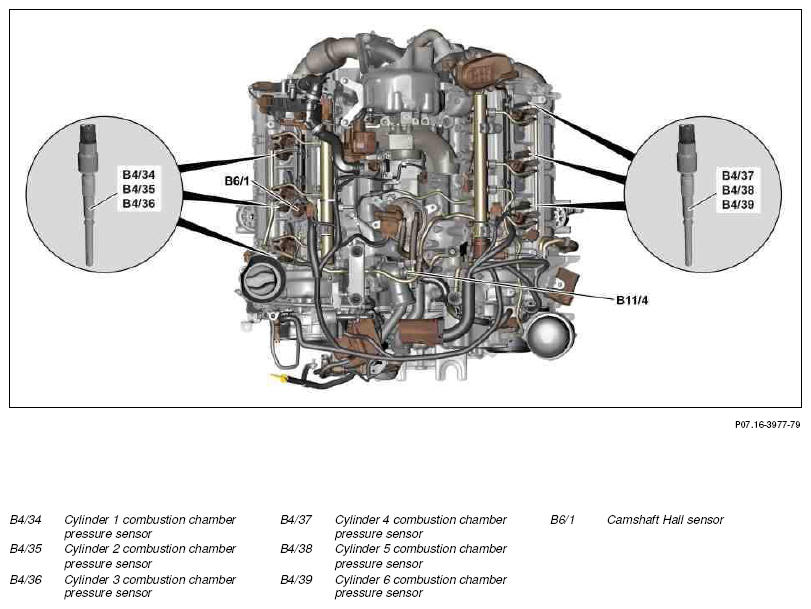

Fig 7: Common Rail Diesel Injection Components - Above Engine View
G10242154Courtesy of MERCEDES-BENZ USA

View of engine from front left

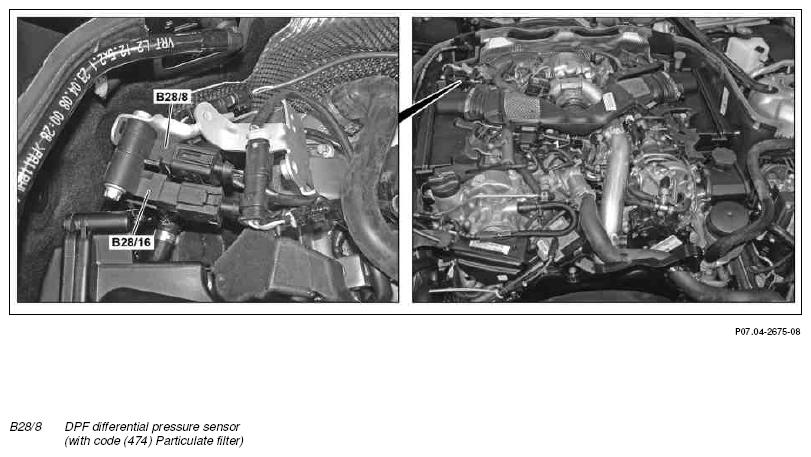

Fig 8: Common Rail Diesel Injection Components - Front Left Engine View
G10242155Courtesy of MERCEDES-BENZ USA

View of engine from rear left

Fig 9: Common Rail Diesel Injection Components - Rear Left Engine View
G10242156Courtesy of MERCEDES-BENZ USA

View of the engine from above

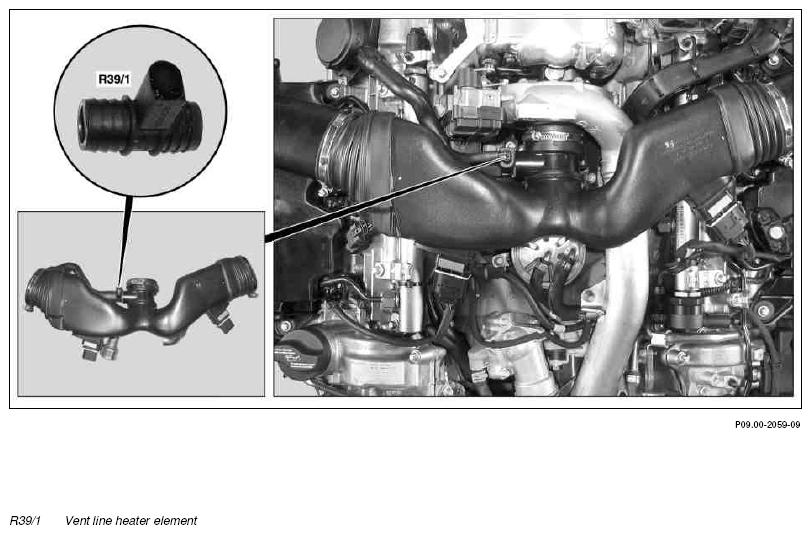

Fig 10: Common Rail Diesel Injection Components - Above Engine View
G10242157Courtesy of MERCEDES-BENZ USA

View of engine from rear left

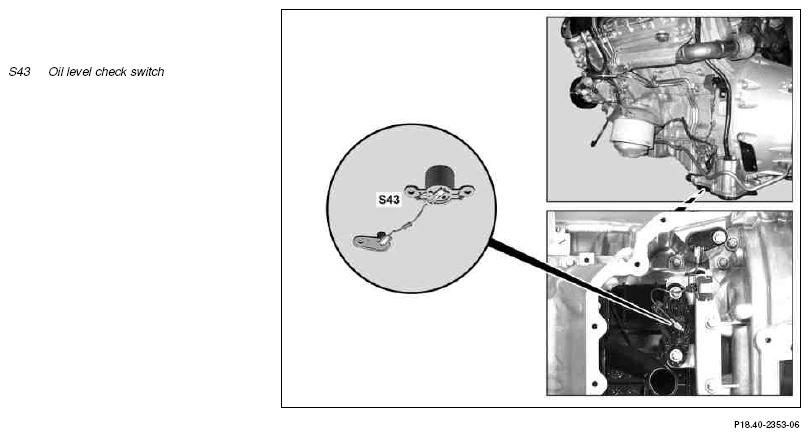

Fig 11: Common Rail Diesel Injection Components - Rear Left Engine View
G10242158Courtesy of MERCEDES-BENZ USA

View of the engine from the front

Fig 12: Common Rail Diesel Injection Components - Front Engine View
G10242159Courtesy of MERCEDES-BENZ USA
