Common Rail Diesel Injection (CDI), block diagram - GF07.16-P-0001-08OMA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651.9 in MODEL 207, 212 (except 212.098/298) as of model year 2014

Direct networking block diagram

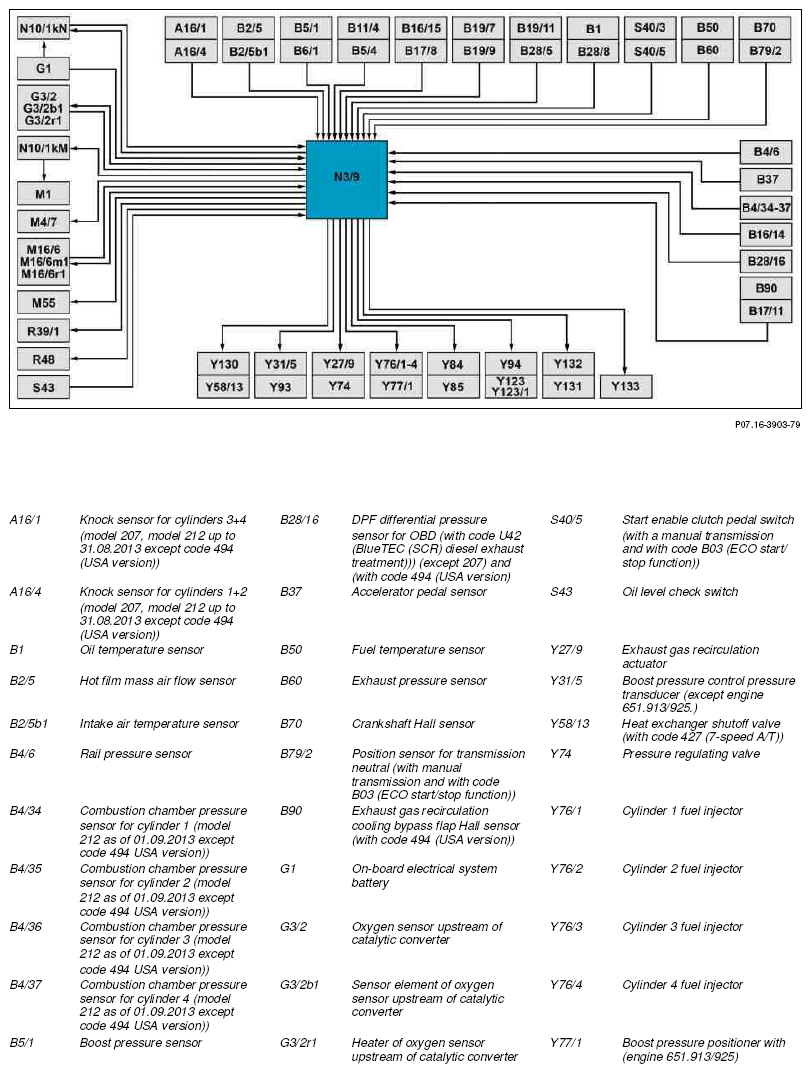

Fig 1: Direct Networking Block Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

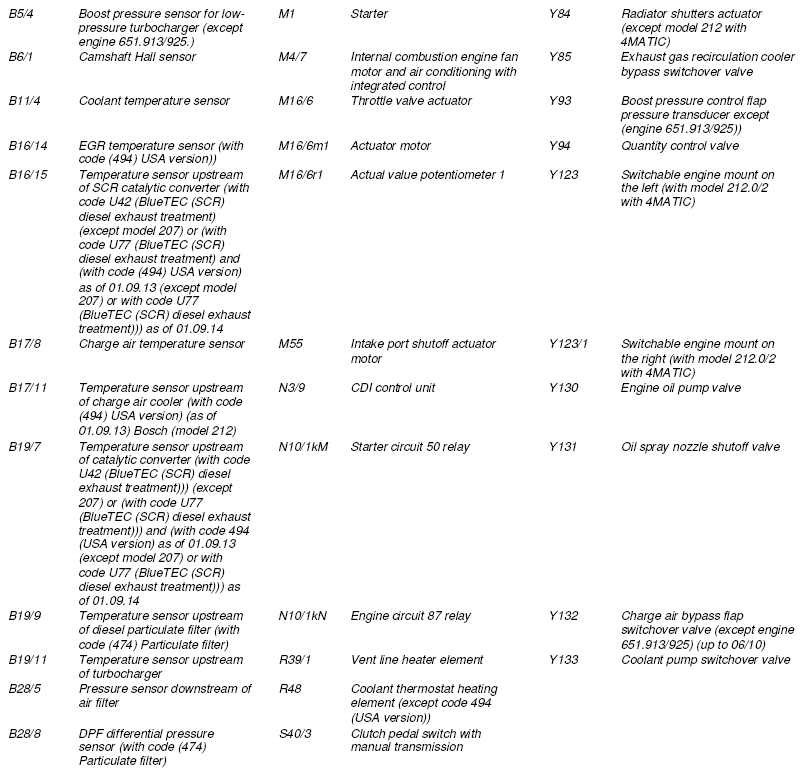

Fig 2: Direct Networking Block Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Block diagram for CAN networking

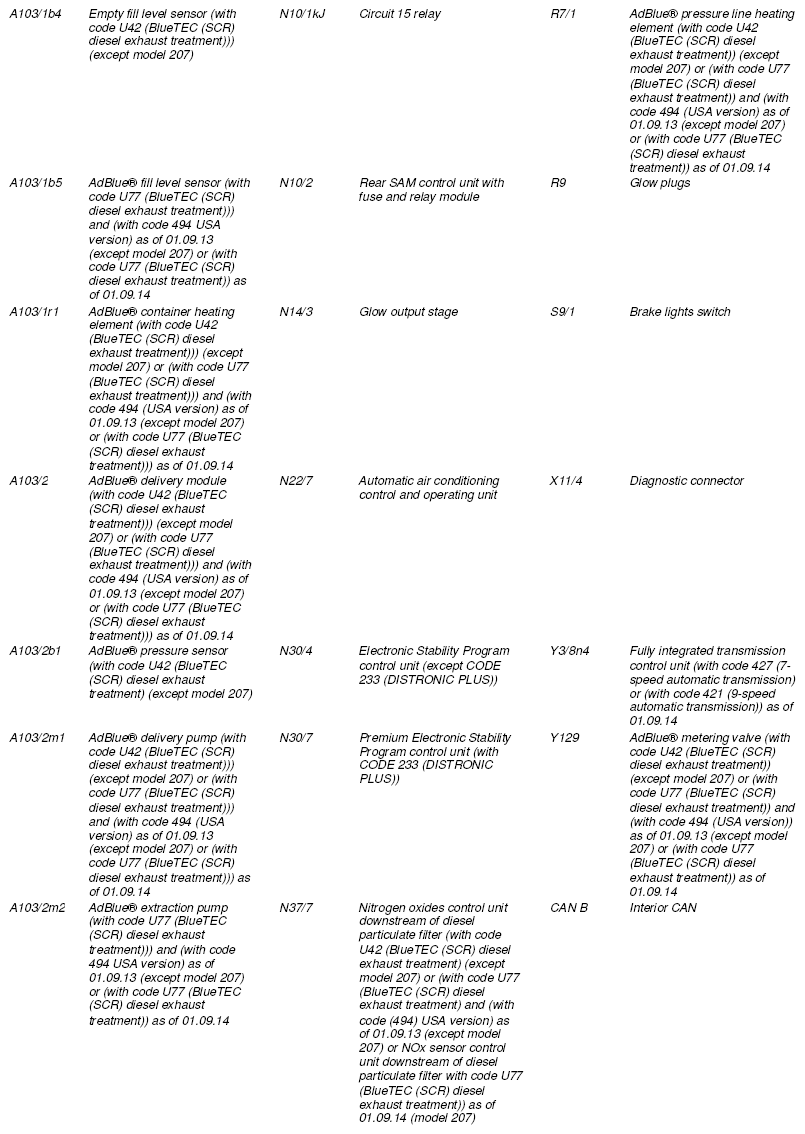

Fig 3: CAN Networking Block Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

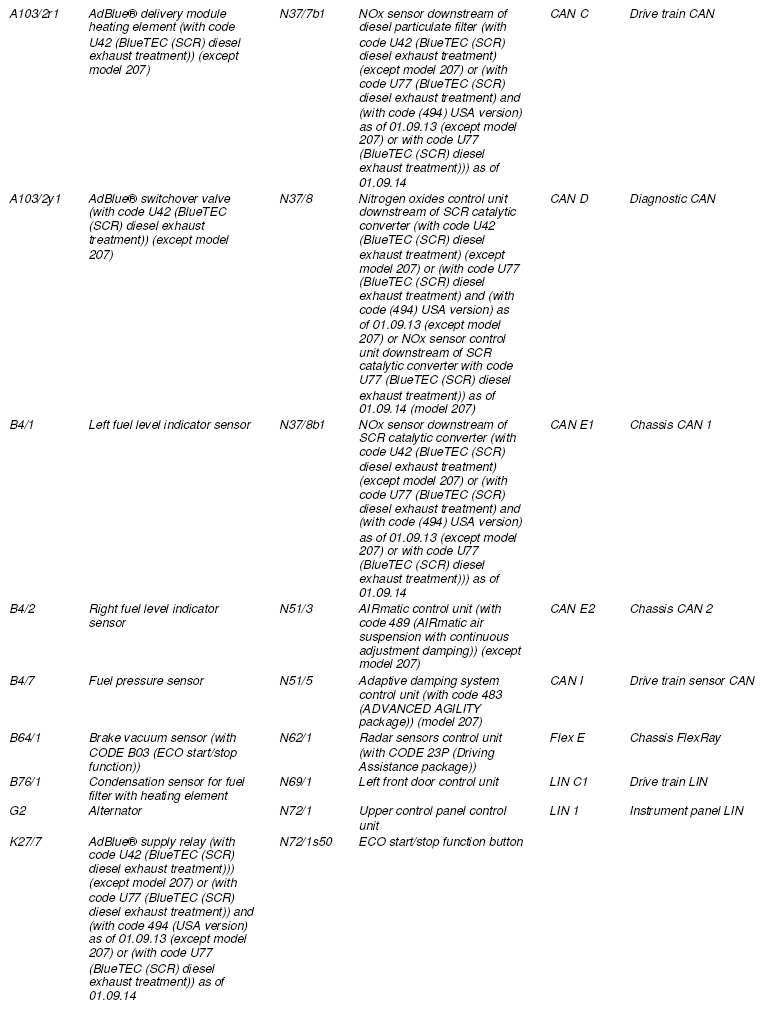

Fig 4: CAN Networking Block Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 5: CAN Networking Block Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
