Common Rail Diesel Injection (CDI), block diagram - GF07.16-P-0001-08OGA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642.8 in MODEL 207 as of 6/1/13

ENGINE 642.8 in MODEL 212 as of model year 2014

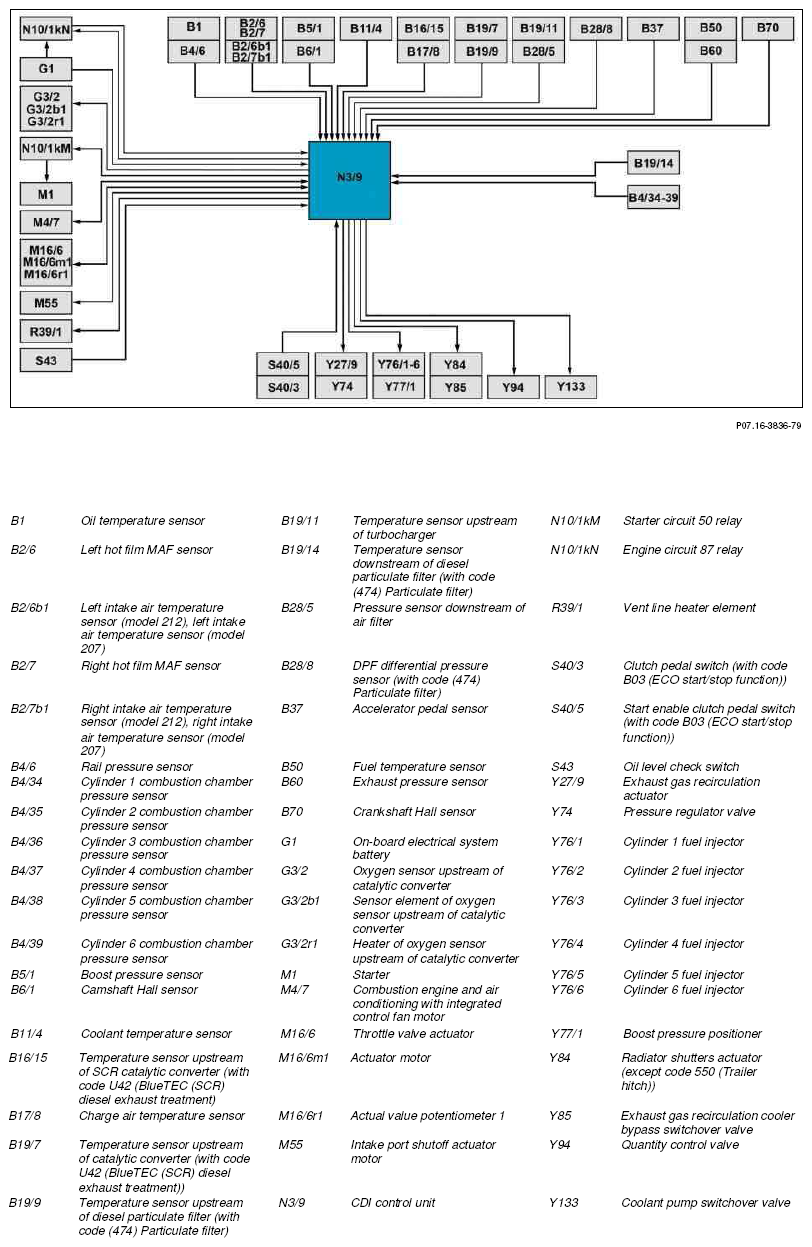

Block diagram for direct networking (model 207, 212 up to 31.08.2014)

Fig 1: Common Rail Diesel Injection (CDI) Block Diagram

G10242118

Courtesy of MERCEDES-BENZ USA

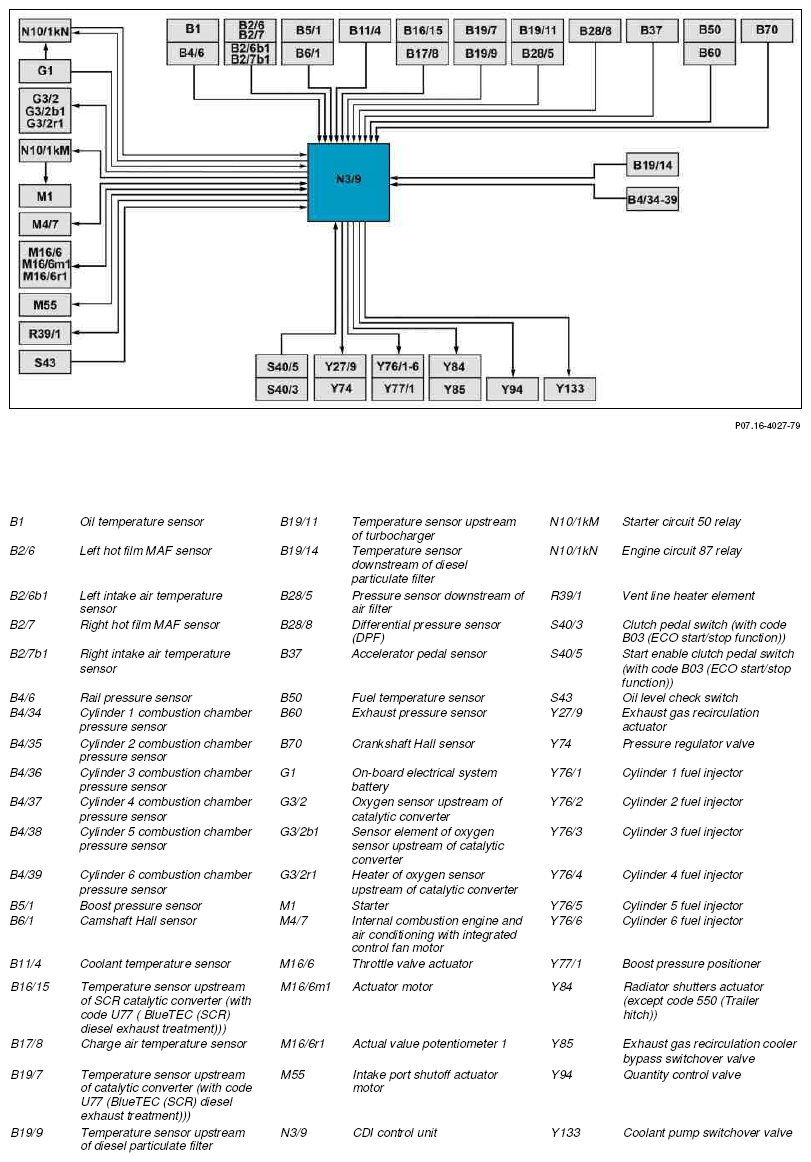

Block diagram for direct networking (model 212 as of 01.09.2014)

Fig 2: Direct Networking Block Diagram - Shown On Model 212 As Of 01.09.2014

G10242119

Courtesy of MERCEDES-BENZ USA

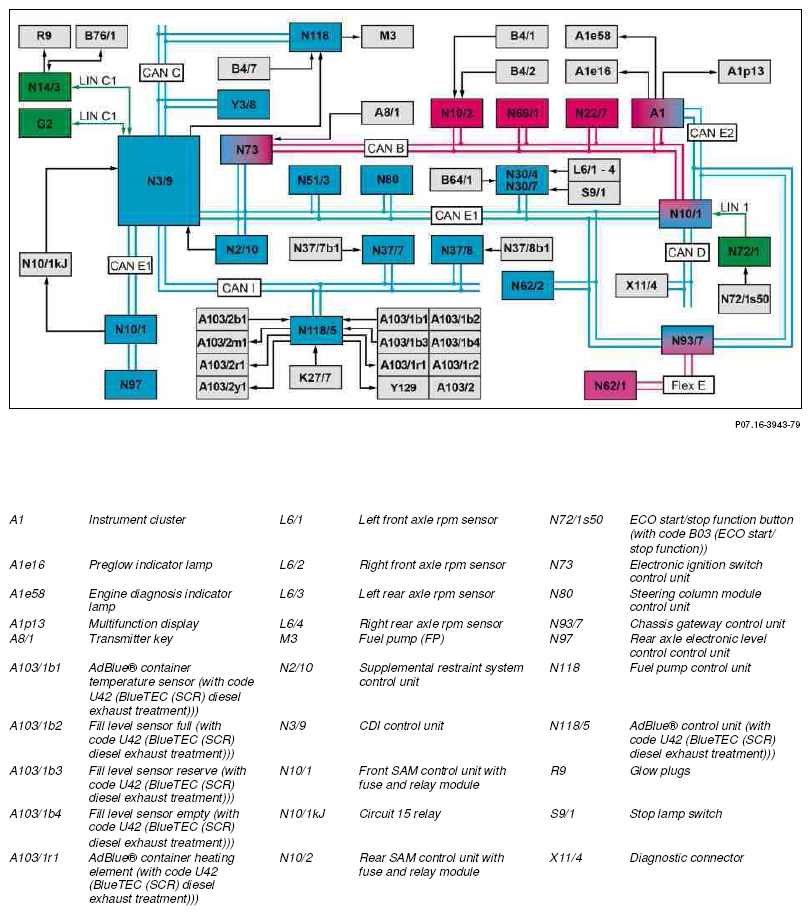

Block diagram for CAN networking (model 212 up to 31.08.2014)

Fig 3: CAN Networking Block Diagram - Shown On Model 212 Up To 31.08.2014 (1 Of 2)

G10242120

Courtesy of MERCEDES-BENZ USA

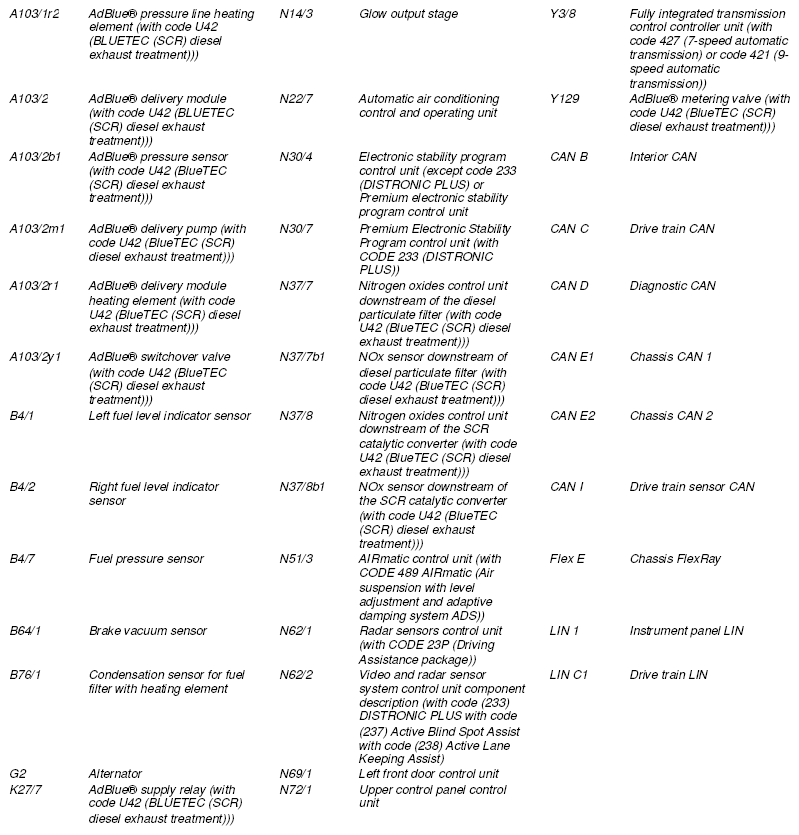

Fig 4: CAN Networking Block Diagram - Shown On Model 212 Up To 31.08.2014 (2 Of 2)

G10242121

Courtesy of MERCEDES-BENZ USA

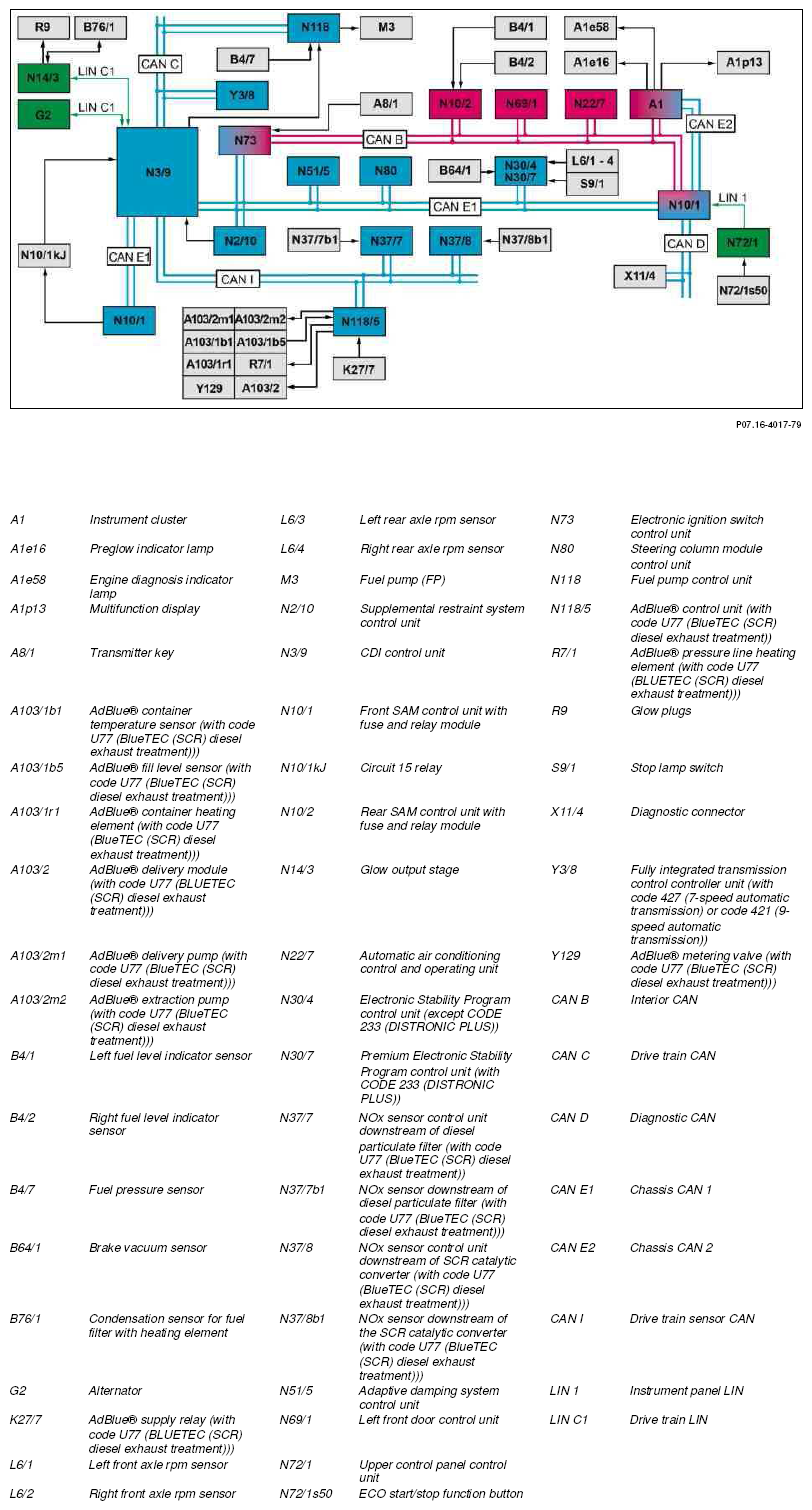

Block diagram for CAN networking model 207

Fig 5: CAN Networking Block Diagram - Shown On Model 207

G10242122

Courtesy of MERCEDES-BENZ USA

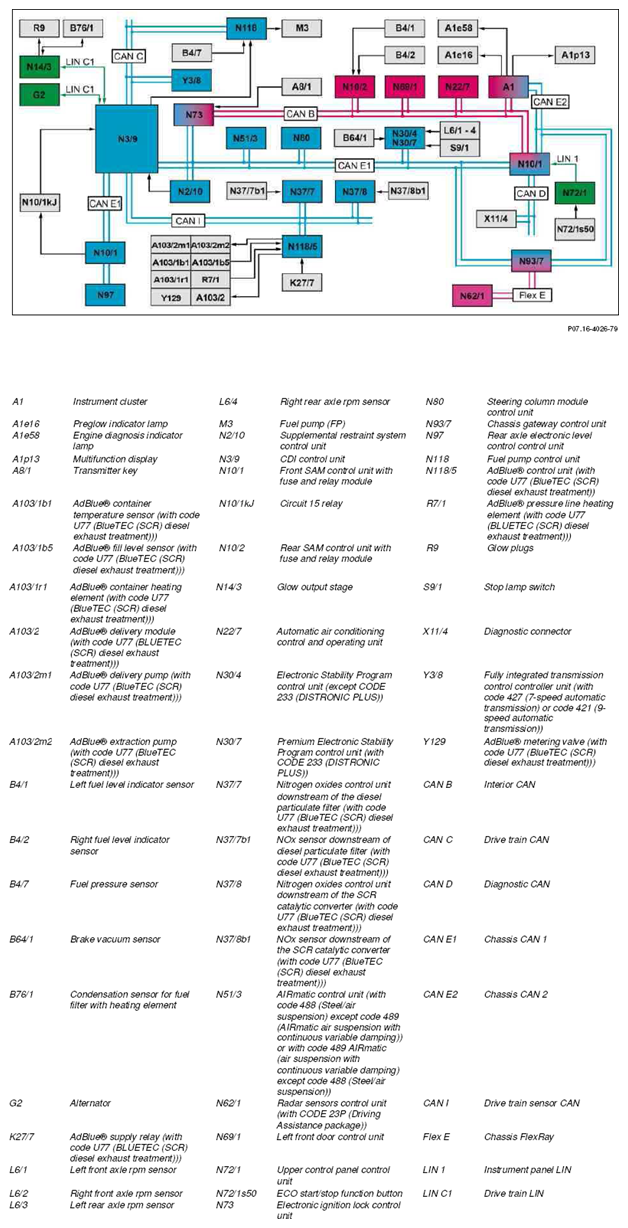

Block diagram for CAN networking (model 212 as of 01.09.2014)

Fig 6: CAN Networking Block Diagram - Shown On Model 212 As Of 01.09.2014

G10242123

Courtesy of MERCEDES-BENZ USA
