Common Rail Diesel Injection (CDI), block diagram - GF07.16-P-0001-08OG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642.8 in MODEL 204, 212, 218 up to model year 2014

ENGINE 642.8 in MODEL 207 up to 5/31/13

Block diagram of direct signals

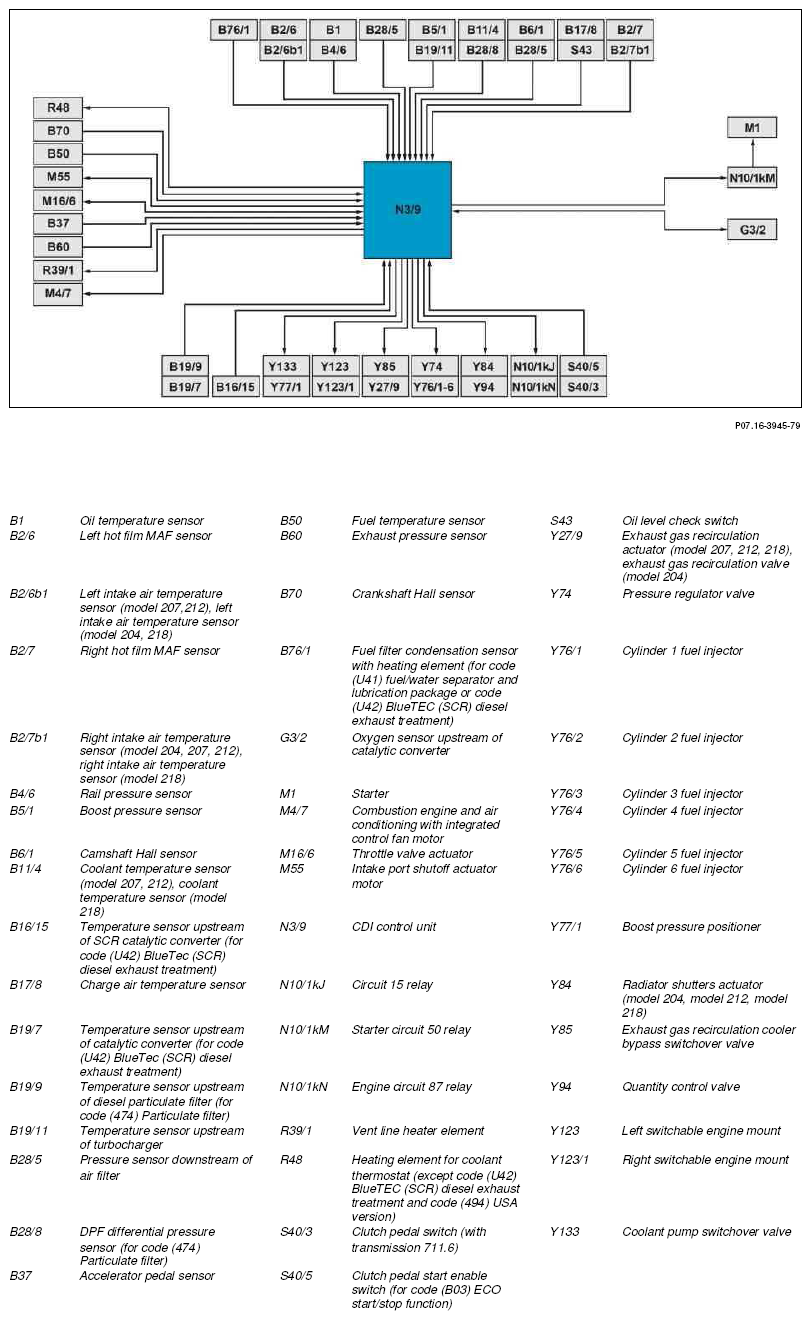

Fig 1: Common Rail Diesel Injection Block Diagram

Courtesy of MERCEDES-BENZ USA

Block diagram for CAN networking

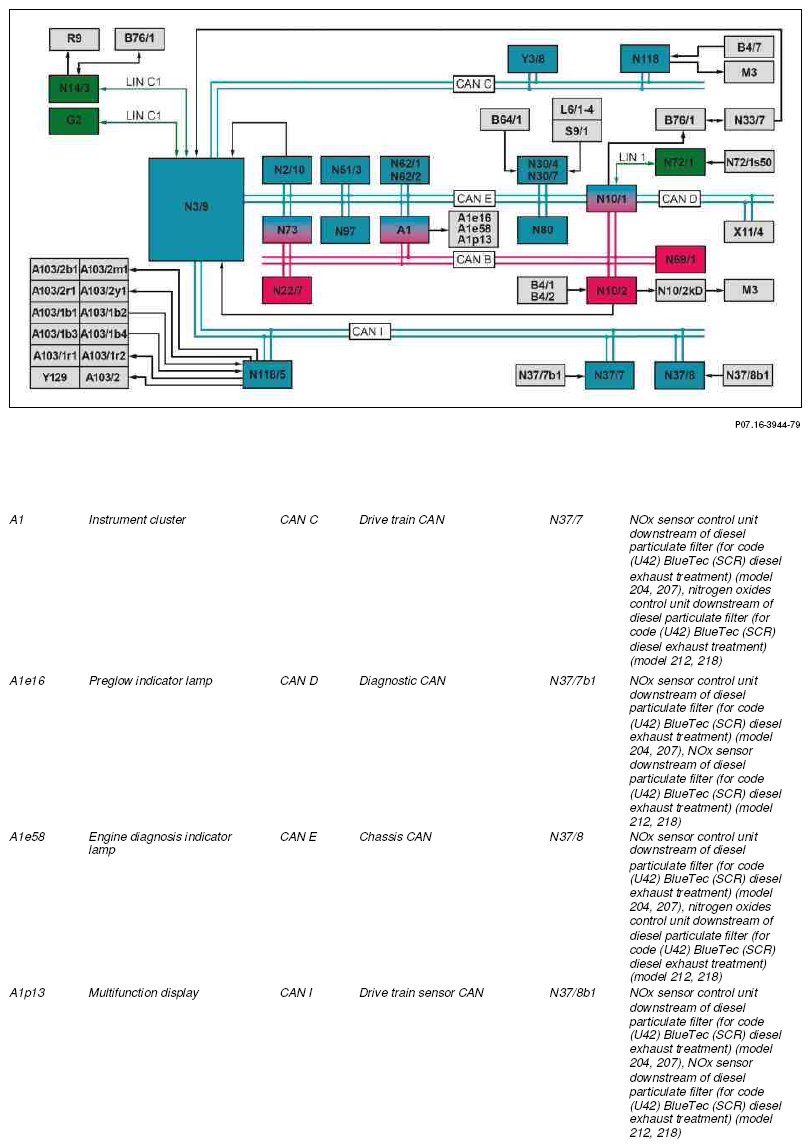

Fig 2: CAN Networking Block Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

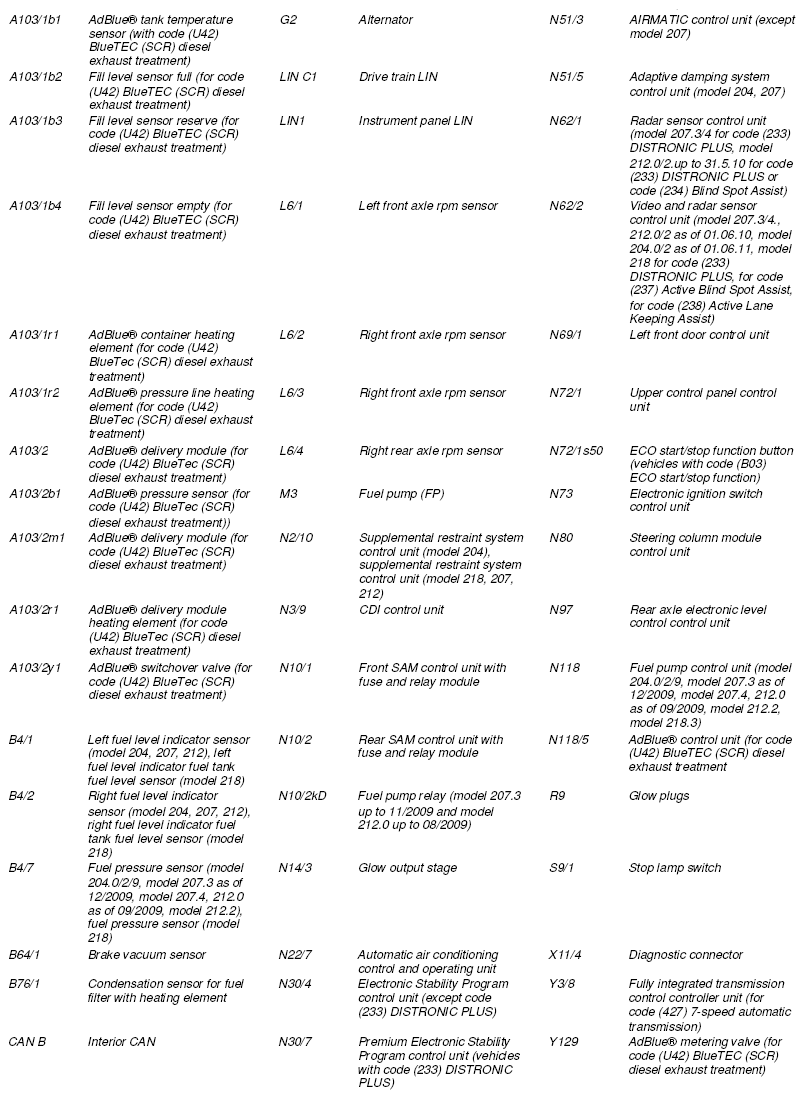

Fig 3: CAN Networking Block Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA

The Electronic Stability Program control unit (N30/4) will be used as of 1.3.2011 (model 204.0/2.) in 2 variants:

Electronic Stability Program control unit, basis variant (except code (233) DISTRONIC PLUS)
Electronic Stability Program control unit, Premium variant (except code (233) DISTRONIC PLUS)

Until 28.2.2011 (model 204.0/2.) or 31.5.2011 (model 204.9) and as of 1.6.2011 (model 204.9) only the basic variant of the Electronic Stability Program control unit will be used.
