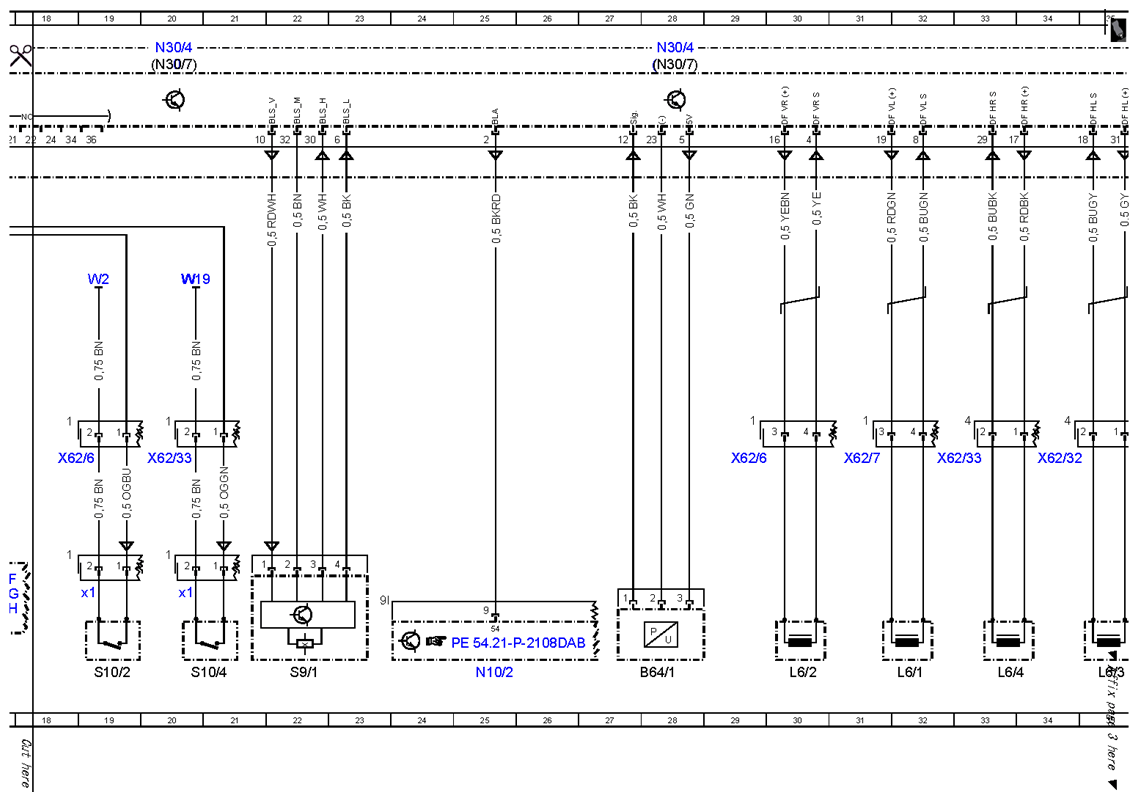

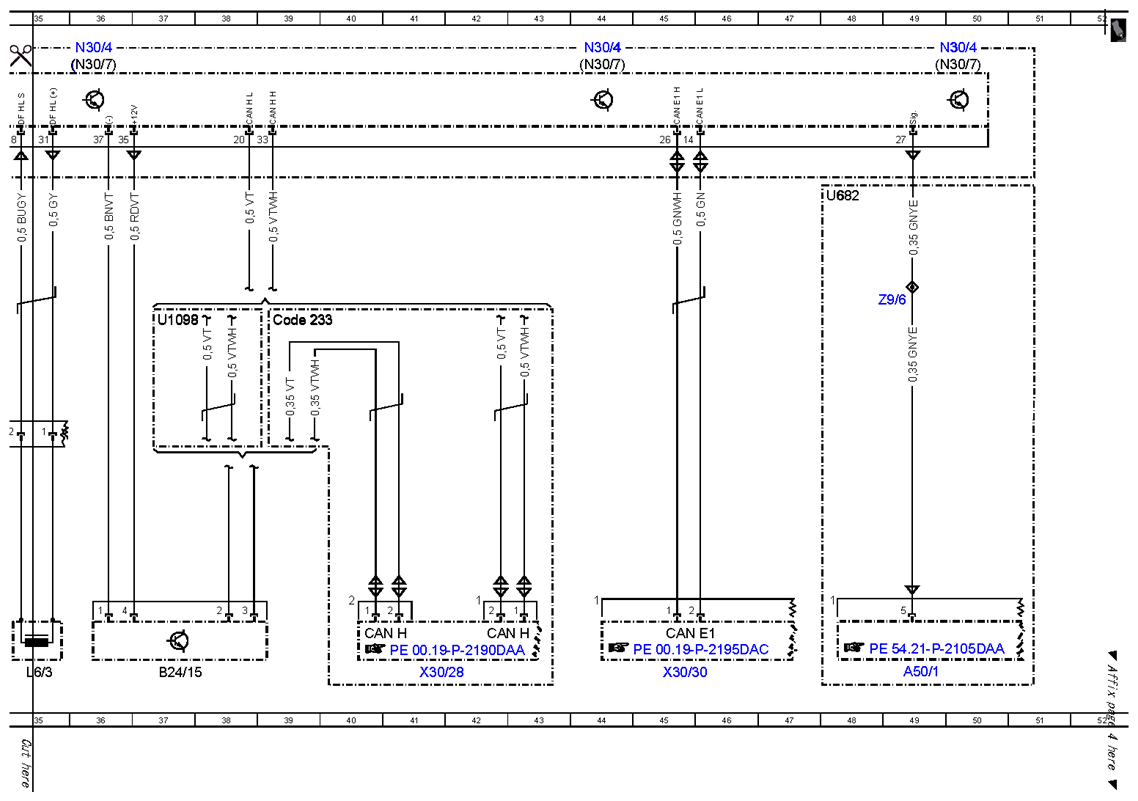

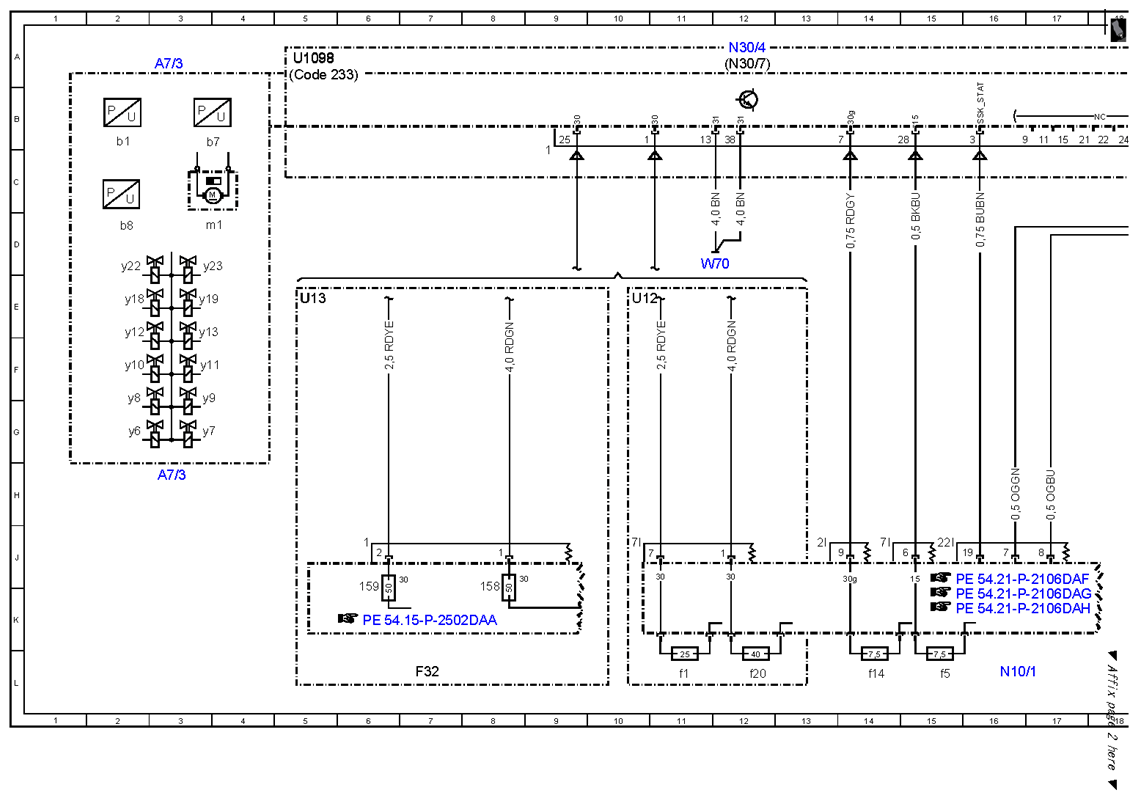

Wiring diagram for Adaptive Brake (ABR) - PE42.47-P-2000-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 Control unit N30/4, N30/7
| Code: | Designation: | Position: |
|---|---|---|
| A50/1 | Mirror taximeter | 49L |
| A7/3 | Traction system hydraulic unit | 3H |
| A7/3 | Traction system hydraulic unit | 3A |
| A7/3b1 | Front axle brake pressure sensor | 2B |
| A7/3b7 | Front pressure sensor | 4B |
| A7/3b8 | Rear pressure sensor | 2D |
| A7/3m1 | High pressure and return pump | 3D |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 2F |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 3F |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 2E |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 3E |
| A7/3y18 | Front axle switchover valve | 2E |
| A7/3y19 | Rear axle switchover valve | 3E |
| A7/3y22 | Front axle intake ball valve | 2D |
| A7/3y23 | Rear axle intake ball valve | 3D |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 2G |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 3G |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 2G |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 3G |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 37L |
| B64/1 | Brake vacuum sensor | 28L |
| CAN E1 | Chassis CAN 1 | 45K |
| CAN H | Vehicle dynamics CAN | 40K |
| CAN H | Vehicle dynamics CAN | 42K |
| Code 233 | DISTRONIC PLUS | 5A |
| Code 233 | DISTRONIC PLUS | 39E |
| F32 | Front electrical prefuse box | 7L |
| F32f158 | Prefuse 158 | 8K |
| F32f159 | Prefuse 159 | 6K |
| L6/1 | Left front axle rpm sensor | 32L |
| L6/2 | Right front axle rpm sensor | 30L |
| L6/3 | Left rear axle rpm sensor | 35L |
| L6/4 | Right rear axle rpm sensor | 33L |
| N10/1 | Front SAM control unit with fuse and relay module | 16L |
| N10/1f1 | Fuse 1 | 11L |
| N10/1f14 | Fuse 14 | 14L |
| N10/1f20 | Fuse 20 | 12L |
| N10/1f5 | Fuse 5 | 15L |
| N10/2 | Rear SAM control unit with fuse and relay module | 25L |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 36A |
| N30/4 | Electronic Stability Program control unit | 44A |
| N30/4 | Electronic Stability Program control unit | 50A |
| N30/7 | Premium Electronic Stability Program control unit | 12A |
| N30/7 | Premium Electronic Stability Program control unit | 20A |
| N30/7 | Premium Electronic Stability Program control unit | 28A |
| N30/7 | Premium Electronic Stability Program control unit | 36A |
| N30/7 | Premium Electronic Stability Program control unit | 44A |
| N30/7 | Premium Electronic Stability Program control unit | 50A |
| S10/2 | Right front brake wear sensor | 19L |
| S10/2x1 | Right front brake wear sensor electrical connector | 19K |
| S10/4 | Right rear brake wear sensor | 20L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 20K |
| S9/1 | Stop lamp switch | 22L |
| U1098 | Valid without code 233 DISTRONIC PLUS: | 5A |
| U1098 | Valid without code 233 DISTRONIC PLUS: | 37E |
| U12 | Valid for left-hand drive vehicles | 10E |
| U13 | Valid for right-hand drive vehicles | 5E |
| U682 | Valid for mirror taximeter | 48C |
| W19 | Right front seat crossmember ground point | 20E |
| W2 | Right front ground point at lamp unit | 19E |
| W70 | Electronic Stability Program ground point | 11D |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 41L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 45L |
| X62/32 | Rear axle electrical connector, left distributor | 34H |
| X62/33 | Rear axle electrical connector, right distributor | 20H |
| X62/33 | Rear axle electrical connector, right distributor | 33H |
| X62/6 | Front axle electrical connector, right distributor | 18H |
| X62/6 | Front axle electrical connector, right distributor | 29H |
| X62/7 | Front axle electrical connector, left distributor | 31H |
| Z9/6 | Travel distance signal connector sleeve 1 | 49E |
