Detach/mount connector - AR42.45-P-0820-02EWD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 231, 292 with CODE 233 (DISTRONIC PLUS)

MODEL 207, 212 up to model year 2014 with CODE 233 (DISTRONIC PLUS)

MODEL 218 up to model year 2015 with CODE 233 (DISTRONIC PLUS)

Shown on model 212

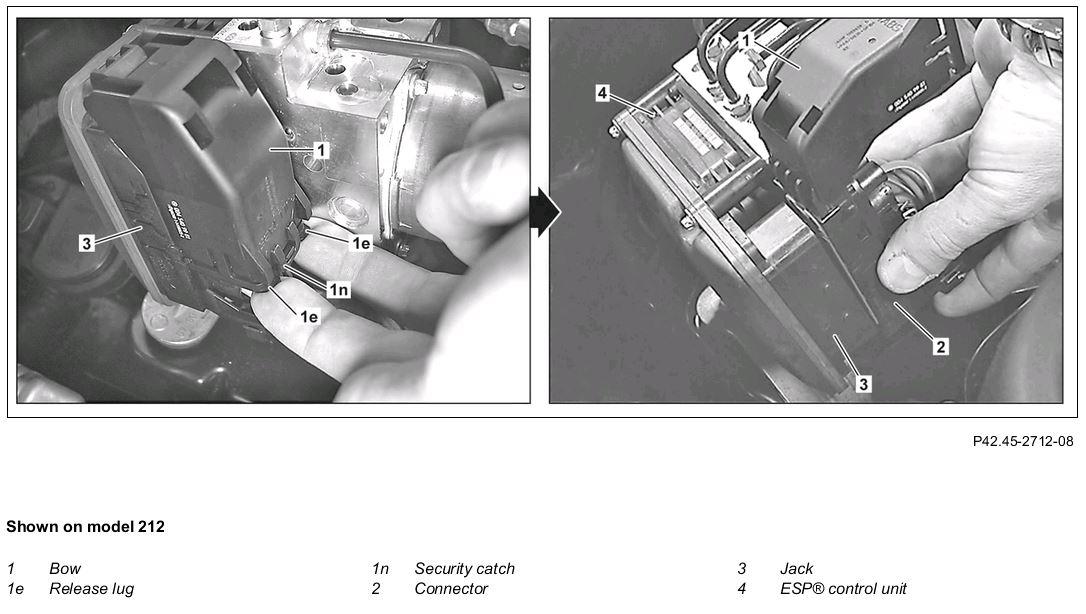

Fig 1: ESP Control Unit, Security Catch, Release Lug, Bow, Connector & Jack - Shown On Model 212
G00556907Courtesy of MERCEDES-BENZ USA

NOTES If there is any damage to the bracket (1), connector (2) or lock tab (1n), the corresponding parts must be replaced. Otherwise, the connector (2) may work its way loose from the ESP® control unit (4) and brake system may malfunction.

Detach electrical connection

  1. Remove cap from electrical connection.
  2. Push both release tabs (1e) as shown, upwards and open connector locking mechanism.

    NOTES Do not use a tool and do not open lock tab (1n). Otherwise, the lock tab (1n), connector locking mechanism or the bracket (1) may be damaged.

  3. Swivel bracket (1) upwards approx. 90°.

    IMPORTANT Connector (2) is pushed slightly out of the jack (3) on the ESP control unit (4).

  4. Pull connector (2) out of jack (3).

    NOTES While doing so, do not pull out connector (2) using the bracket (1). Otherwise, the bracket (1) and connector locking mechanism may be damaged.

  5. Swivel bracket (1) downwards until the connector locking mechanism latches

    IMPORTANT To avoid damage to the bracket (1) and connector locking mechanism

  6. Mount electrical connection

  7. Push both release tabs (1e), as shown, upwards and open connector locking mechanism.

    NOTES Do not use a tool and do not open lock tab (1n). Otherwise, the lock tab (1n), connector locking mechanism or the bracket (1) may be damaged.

  8. Swivel bracket (1) upwards approx. 90°.
  9. Insert connector (2) far enough into the jack (3) on the ESP® control unit (4) until its entire length makes uniform contact with the jack (3).

    NOTES While doing so, do not insert connector (2) using bracket (1). Otherwise, the bracket (1) and connector locking mechanism may be damaged.

  10. Swivel bracket (1) downwards until the connector locking mechanism latches.

    IMPORTANT The connector (2) is drawn into its end position and locked.

  11. Mount cap to electrical connection.
