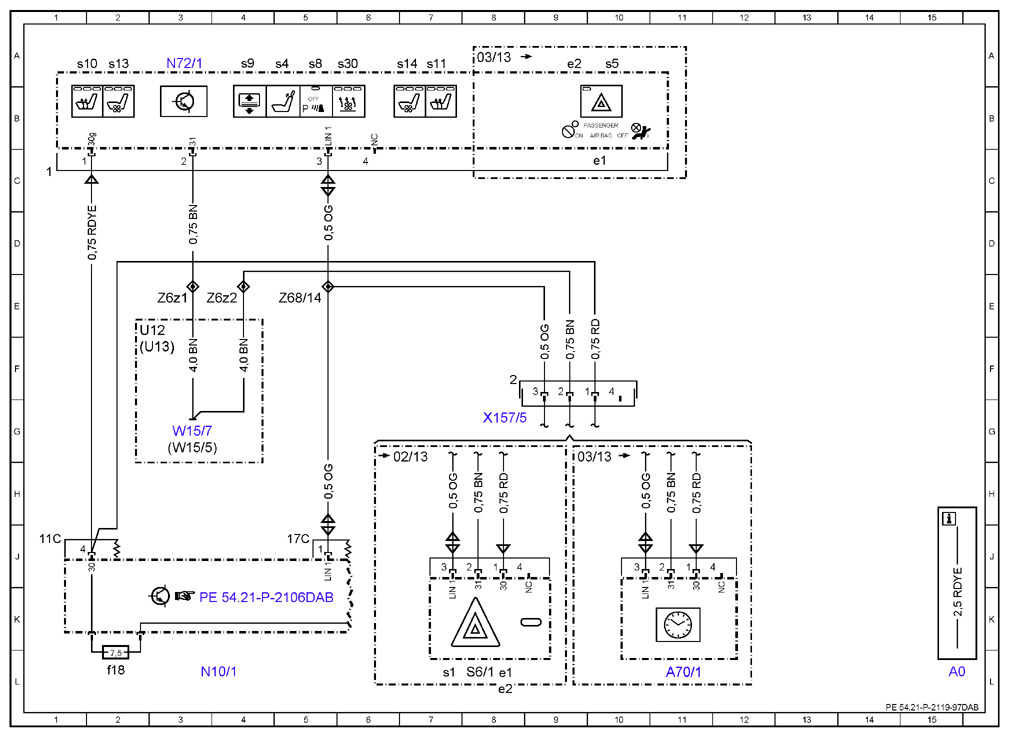

Wiring diagram for upper control panel control unit - PE54.21-P-2119-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of 6/1/10 Control unit N72/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A70/1 | Analog clock | 11L |
| LIN 1 | Instrument panel LIN | 5J |
| LIN 1 | Instrument panel LIN | 7J |
| LIN 1 | Instrument panel LIN | 5B |
| LIN 1 | Instrument panel LIN | 10J |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f18 | Fuse 18 | 2L |
| N72/1 | Upper control panel control unit | 3A |
| N72/1e1 | Automatic child seat recognition warning lamp | 10C |
| N72/1e2 | Anti-theft alarm system indicator lamp | 9A |
| N72/1s10 | Left front heated seat button | 1A |
| N72/1s11 | Right front heated seat button | 7A |
| N72/1s13 | Left front seat ventilation button | 2A |
| N72/1s14 | Right front seat ventilation button | 7A |
| N72/1s30 | Stationary heater button | 6A |
| N72/1s4 | Rear head restraints button | 5A |
| N72/1s5 | Hazard warning system button | 10A |
| N72/1s8 | Parking system button | 5A |
| N72/1s9 | Rear window roller sun blind button | 4A |
| S6/1 | Instrument panel switch group | 8L |
| S6/1e1 | Automatic child seat recognition warning lamp | 8L |
| S6/1e2 | Anti-theft alarm system indicator lamp | 8L |
| S6/1s1 | Hazard warning flasher switch | 7L |
| U12 | Valid for left-hand drive vehicles | 2E |
| U13 | Valid for right-hand drive vehicles | 2F |
| W15/5 | Left front footwell ground point | 3G |
| W15/7 | Right front footwell ground point | 3G |
| X157/5 | Right front door ambiance illumination electrical connector | 8G |
| Z68/14 | Cockpit LIN bus connector sleeve | 5E |
| Z6z1 | Circuit 31 connector sleeve | 3E |
| Z6z2 | Circuit 31 connector sleeve | 4E |
