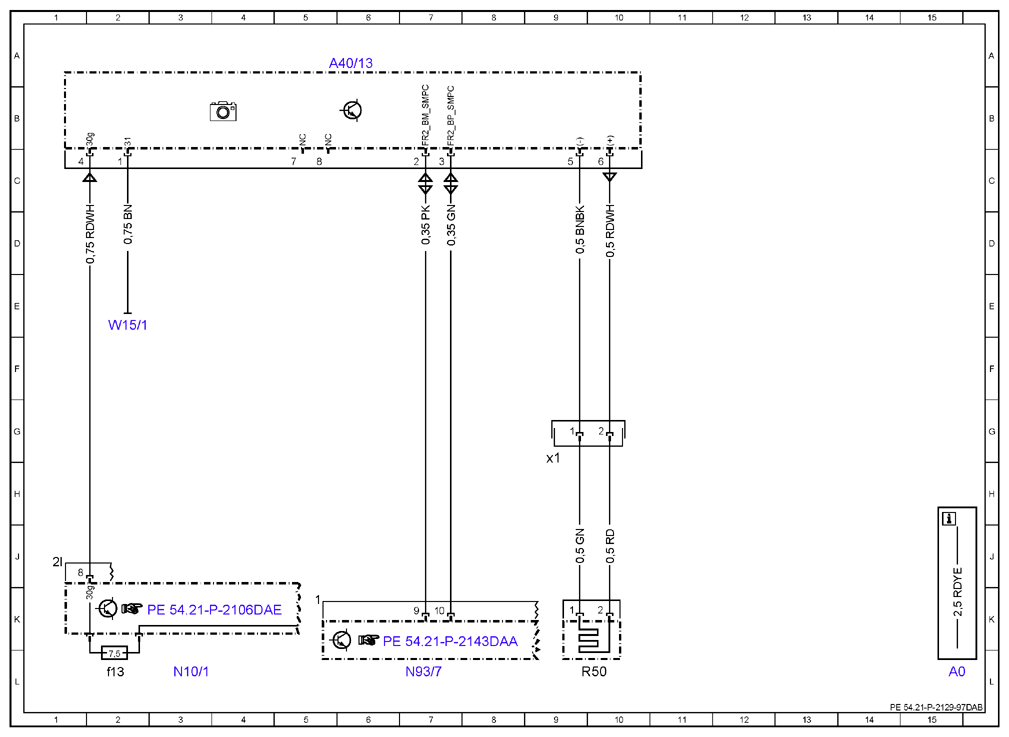

Wiring diagram for multifunction camera - PE54.21-P-2129-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014 with CODE 238 (Active lane keeping Assist) Control unit A40/13
MODEL 212 as of model year 2014 with CODE 266 (Steer Assist) Control unit A40/13
MODEL 212 as of model year 2014 with CODE 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) Control unit A40/13
MODEL 212 as of model year 2014 with CODE 271 (Autonomous brake intervention/pedestrian protection) Control unit A40/13
MODEL 212 as of model year 2014 with CODE 513 (Speed Limit Assist) Control unit A40/13
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A40/13 | Stereo multifunction camera | 6A |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f13 | Fuse 13 | 2L |
| N93/7 | Chassis gateway control unit | 7L |
| R50 | Auxiliary heater heating element | 10L |
| R50x1 | 9H | |
| W15/1 | Right footwell ground point | 2E |
