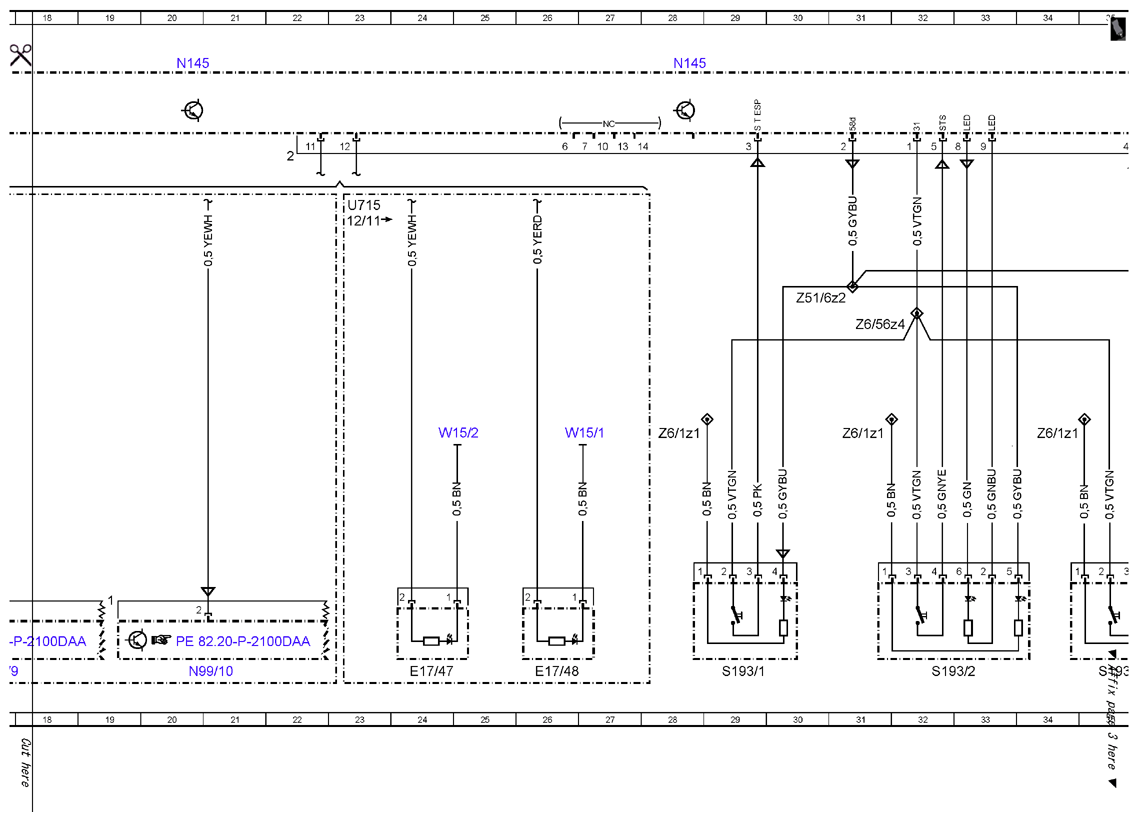

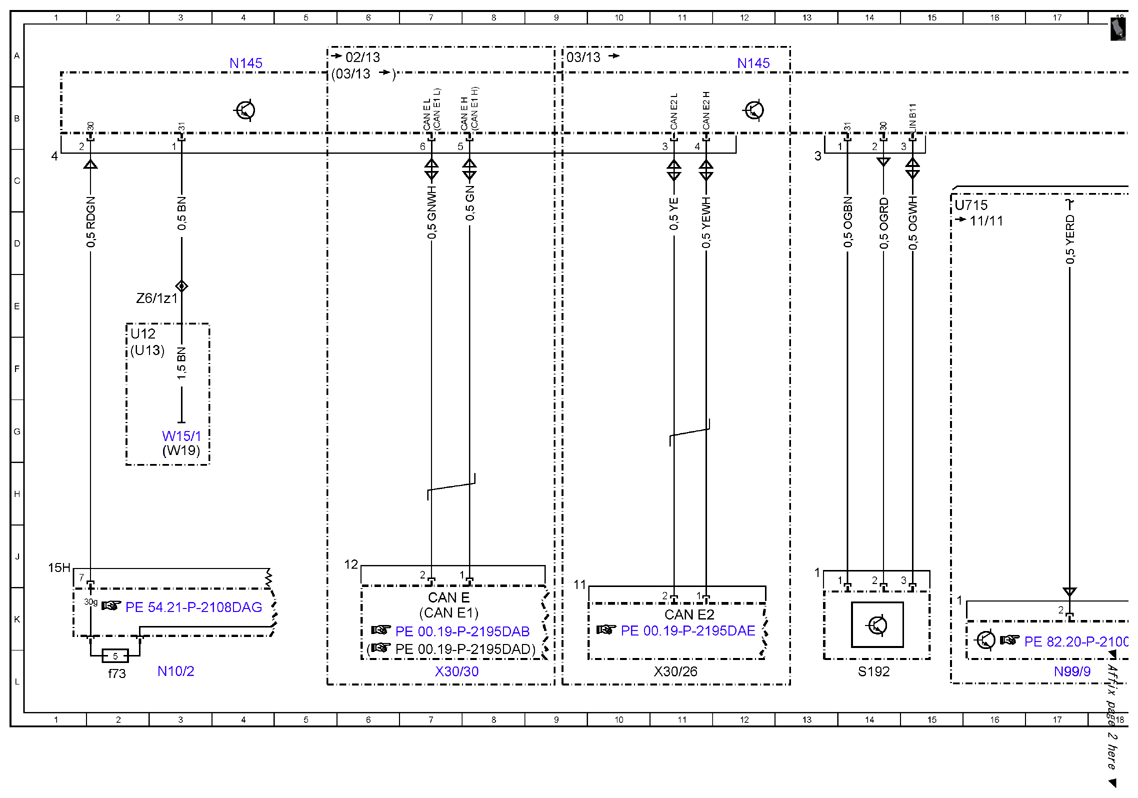

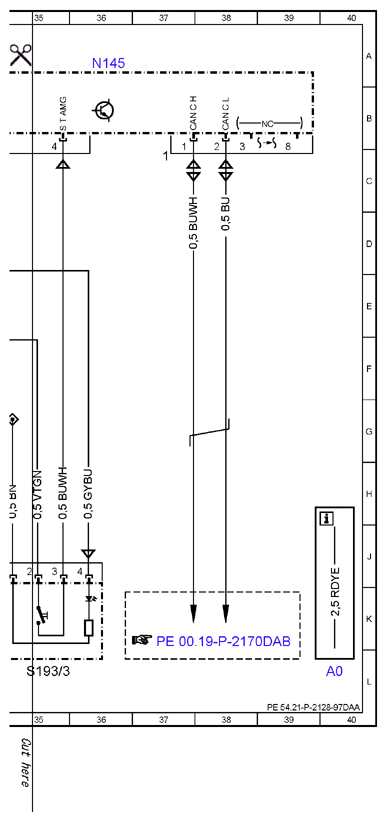

Wiring diagram for drive unit control unit - PE54.21-P-2128-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.074/077/274/277 Control unit N145
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| CAN E | Chassis CAN | 7K |
| CAN E1 | Chassis CAN 1 | 7K |
| CAN E2 | Chassis CAN 2 | 11K |
| E17/47 | Left front illuminated door sill molding | 24L |
| E17/48 | Right front illuminated door sill molding | 26L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f73 | Fuse 73 | 2L |
| N145 | Transmission mode control unit | 4A |
| N145 | Transmission mode control unit | 20A |
| N145 | Transmission mode control unit | 36A |
| N145 | Transmission mode control unit | 12A |
| N145 | Transmission mode control unit | 28A |
| N99/10 | Right front illuminated door sill molding voltage converter | 20L |
| N99/9 | Left front illuminated door sill molding voltage converter | 17L |
| S192 | Transmission mode rotary switch | 14L |
| S193/1 | AMG ESP sport off button | 29L |
| S193/2 | AMG suspension button | 32L |
| S193/3 | AMG button | 35L |
| U12 | Valid for left-hand drive vehicles | 2F |
| U13 | Valid for right-hand drive vehicles | 2F |
| U715 | Valid for illuminated door sills | 15C |
| U715 | Valid for illuminated door sills | 23C |
| W15/1 | Right footwell ground point | 3G |
| W15/1 | Right footwell ground point | 26G |
| W15/2 | Left footwell ground point | 24G |
| W19 | Right front seat crossmember ground point | 3G |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 11L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 7L |
| Z51/6z2 | Circuit 58d vehicle interior connector sleeve | 30E |
| Z6/1z1 | Circuit 31 connector sleeve | 28G |
| Z6/1z1 | Circuit 31 connector sleeve | 2E |
| Z6/1z1 | Circuit 31 connector sleeve | 31G |
| Z6/1z1 | Circuit 31 connector sleeve | 34G |
| Z6/56z4 | Circuit 31 connector sleeve | 31E |
