Tire pressure monitor (TPM (RDK)), block diagram - GF40.15-P-0001-07FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 with CODE 475 (Tire pressure monitor (premium))

Schrader

Valid up to model year 2014

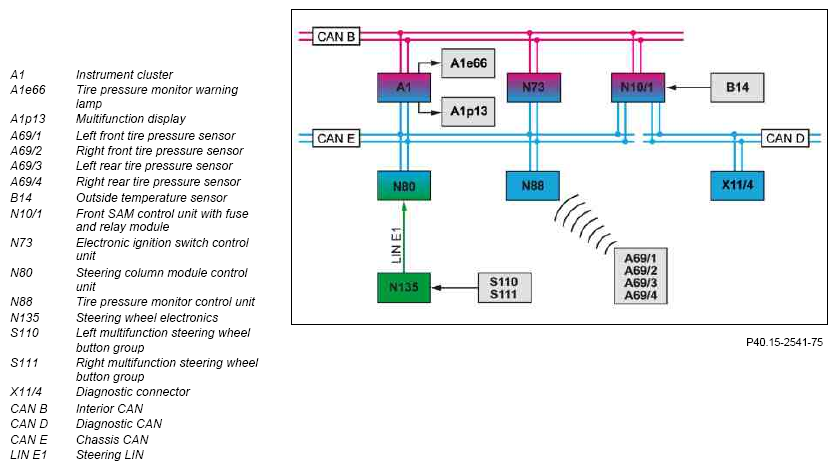

Fig 1: Tire Pressure Monitor Block Diagram - Up To Model Year 2014

Courtesy of MERCEDES-BENZ USA

Valid as of model year 2014

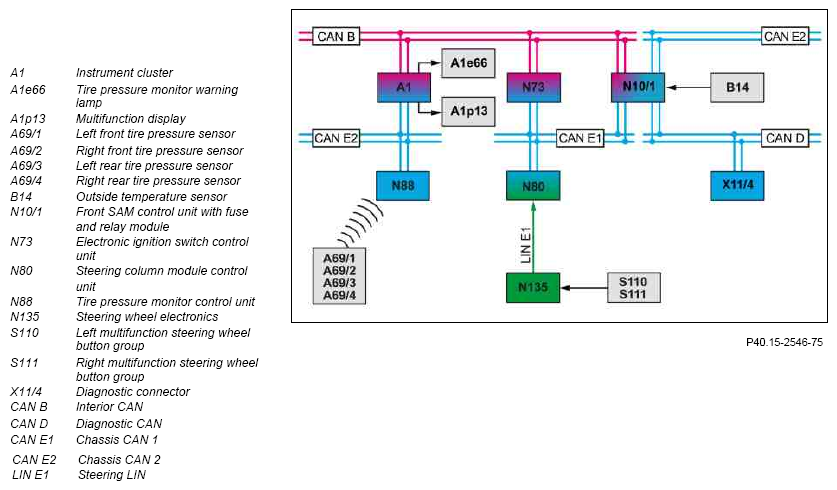

Fig 2: Tire Pressure Monitor Block Diagram - As Of Model Year 2014

Courtesy of MERCEDES-BENZ USA
