Remove/install rubber boots on rubber mount - AR33.15-P-0160-03T
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 171, 172, 203, 204, 207, 209, 211, 212, 216, 217, 218, 219, 221, 230
| Evaluation of elastomer bearings | AH00.10-P-0001-01A |

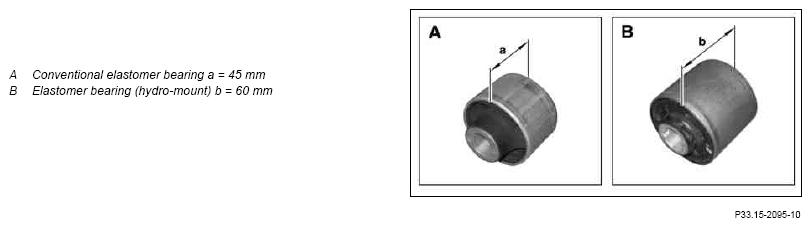

Elastomer bearing variants
Fit dust boots on hydro-mounts (Fig 1) only.
Assembly is not envisaged on conventional elastomer bearings (Fig 1).
The dust boots (18e) are not fitted ex factory. During repair work on the strut rods (18) or hydro-mounts (18d), the dust boots (18e) must be fitted in order to protect the hydro-mounts (18d).
- Only slide the dust boots (18e) over the bearing core and the bearing outer race of the hydro-mount (18d).

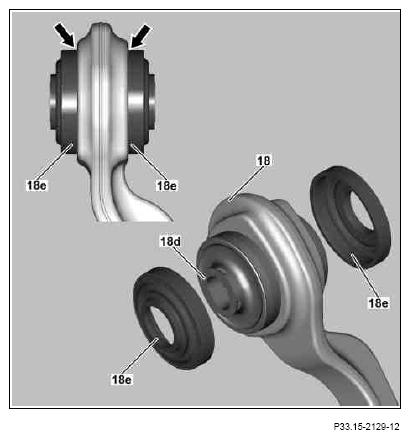

Fit dust boots (18e) flush to strut rod (18) (arrows).
