Pressing out and pulling in front axle shaft flange - AR33.20-P-0315-01SYZ

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.08# #R as of 020955

MODEL 204.08#/09#/28#/29#/38#/904/937/98#/99# #F as of 056725

MODEL 204.08#/09#/38# #A as of 077966

MODEL 212 with CODE M005 (4MATIC)

MODEL 216.38/39, 221.08#/18# #A as of 184982

MODEL 218 with CODE M005 (4MATIC)

MODEL 221.09#/19# #A as of 184982 Vehicles with 4MATIC

Fig 1: Identifying Parallel Support (168 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Ram (211 589 00 43 04)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Drift (202 589 04 43 03)

Courtesy of MERCEDES-BENZ USA

Press out axle-shaft flange (2)

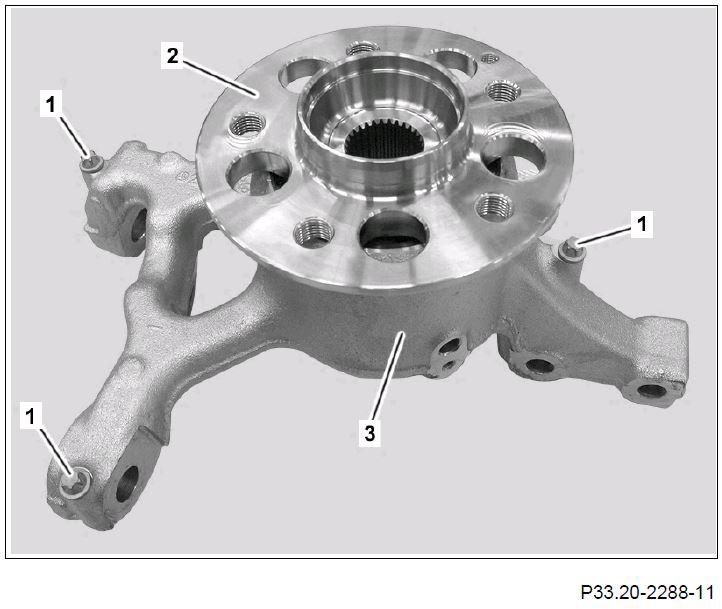

Fig 4: Wheel Carrier, Axle Shaft Flange And Bolts

Courtesy of MERCEDES-BENZ USA

Place wheel carrier (3) on workshop press.
To press out the axle shaft flange (2) place the wheel carrier (3) onto the bolts (1).

If necessary, use two parallel gauges for support.

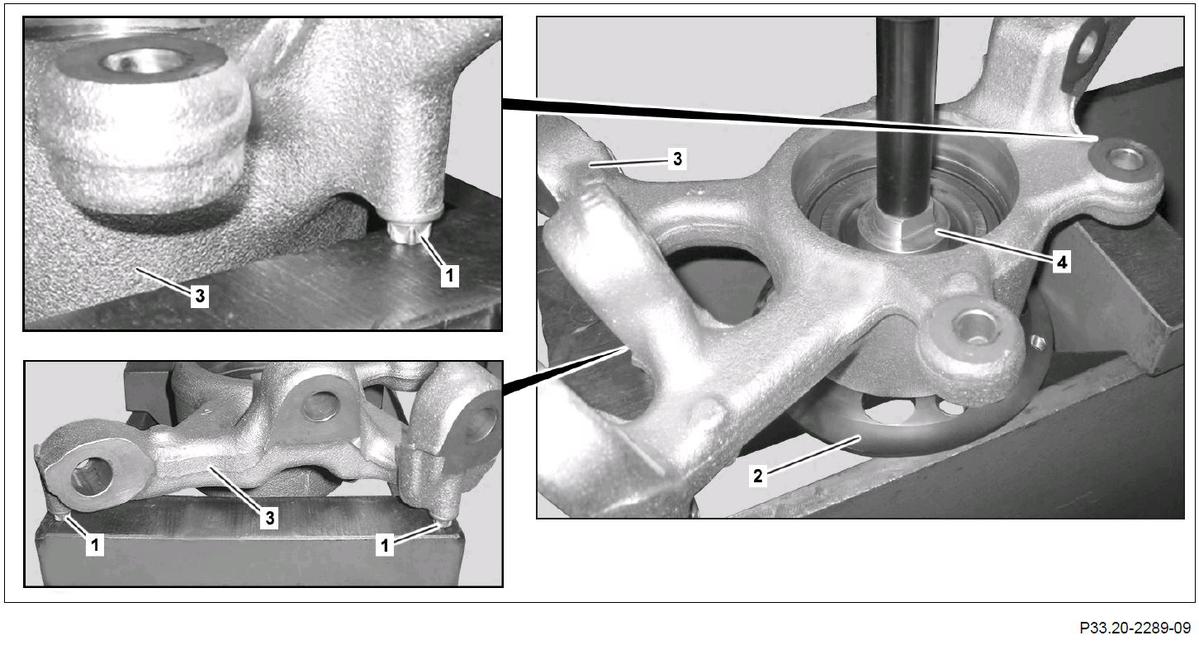

Fig 5: Pressing Out Axle Shaft Flange Using Drift

Courtesy of MERCEDES-BENZ USA

Press out axle shaft flange (2) using drift (4).
When pressed out, the old angular contact ball bearing is destroyed. A bearing shell remains on the axle shaft flange (2).

Press in axle shaft flange (2)

Fig 6: Axle Shaft Flange, Wheel Carrier And Stamp

Courtesy of MERCEDES-BENZ USA

Position new axle shaft flange (2), wheel carrier (3) and stamp (6) on workshop press.
Always install a new axle shaft flange (2).

Use two parallel gauges for support.
Align the new axle shaft flange (2) to the wheel carrier (3) and press in.
The new axle shaft flange (2) is seated correctly when the pressure indicated on the workshop press display increases constantly.
