Press torque strut rubber bushing in/out - AR33.15-P-0160-02EWS

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172 In installed condition

MODEL 204 (except 204.08/09/28/29/38/9) In installed condition

MODEL 207 without CODE M005 (4MATIC) In installed condition

MODEL 212 without CODE M005 (4MATIC) In installed condition

MODEL 218 without CODE M005 (4MATIC) In installed condition

Fig 1: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Installation Tool (212 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hollow Piston Cylinder (001 589 51 33 00)

Courtesy of MERCEDES-BENZ USA

Mark

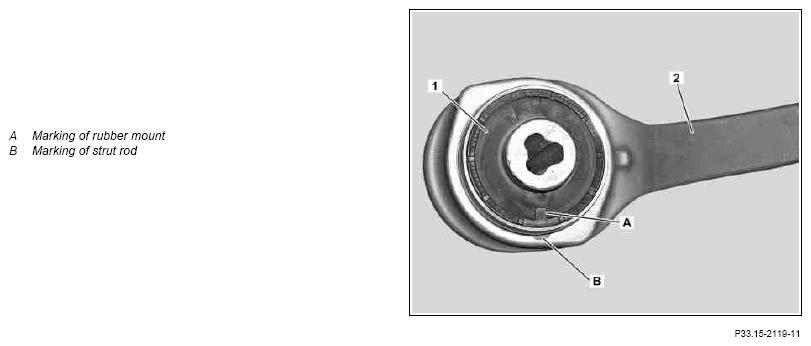

Mark installation position of rubber mount (1) on strut rod (2).
Show on model 212 without 4Matic

Fig 5: Rubber Mount On Strut Rod Mark Installation Position - Shown On Model 212
Courtesy of MERCEDES-BENZ USA

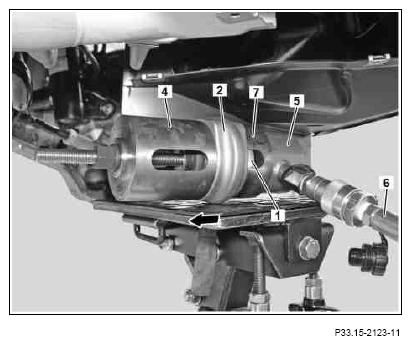

Press out
Press rubber mount (1) out towards chamfered side of strut rod (2).
For model 212, 218 extraction and insertion tool 212 589 00 43 01 (3) must be used.

For model 172, 204, 207 extraction and insertion tool 212 589 00 43 02 (3) must be used.

For all models

extraction and insertion tool 212 589 00 43 03 (4),

hydraulic hose 652 589 00 33 23 (6),

hand pump 652 589 00 33 21 and

the hollow-piston cylinder 001 589 51 33 00 (5) must be used.
Check bearing seat in torque strut (2).

Fig 6: Pressing Rubber Mount Out Towards Chamfered Side Of Strut Rod
Courtesy of MERCEDES-BENZ USA

Should the bearing seat have clearly noticeable scores, the torque strut (2) should be replaced.

Model 212, 218 rubber mount (1) with hole in shape of rounded three-pointed star

Fig 7: Checking Rubber Mount With Rounded Three-Pointed Star Shape Hole - Shown On Model 212, 218
Courtesy of MERCEDES-BENZ USA

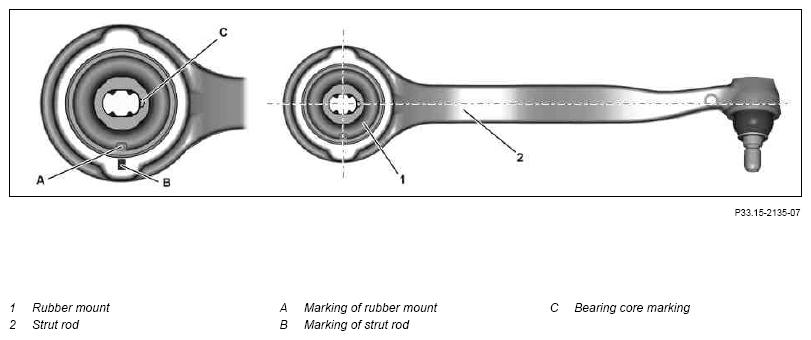

Model 204, 207 rubber mount (1) with elongated hole

Fig 8: Checking Rubber Mount With Elongated Hole - Shown On Model 204, 207
Courtesy of MERCEDES-BENZ USA

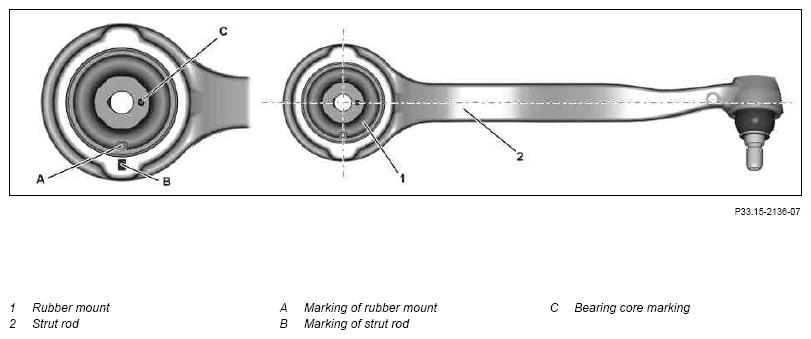

Model 172, 204, 207 rubber mount (1) with circular hole

Fig 9: Checking Rubber Mount With Circular Hole - Shown On Model 172, 204, 207
Courtesy of MERCEDES-BENZ USA

Press in

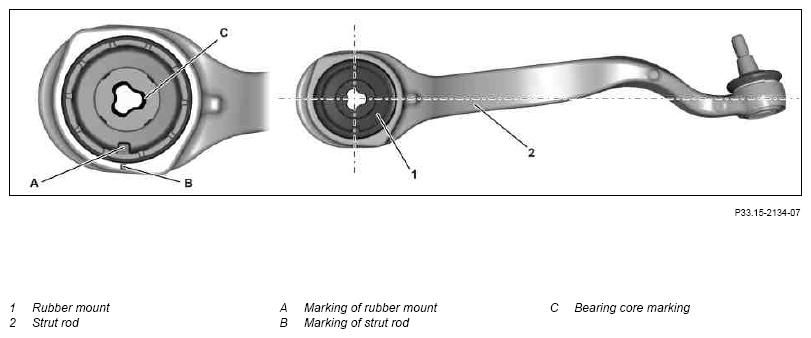

Attach chamfered side of rubber mount (1) to chamfered side of strut rod (2).
Align marking of rubber mount (A) with marking of strut rod (B). Align bearing core marking (C) with ball head.

Generally, the rubber mount (1) is to be positioned in the strut rod (2) such that, in the installation position for the strut rod (2), the marking for the rubber mount (A) faces down and the marking for the bearing core (C) outwards (wheel side).

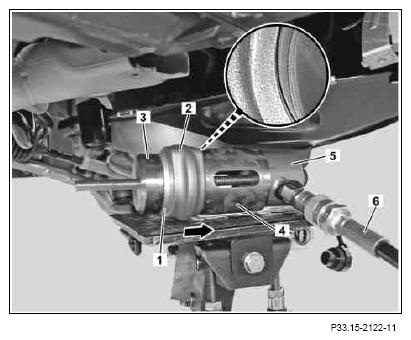

Press rubber mount (1) up to end stop in the strut rod (2).
For model 212, 218 extraction and insertion tool 212 589 00 43 01 (3) must be used.

For model 172, 204, 207 extraction and insertion tool 212 589 00 43 02 (3) must be used.

For all models

extraction and insertion tool 212 589 00 43 03 (4),

hydraulic hose 652 589 00 33 23 (6),

hand pump 652 589 00 33 21 and

the hollow-piston cylinder 001 589 51 33 00 (5) must be used.

Fig 10: Pressing Rubber Mount To End Stop In Strut Rod
