Install new radial sealing ring on outside right of front axle gear - AR33.30-P-0540SYZ

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.08/09/28/29/38/93/98/99

MODEL 207, 212, 218 with CODE M005 (4MATIC)

MODEL 216, 221 with TRANSMISSION 722.96

MODIFICATION NOTES

11.7.14 hypoid gear oil MODEL 204 BF33.30-P-1001-03F
11.7.14 hypoid gear oil MODEL 207 BF33.30-P-1001-03F
11.7.14 hypoid gear oil MODEL 212 BF33.30-P-1001-03F
11.7.14 hypoid gear oil MODEL 218 BF33.30-P-1001-03F

Shown on model 221.08

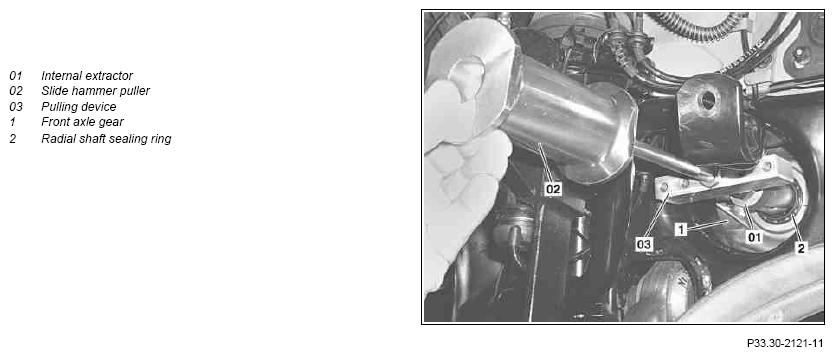

Fig 1: Installing Radial Sealing Ring On Outside Right Of Front Axle Gear - Shown On Model 221.08
G09976247Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove right front axle shaft MODEL 204, 207, 212, 218 AR33.30-P-0620CWX
    MODEL 216, 221 with TRANSMISSION 722.96 with CODE M005 (4MATIC) AR33.30-P-0620SYZ
2 Pull radial shaft sealing ring (2) using internal extractor (01), extraction tool (03) and impact extractor (02) out of front axle transmission (1) INSTALLATION NOTES Knock radial shaft sealing ring using SPECIAL TOOL drift into front axle transmission.
    SPECIAL TOOL Internal extractor Fig 4
    SPECIAL TOOL Drift Figure
    SPECIAL TOOL Extraction tool Figure
    SPECIAL TOOL Impact extractor Figure
3 Drain oil out of front axle transmission (1)
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (specification 235.7)   Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
    INSTALLATION IMPORTANT Fill front axle transmission (1) with oil.
The front axle transmission does not have an oil filler hole and must be filled via the front axle shaft opening.
    FLUID SPECIFICATION MODEL 204, 207, 212, 218 *BF33.30-P-1001-03F
    FLUID SPECIFICATION MODEL 216, 221 *BF33.30-P-1001-03C
    TORQUE SPECIFICATION Front axle transmission drain screw *BA33.30-P-1008-03G
4 Install in the reverse order
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
5 Perform engine test run and check front axle transmission (1) for leaks and that it is functioning correctly
FRONT AXLE GEAR

Number Designation MODEL 204 MODEL 207
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation MODEL 212 MODEL 216
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation MODEL 218 MODEL 221
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE TRANSMISSION

Number Designation MODEL 216 with 4MATIC MODEL 221 with 4MATIC
BF33.30-P-1001-03C Hypoid gear oil Filling capacity Liter 0, 6 0, 6
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
FRONT AXLE GEAR

Number Designation MODEL 204 MODEL 207
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
FRONT AXLE GEAR

Number Designation MODEL 212 MODEL 218
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Specification Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85 Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
Fig 2: Identifying Extraction Tool (221 589 04 33 00)
G09976248Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Impact Extractor (602 589 00 33 00)
G09976249Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Internal Extractor (203 589 03 33 00)
G09976250Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Drift (221 589 04 15 00)
G09976251Courtesy of MERCEDES-BENZ USA
