Attach engine suspension lug - AR33.10-P-0105-01SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 212, 216, 218, 221, 292 with ENGINE 157, 278

MODEL 207 with ENGINE 278

MODEL 217, 222, 231 with ENGINE 157, 278

CYLINDER HEAD

Number	Designation		Engine 157	Engine 278
BA01.30-P-1006-01X	Bolt, lifting eye to cylinder head	Nm	14	14

Fig 1: Identifying Lifting Eye (278 589 00 40 00)

Courtesy of MERCEDES-BENZ USA

Remove left boot (2).
Detach right boot (1) from upper charge air lines (3) and place to one side.
Do not detach right boot (1) from tube of crankcase ventilation system (1c).

Otherwise leaks may occur.
Mount lifting eye (01a) to right and left cylinder head (A, B) using bolts (01b) .
Bolts (01b) (M7x1x65) are included in special tools cope for lifting eye (01a).

The upper charge air lines (3) remain attached to the engine.

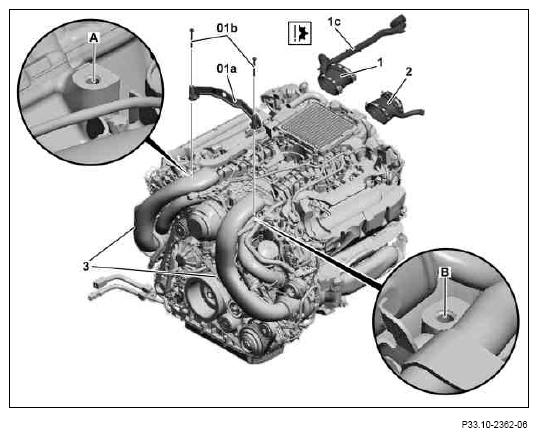

Fig 2: Attaching Engine Suspension Lug
Courtesy of MERCEDES-BENZ USA
