Adjust wheel bearing play - AR33.20-P-0300SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 except CODE M005 (4MATIC)

MODEL 216 without 4MATIC

MODEL 218 except CODE M005 (4MATIC)

MODEL 221 except CODE Z07 (Top protection) without 4MATIC

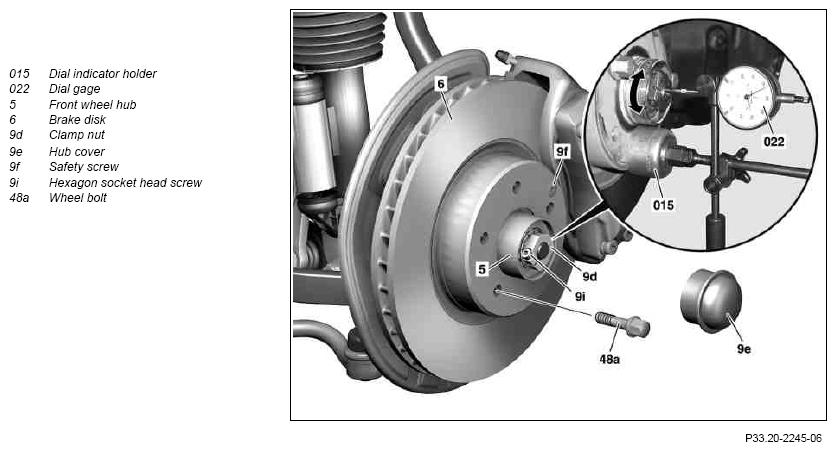

Fig 1: Adjusting Wheel Bearing Play
G09976198Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Ensure vehicle idle (bus idle) MODEL 221.095/195 AR54.10-P-2000-01SX
2 Remove front wheel
REFER TO MAINTENANCE   MODEL 216, 221 AP40.10-P-4050SX
REFER TO MAINTENANCE   MODEL 212, 218 AP40.10-P-4050EW
3 Screw in wheel bolt (48a) opposite safety screw (9f) IMPORTANT Until the brake disk (6) is fixed
4 Press brake pads back into brake caliper
5 Pull off hub cap (9e) using removal and installation tool SPECIAL TOOL Removal and installation tool Fig 2
INSPECT Check
6 Slacken hexagon socket head screw (9i) and lightly tighten clamping nut (9d) while rotating the front wheel hub (5) IMPORTANT To set up the wheel bearing.
7 Loosen clamping nut (9d) slightly IMPORTANT A small amount of play must be noticeable.
8 Mount dial indicator (022) with dial indicator holder (015) to brake disk (6) SPECIAL TOOL Dial indicator holder Fig 3
    SPECIAL TOOL Dial gauge Fig 4
9 Adjust wheel bearing play by turning (arrow) the clamping nut (9d) in stages while pushing and pulling the brake disk (6) firmly back and forth NOTES
Incorrect measurement may result in the set wheel bearing play being too small.
This can then lead to wheel bearing damage.
IMPORTANT Do not twist or tilt front wheel hub (5) during the measurement. Correct measurement is only possible by pulling and pushing parallel to the wheel axle.
    MODEL 216, 221 wheel bearing play at front axle *BE33.20-P-1002-01A
    MODEL 212, 218 wheel bearing play at front axle *BE33.20-P-1001-01F
10 Tighten hexagon socket head screw (9i) and check wheel bearing play again TORQUE SPECIFICATION MODEL 212 Bolt for locknut on front-wheel mounting *BA33.20-P-1001-01O
    TORQUE SPECIFICATION MODEL 216, 221 Bolt for clamp nut used to adjust front-axle wheel bearing play *BA33.20-P-1001-01M
    TORQUE SPECIFICATION MODEL 218 Bolt for clamp nut to adjust front axle wheel bearing play *BA33.20-P-1001-01Q
11 Remove the dial gauge (022) and its stand (015)
INSTALLING Install
12 Fill hub cap (9e) with high-temperature roller bearing grease
REFER TO CAPACITIES & SPECIFICATIONS High temperature antifriction bearing grease (NLGI grade 2)   High temperature antifriction bearing grease (NLGI grade 2). See https://bevo.mercedes-benz.com/index.php?language_id=1
13 Mount hub cover (9e) SPECIAL TOOL Removal and installation tool Fig 2
14 Remove wheel bolt (48a)
15 Mount front wheel
REFER TO MAINTENANCE   MODEL 216, 221 AP40.10-P-4050SX
REFER TO MAINTENANCE   MODEL 212, 218 AP40.10-P-4050EW
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
16.1 Press brake pedal several times in succession until a firm resistance is noticeable. MODEL 212, 216, 218, MODEL 221 (except 221.095/195)
16.2 Depress brake pedal 10 times fully and quickly. MODEL 221.095/195
TEST SPECIFICATIONS FOR WHEEL LOCATION, WHEEL HUB

Number Designation MODEL 212 MODEL 218
BE33.20-P-1001-01F Wheel bearing play at front axle mm 0, 01...0, 02 0, 01...0, 02
TEST VALUES FOR WHEEL LOCATION, WHEEL HUB

Number Designation MODEL 216 MODEL 221
BE33.20-P-1002-01A Wheel bearing play at front axle mm 0, 01...0, 02 0, 01...0, 02
WHEEL CONTROL, HUB

Number Designation MODEL 216.37 MODEL 221.003/02/05/07/095/103/12/15/17/195 except CODE Z07 except CODE Z19 except 4MATIC
BA33.20-P-1001-01M Bolt for clamp nut used to adjust front-axle wheel bearing play Nm 11 11
WHEEL CONTROL, HUB

Number Designation MODEL 221.08/094/18/194 except CODE Z07 except 4MATIC
BA33.20-P-1001-01M Bolt for clamp nut used to adjust front-axle wheel bearing play Nm -
WHEEL CONTROL, HUB

Number Designation MODEL 212 except 4MATIC
BA33.20-P-1001-01O Bolt for locknut on front-wheel mounting Nm 11
WHEEL CONTROL, HUB

Number Designation MODEL 218 except 4MATIC MODEL 218 with 4MATIC
BA33.20-P-1001-01Q Bolt for clamp nut to adjust front axle wheel bearing play Nm 11 -
Fig 2: Identifying Puller Tool (116 589 22 33 00)
G07687746Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Dial Indicator Holder (363 589 02 21 00)
G09635463Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Dial Gauge (001 589 53 21 00)
G09635464Courtesy of MERCEDES-BENZ USA
