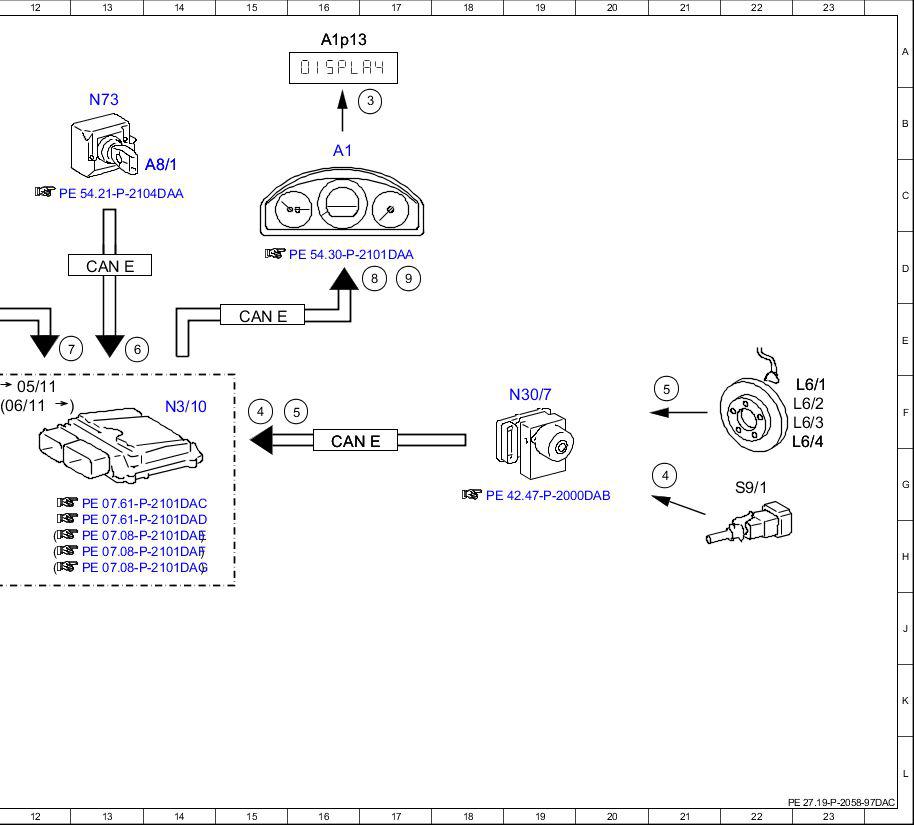

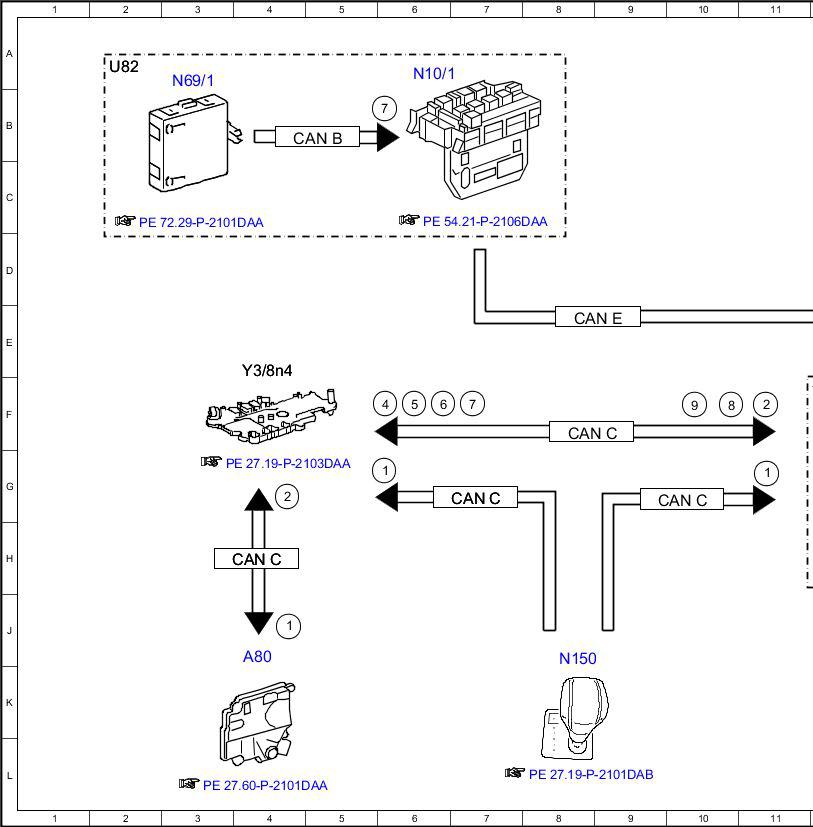

Electrical function schematic, Key-P - PE27.19-P-2058-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.930/931 in MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Selector lever position, status | 5G |
| 1 | Selector lever position, status | 11G |
| 1 | Selector lever position, status | 4J |
| 2 | Intelligent servo module, status | 4G |
| 2 | Intelligent servo module, status | 11F |
| 3 | Multifunction display, actuation | 17B |
| 4 | Brake light switch, status | 21G |
| 4 | Brake light switch, status | 15F |
| 4 | Brake light switch, status | 5F |
| 5 | Wheel speed, signal | 6F |
| 5 | Wheel speed, signal | 16F |
| 5 | Wheel speed, signal | 21F |
| 6 | Circuit 15, status | 6F |
| 6 | Circuit 15, status | 13E |
| 7 | Door rotary tumbler switch, status | 7F |
| 7 | Door rotary tumbler switch, status | 12E |
| 7 | Door rotary tumbler switch, status | 6B |
| 8 | Instrument cluster, message | 10F |
| 8 | Instrument cluster, message | 17D |
| 9 | Instrument cluster, request | 17D |
| 9 | Instrument cluster, request | 10F |
| A1 | Instrument cluster | 16B |
| A1p13 | Multifunction display | 16A |
| A8/1 | Transmitter key | 14C |
| A80 | Intelligent servo module for DIRECT SELECT | 4J |
| CAN B | Interior CAN | 5B |
| CAN C | Drive train CAN | 7G |
| CAN C | Drive train CAN | 10G |
| CAN C | Drive train CAN | 8F |
| CAN C | Drive train CAN | 4H |
| CAN E | Chassis CAN | 9E |
| CAN E | Chassis CAN | 13D |
| CAN E | Chassis CAN | 15E |
| CAN E | Chassis CAN | 16F |
| L6/1 | Left front axle RPM sensor | 23F |
| L6/2 | Right front axle RPM sensor | 23F |
| L6/3 | Left rear axle RPM sensor | 23F |
| L6/4 | Right rear axle RPM sensor | 23F |
| N10/1 | Front SAM control unit with fuse and relay module | 6A |
| N150 | DIRECT SELECT INTERFACE | 8J |
| N3/10 | ME-SFI [ME] control unit | 14F |
| N30/7 | Premium Electronic Stability Program control unit | 19F |
| N69/1 | Left front door control unit | 3A |
| N73 | Electronic ignition switch control unit | 13B |
| S9/1 | Stop lamp switch | 22G |
| U82 | Valid for KEYLESS GO | 2A |
| Y3/8n4 | Fully integrated transmission control unit | 4E |
