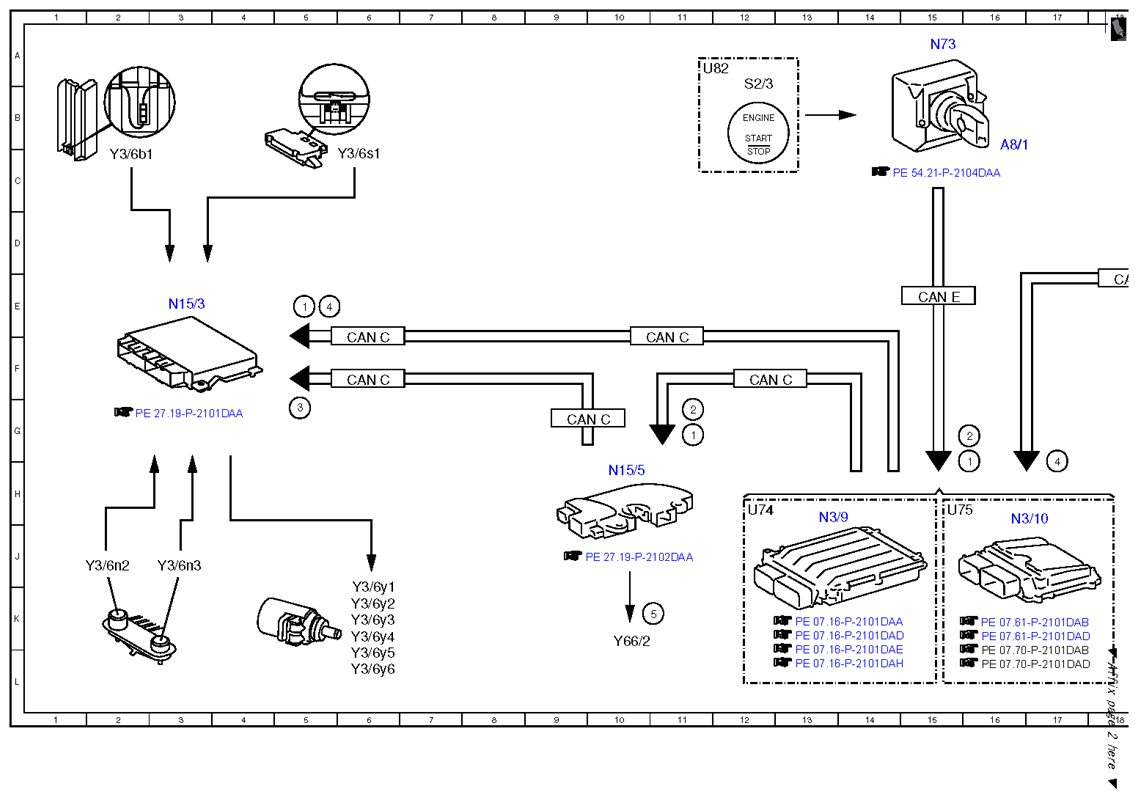

Electrical function schematic for shift-lock - PE27.19-P-2059-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 (except 212.041) with TRANSMISSION 722.6 up to model year 2012 /YoM 11
MODEL 212.041 with TRANSMISSION 722.6
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 16H |
| 1 | Circuit 15, status | 5E |
| 1 | Circuit 15, status | 11G |
| 2 | DAS [FBS] start enable, status | 16G |
| 2 | DAS [FBS] start enable, status | 11G |
| 3 | Selector lever position, status | 5G |
| 4 | Service brake, status | 17H |
| 4 | Service brake, status | 5E |
| 5 | Selector lever positions R and P locking solenoid, actuation | 11K |
| A8/1 | Transmitter key | 16C |
| CAN C | Drive train CAN | 6F |
| CAN C | Drive train CAN | 11F |
| CAN C | Drive train CAN | 6F |
| CAN C | Drive train CAN | 9G |
| CAN C | Drive train CAN | 12F |
| CAN E | Chassis CAN | 15E |
| CAN E | Chassis CAN | 18E |
| N15/3 | Electronic transmission control unit | 3E |
| N15/5 | Electronic selector lever module control unit | 10H |
| N3/10 | ME-SFI [ME] control unit | 16H |
| N3/9 | CDI control unit | 13H |
| N30/4 | Electronic Stability Program control unit | 21C |
| N73 | Electronic ignition switch control unit | 15A |
| S2/3 | KEYLESS GO start/stop button | 12B |
| S9/1 | Stop lamp switch | 21G |
| U74 | Valid for diesel engines | 12H |
| U75 | Valid for gasoline engines | 15H |
| U82 | Valid for KEYLESS GO | 11A |
| Y3/6b1 | Transmission oil temperature sensor | 2C |
| Y3/6n2 | RPM sensor 2 | 2J |
| Y3/6n3 | RPM sensor 3 | 3J |
| Y3/6s1 | Starter lockout contact | 6C |
| Y3/6y1 | Modulating pressure control solenoid valve | 6K |
| Y3/6y2 | Shift pressure control solenoid valve | 6K |
| Y3/6y3 | 1-2 and 4-5 gearshift solenoid valve | 6K |
| Y3/6y4 | 3-4 gearshift solenoid valve | 6K |
| Y3/6y5 | 2-3 gearshift solenoid valve | 6L |
| Y3/6y6 | Torque converter lockup clutch control solenoid valve | 6L |
| Y66/2 | Selector lever positions R and P locking solenoid | 10K |
