Remove contacts from micro quadlock system connector - AR00.19-P-0120-03B

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL ALL Micro-quadlock system connector variant 2

Fig 1: Identifying Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MQS Blade (220 589 01 99 60)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with lock tab

Push suitable tool underneath locking shackles (1).
Pry up the lock tabs (1) in direction shown by arrow.

Fig 5: Pulling Lock Tabs
Courtesy of MERCEDES-BENZ USA

Unpin contact pins from the connector
Insert blade holder with clamping pliers and MQS blade from front side though opening above contact cavity of connector housing (3).
This presses down the spring shackle at the contact pin (2).
A slight tug on the corresponding cable will pull the contact pin (2) out of the cavity of the plug.
Foil contacts must be unpinned at the same time. Tug on the foil while pressing down the spring to remove the foil.

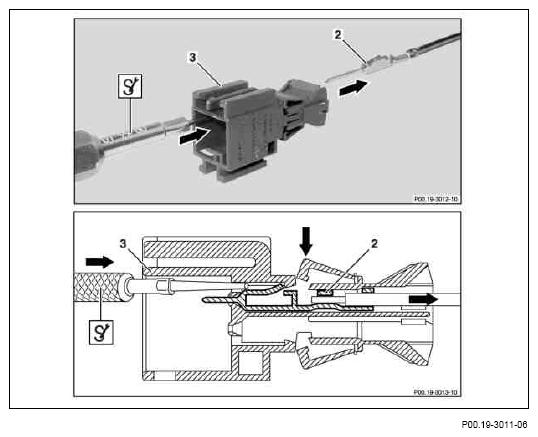

Fig 6: Pressing Down Spring Shackle At Contact Pin
Courtesy of MERCEDES-BENZ USA
